How to Reduce Stainless Steel Springback in Press Brake Bending?

A Professional Engineering Guide for Sheet Metal Fabricators, Press Brake Operators, and Tooling Engineers

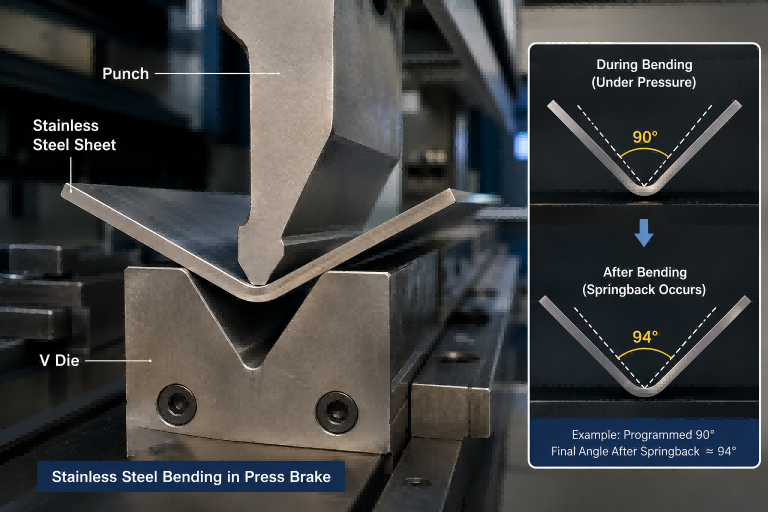

 Figure 1. Stainless steel bending process in a CNC press brake environment.

In stainless steel fabrication, springback is one of the most common causes of bend angle inaccuracy.
Compared with mild steel or aluminum, stainless steel stores more elastic energy during bending, causing the material to partially recover after the bending force is released.

For press brake operators and tooling engineers, uncontrolled springback can lead to repeated angle corrections, inconsistent parts, assembly problems, and reduced production efficiency.

In real sheet metal manufacturing environments, successful springback control is not achieved by machine tonnage alone. It depends on the combination of material behavior, V-die opening, punch radius, bending method, machine accuracy, and operator experience.

Why Stainless Steel Produces More Springback

The primary reason is the high yield strength and elasticity of stainless steel.

During press brake bending, the outer layer of the sheet undergoes tensile stress while the inner layer experiences compression. After unloading, part of the elastic deformation recovers naturally, causing the bend angle to open slightly.

Among common stainless steel grades:

• 201 stainless steel usually produces larger springback
• 304 stainless steel is more stable but still significant
• High-strength stainless steel requires larger compensation values

In practical fabrication workshops, operators often notice that two different batches of the same material thickness can produce different springback results. This is why experienced operators always perform test bends before mass production.

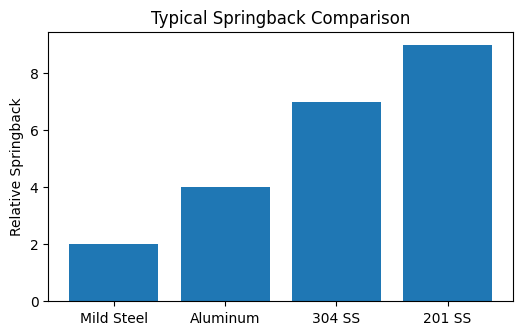

 Figure 2. Relative springback tendency in common sheet metal materials.

How V-Die Opening Affects Springback

V-die selection is one of the most important factors affecting stainless steel springback.

A larger V-opening creates a larger inside bend radius. This reduces plastic deformation and increases elastic recovery after unloading.

General production logic:

• Large V-opening → Larger radius → More springback
• Smaller V-opening → Smaller radius → Less springback

However, using an excessively small V-opening may create:

• Surface marking
• Material cracking
• Excessive tonnage demand
• Accelerated tooling wear

In stainless steel bending applications, many tooling manufacturers recommend selecting a V-opening approximately 6× to 8× the material thickness depending on radius requirements and surface quality.

Air Bending vs Bottoming

Air bending is currently the most widely used bending method in modern CNC press brake production because it offers flexible angle control and lower tooling requirements.

However, air bending also produces larger springback compared with bottoming.

Bottoming forces the material deeper into the die, reducing elastic recovery and improving angle consistency. This method is commonly used for high-precision stainless steel parts with strict tolerance requirements.

In actual manufacturing environments, most factories balance production speed and accuracy by combining:

• Air bending for standard production
• Bottoming for precision parts
• Angle compensation for repeatability

Practical Methods Used by Fabricators to Reduce Springback

· Use angle overbending compensation in the CNC controller.

· Avoid oversized V-die openings for thin stainless steel sheets.

· Maintain consistent material suppliers and batches.

· Use crowning systems on long workpieces to maintain angle consistency.

· Perform sample bends before mass production.

· Regularly inspect punch and die wear conditions.

Related Engineering Tools

Conclusion

Springback is a natural behavior in stainless steel bending, especially in air bending applications.
Accurate springback control requires not only machine precision, but also deep understanding of tooling geometry, material properties, and practical production experience.

For modern sheet metal fabrication companies, mastering springback compensation is essential for achieving stable angle accuracy, reducing scrap rates, and improving production efficiency.
