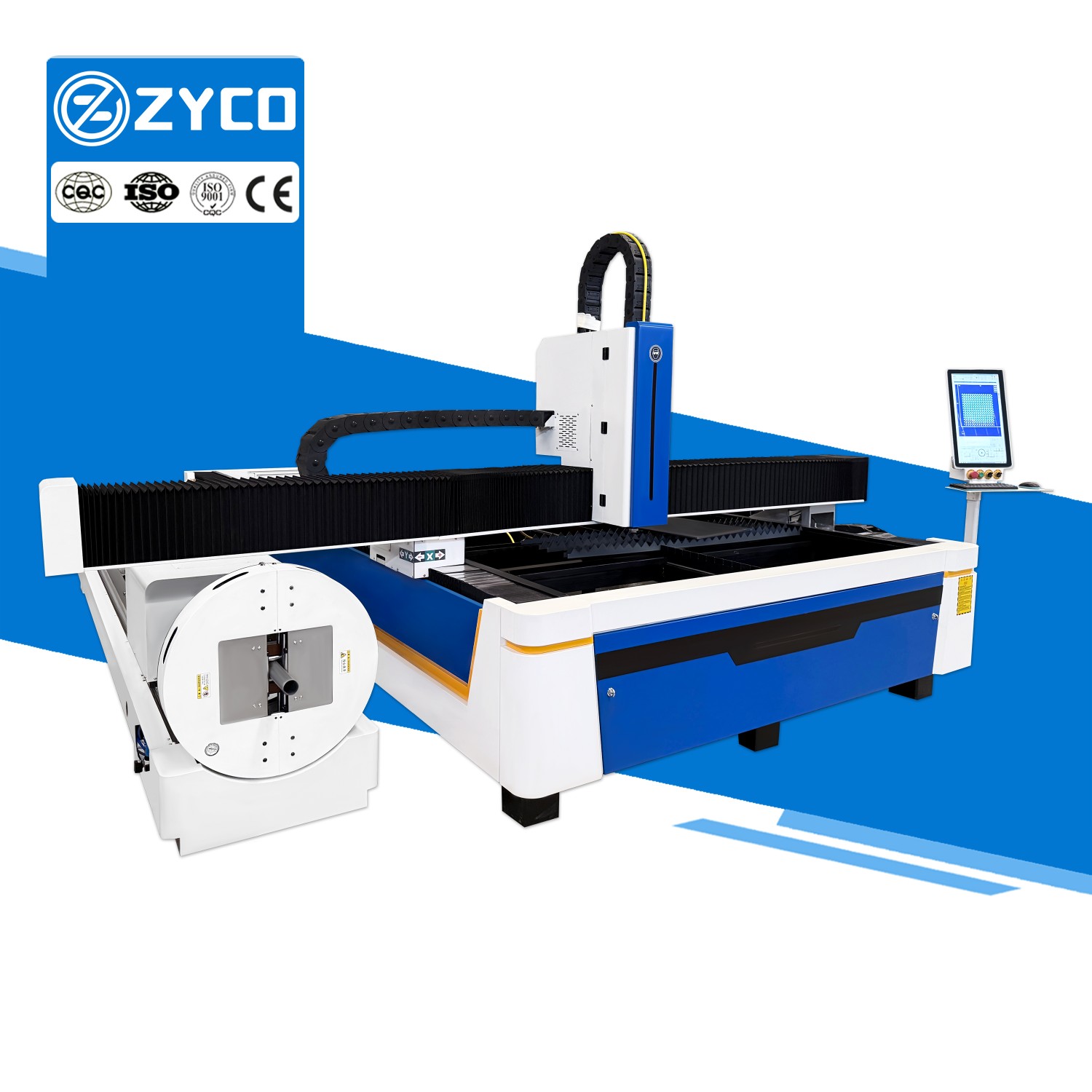

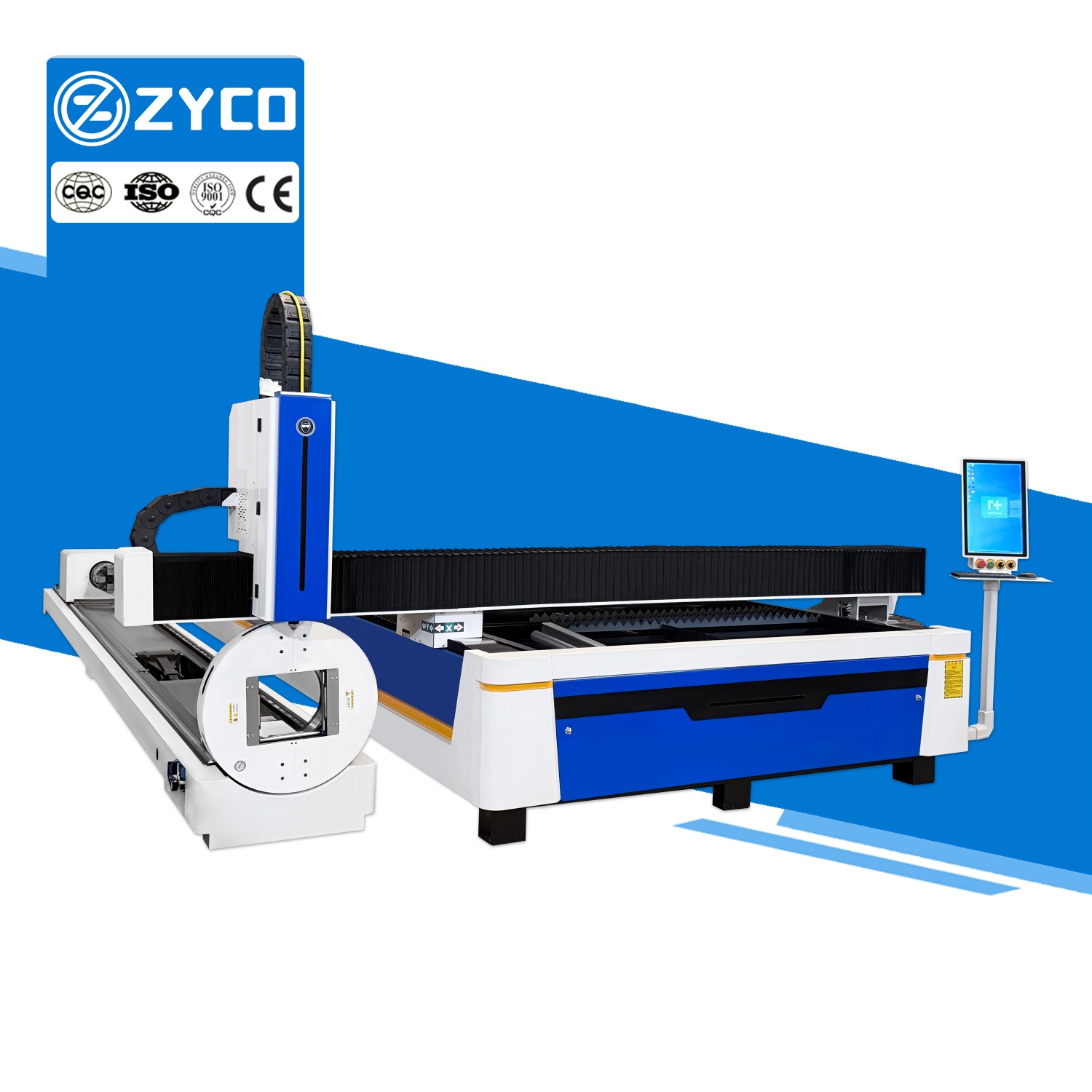

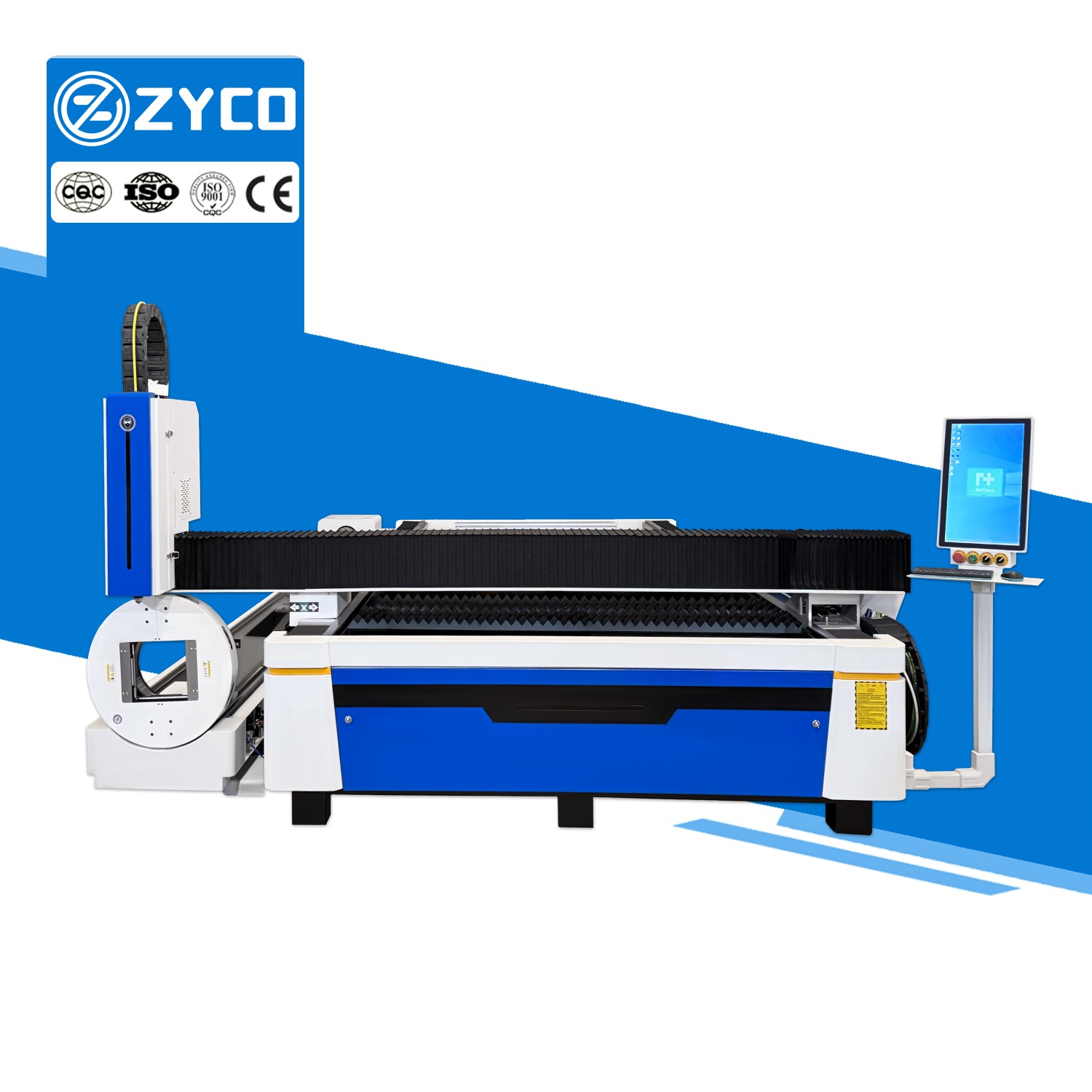

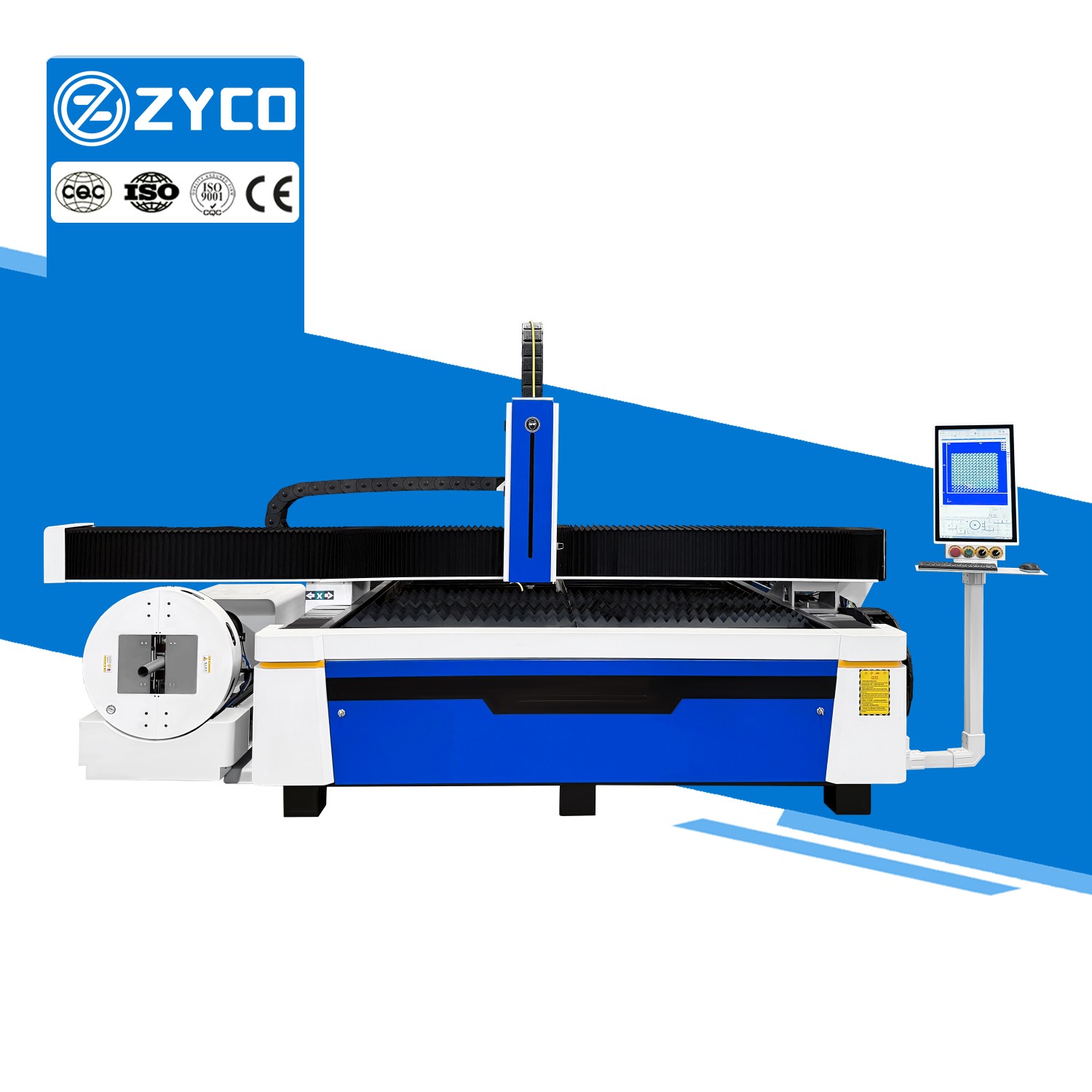

ZYCO Metal Plate and Tube Fiber Laser Cutting Machine Cnc Sheet Metal Fabrication Laser Cutting Machine

ZYCO Metal Plate and Tube Fiber Laser Cutting Machine Cnc Sheet Metal Fabrication Laser Cutting Machine

The 3015 Fiber Laser Sheet and Tube Cutting Machine is a premium model developed to meet the specific needs of the sheet metal processing industry; it is equipped with a 3000W laser source from a strategic partner. By utilizing key components of globally recognized quality and leveraging over a decade of experience in laser equipment manufacturing, this machine became an instant hit upon its market launch.

Order(MOQ) :
1
Product Origin :
Nanjing,Jiangsu,China
Weight :
3000kg
Warranty time :
2 years
Automation :
Automatic
Key selling points :
High precision, high speed, save material, save labor

Inquire Now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

ZYCO

1. Eliminates the need to purchase separate machines for sheets and tubes, thereby reducing equipment investment and factory floor space requirements.

2. Supports automatic focusing, edge finding, clamping, and rotary tube cutting, enhancing efficiency and simplifying manual operation.

3. Capable of processing various metal materials and tube specifications, offering flexibility for diverse production needs.

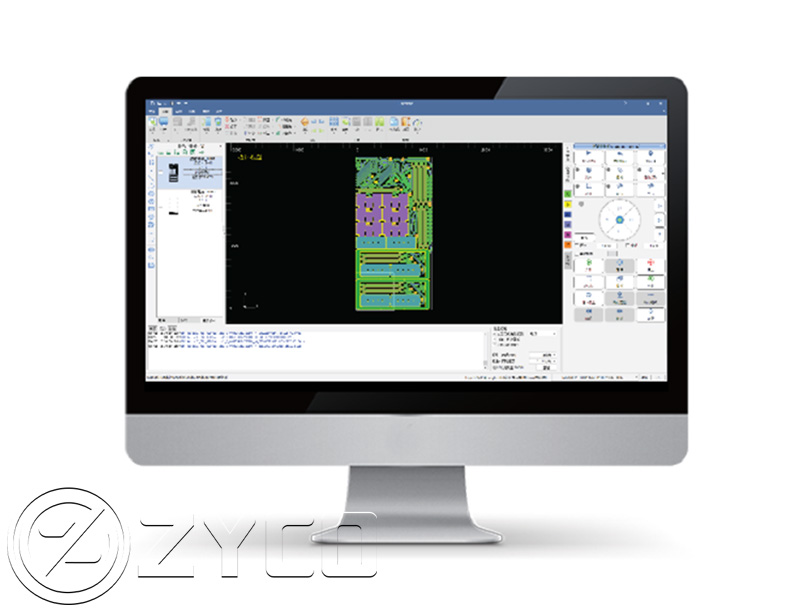

Control system

Provides a comprehensive motion control solution for the sheet metal cutting industry, integrating height-following control, laser cutting process management, standard nesting functions, and laser processing control.

Compatible with various machine configurations, including single-table and shuttle-table models.

Widely used in industries such as aerospace, signage and advertising, kitchenware and lighting, electrical appliances and cabinets, metal furniture, and general sheet metal fabrication.

View More +

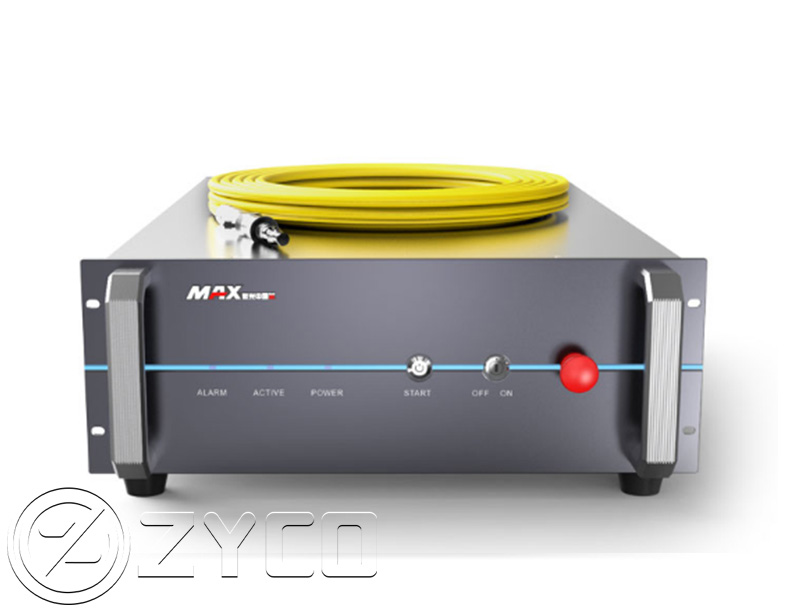

Max Laser Source

Our fiber laser cutting machines utilize industry-leading Raycus laser sources, known for their stable performance and reliable service life (refer to the laser manual for component longevity details), ensuring overall equipment quality.

Delivers exceptional beam quality, resulting in finer cutting lines, higher operational efficiency, and superior processing quality.

Operates within a fully enclosed, constant-temperature environment to ensure maximum stability and reliability.

View More +

RAYTOOLS Cutting Head

Features versatile interface options, allowing compatibility with a wide range of mainstream fiber laser sources.

Incorporates optimized optical and airflow designs; it is lightweight, compact, and easy to use, while the integrated height sensor significantly improves cutting quality and efficiency.

Configurations vary based on power output; the images provided are for reference only.

View More +

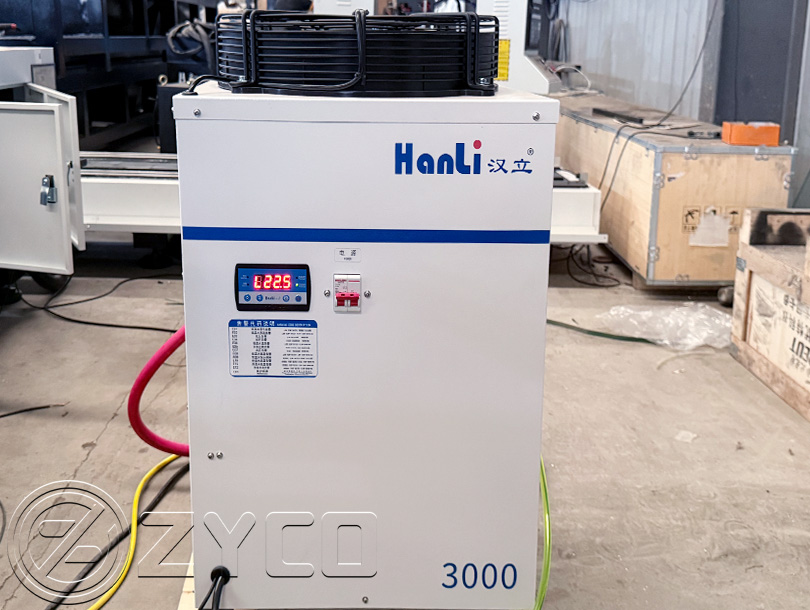

Water chiller

Equipped with a high-quality stainless steel circulating pump, offering high flow rates, high lift, low noise, and a long service life.

Features a computer-based control system with fully automatic CPU control, ensuring simple and intuitive operation.

Includes an automatic fault diagnosis function that displays error codes directly on the screen, enabling users to quickly resolve issues and prevent damage to components or equipment.

View More +

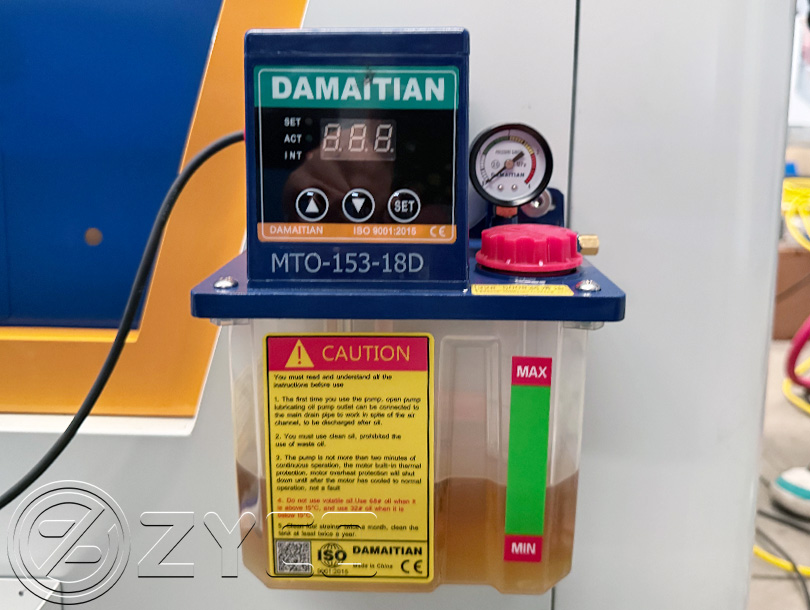

Fully Automatic Lubrication Pump

Delivers lubricant precisely according to set dosages, not only saving on lubricant costs but also preventing wear caused by under-lubrication and contamination resulting from over-lubrication.

Relieves workers from the burden of routine manual lubrication and maintenance while minimizing production losses associated with maintenance-related downtime.

Continuously supplies fresh lubricant to flush out contaminants and old grease generated during operation, significantly extending the service life of critical moving parts such as bearings, guide rails, and gear racks.

View More +

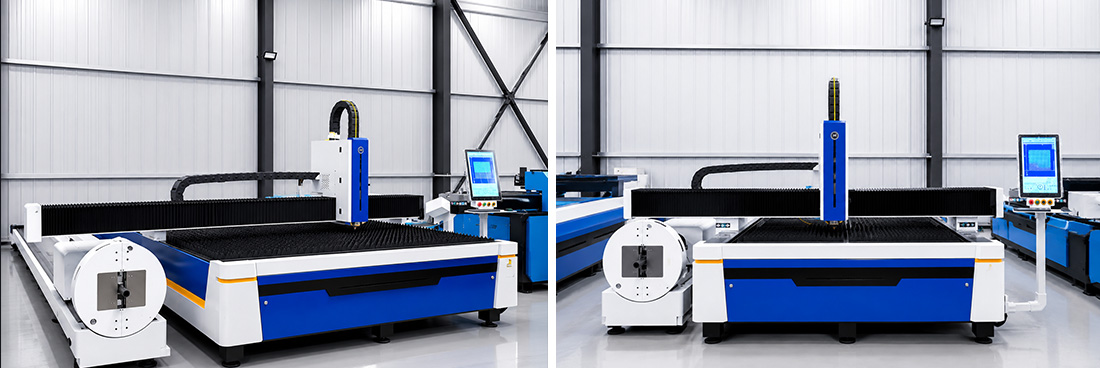

Machine Display

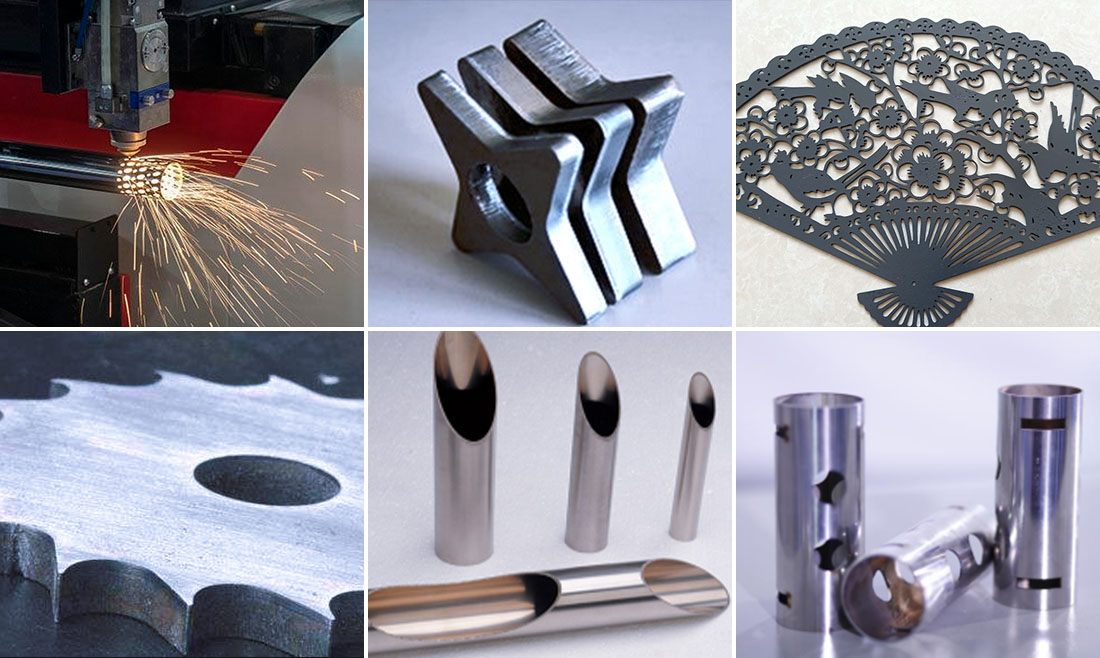

Cutting Result

Product Parameters

	MFMC-3000 (100 μm) Data slicing
Material Type	Thickness（mm）	Speed（m/min）	Focal position	Cutting height（mm）	Gas	Nozzle type	Gas pressure（bar）	Laser power（W）	Cutting frequency（Hz）	Duty cycle（%）	Cutting quality
Q235B	4	3.3~3.5	4.5~5.5	0.8	O2	Double-layer：1.2	0.6~0.9	3000	5000	100	Glossy finish
	6	2.3~2.5	4.5~5.5	0.8	O2	Double-layer：1.2	0.6~0.9	3000	5000	100
	8	2.1~2.2	4.5~5.5	0.8	O2	Double-layer：1.2	0.6~0.9	3000	5000	100
	10	1.5~1.7	2~3	1.5	O2	Double-layer：3.0	0.6~0.9	2200~2400	5000	100	Matte finish
	12	1.2~1.4	2~3	1.5	O2	Double-layer：3.0	0.6~0.9	2200~2400	5000	100
	14	1~1.1	2~3	1.5	O2	Double-layer：4.0	0.6~0.9	2200~2400	5000	100
	16	0.85~0.9	2~3	1.5	O2	Double-layer：4.0	0.6~0.9	2200~2400	5000	100
	18	0.7~0.75	2~3	1.5	O2	Double-layer：4.0	0.6~0.9	2200~2400	5000	100
	20	0.6~0.65	2~3.5	1.5	O2	Double-layer：4.0	0.6~0.9	2200~2400	5000	100
	22	0.5~0.55	2~3.5	1.5	O2	Double-layer：4.0	0.6~0.9	2200~2400	5000	100
	25	0.45~0.5	2~3.5	1.5	O2	Double-layer：5.0	0.6~0.9	2200~2500	5000	100
SUS304	1	35~37	0~1	0.5	N2	Single-layer：1.0/1.2/1.5	12~16	3000	5000	100	Residue-free
	2	13~15	-1.5~2	0.5	N2	Single-layer：1.5/2.0	12~16	3000	5000	100
	3	7~8	-2.5~3	0.5	N2	Single-layer：2.0/2.5/3.0	16~20	3000	5000	100
	4	4.5~5.5	-3.5~4	0.5	N2	Single-layer：3.0	16~20	3000	5000	100
	6	1.7~1.9	-5~5.5	0.5	N2	Single-layer：3.5/4.0	16~20	3000	5000	100
	8	0.8~1.0	-6~7	0.5	N2	Single-layer：4.0	16~20	3000	5000	100
	10	0.6~0.7	-7.5~-8.5	0.5	N2	Single-layer：4.0	16~20	3000	5000	100	Minimal residue
AL（6061）	1	30~33	-0.5~1	0.5	N2	Single-layer：1.0/1.2/1.5	12~16	3000	5000	100
	2	10~12	-1~1.5	0.5	N2	Single-layer：1.5/2.0	12~16	3000	5000	100
	3	5.5~5.9	-2.5~3	0.5	N2	Single-layer：2.0/2.5/3.0	16~20	3000	5000	100
	4	2.8~3.2	-3.5~4	0.5	N2	Single-layer：3.0	16~20	3000	5000	100
	6	0.7~0.8	-5~5.5	0.5	N2	Single-layer：3.5/4.0	16~20	3000	5000	100
	8	0.5~0.6	-6~7	0.5	N2	Single-layer：4.0	16~20	3000	5000	100
Brass	1
	2
	3	4.5~5	-2~2.5	0.5	N2	Single-layer：2.0/2.5/3.0	16~20	3000	5000	100
	4	3~3.5	-3~3.5	0.5	N2	Single-layer：3.0	16~20	3000	5000	100
	5
	6	1~1.2	-5~5.5	0.5	N2	Single-layer：3.5/4.0	16~20	3000	5000	100
	8

Partners

texchange table laser cutting machine

Customer photos

Certificate of Honor

FAQ

Q: How to get a accurate quotation from us?

A: Please provide us the details of material, max thickness and max width.

Q: Can you do OEM service?

A: Yes, we can. your design is accepted , your own logo can be used on the machine.

Q: What's the shipping cost from china to your country?

A: We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.

Q: Do you accept LC payment?

A: Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable.

Q: How to operate this machine?

A: Video line of our factory or we send you the video directly.

Q: What about commissioning service?

A: We can offer commissioning service, the buyer need to afford plane tickets.

Q: Do you offer teaching & training?

A: Training at supplier's plant.
