Cnc fiber laser cutting machine for iron steel aluminum copper plate sheet

Cnc fiber laser cutting machine for iron steel aluminum copper plate sheet

This machine utilizes a fully enclosed fiber laser cutting system, integrated with a highly efficient exchange table and safety devices. Its 15-second rapid switching technology enables seamless dual-station integration, enabling parallel loading and processing, effectively increasing the machine's overall production capacity. Its modular design significantly reduces production cycle time and optimizes time utilization within the processing flow while ensuring operational safety.

Order(MOQ) :
1
Product Origin :
Nanjing,Jiangsu,China
Weight :
3000kg
Warranty time :
2 years
Automation :
Automatic
Key selling points :
High precision, high speed, save material, save labor

Inquire Now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

ZYCO

1. This product features a hollow fish-scale composite structure design, significantly enhancing fire safety.

2. The body undergoes a high-temperature annealing process, combined with high-speed sandblasting and stress relief technology, ensuring long-term deformation resistance and a service life of over 20 years.

3. The device offers exceptional operating speed, excellent dynamic response, and rapid acceleration.

Intelligent Control System

Intelligent control software developed specifically for domestic fiber laser cutting machines.

Integrated design ensures quick installation and intuitive operation.

Supports intelligent power-speed matching, independently adjustable feed rates, and a built-in library of extensive cutting process parameters for one-click parameter adjustment.

View More +

Nickel alloy plate laser cutting machine

Automatic Lubrication System

A time-triggered automatic lubrication device accurately calculates the machine's operating time and injects lubricant at a fixed time and volume, effectively reducing mechanical wear and significantly extending the life of core components.

View More +

Stainless steel plate laser cutting machine

Intelligent Cutting Head

Equipped with a fully automatic dynamic focus system, it senses material thickness in real time and quickly adjusts the focus.

Integrated with multiple anti-collision sensors.

Supports multi-focus rapid switching technology, significantly improving processing efficiency and cutting quality.

View More +

Cooling System

The intelligent chiller features real-time temperature monitoring, circulation flow detection, and water level warning functions, providing triple safety protection mechanisms to ensure stable operation.

View More +

Highly Stable Laser Source

Utilizing BPP constant output technology, it maintains excellent beam quality and focusing performance across the entire power range.

With nanometer-level precision control capability, the ultra-fine light spot can achieve hair-level cutting, and with kilowatt-level power output, it combines ultimate precision with efficient production.

View More +

Internal Structure Display

For more detailed specifications, please don't hesitate to contact us.

Bed welding structure

Original machine tool lubrication system

--The precision of the machine tool comes from the gear rack and linear guide.

--Gear rack: Determine the precision.

--Linear guide: Determine the direction.

Generally, the conventional oiling of machine tool manufacturers is once every 4 hours. There is no loop system in the oil circuit, and the oil is easy to overflov and drip onto the plate, affecting the cutting effect.However, our original and improved loop system can oil once every half an hour,shorten the oiling time, increase the oiling frequency, increase the number ofoiling times for gear racks and linear quides, reduce the wear of racks and guides, improve the precision, and extend the service life of the machine tool.

Product Parameters

1. Stainless steel cutting process parameters			Cutting head collimator focal length (mm): 100 (1kw-/15kw) Cutting head focusing lens focal length (mm): 125 (≤2KW); 150 (3KW, 4KW); 200 (≥6KW)
Cutting Laser Power/Speed (m/min (w) /Board Thickness (mn)	1000	2000	3000	4000	6000	8000	10000	12000	15000
1	20-22	45-50	60-70	40-45	45-50	47-55	50-55	54-58	60-65
2	6.5-7.0	13-15	22-27	20-25	30-35	34-39	39-42	41-46	44-49
3	2.5-3.0	5.0-6.0	8.0-10	11-13	17-20	21-25	23-29	30-33	32-37
4	1.2-1.4	3-3.5	6.0~70	6.5-7	13-15	18-21	19-23	22-26	24-28
6		0.9-1.2	2.1-2.6	2.5-3	6-6.5	7-8.5	10-12	16	16-18
8		0.4-0.6	0.85-1.2	1.6-1.8	3.8-4.2	4.1-4.8	7-7.5	10	12-14
10		0.2-0.5	0.6~0.8	0.8-0.9	1.6-2.1	2.8-3.2	5-5.8	6-7	7-9
12			0.5-0.6	0.7-0.75	1.1-1.4	1.6-2.0	3.3-3.7	4-4.5	4.5-5
14				0.5-0.55	0.9-1.1	1.3-1.55	1.7-2.1	2.1-2.8	2.5-3.1
16					0.6-0.8	1.1-1.3	1.6-1.7	1.8-2.3	2-2.5
18					0.5-0.65	0.7-0.82	1.1-1.25	1.2-1.4	1.65-1.8
20					0.4-0.5	0.65-0.75	0.8-1.1	1.3-1.6	1.4-1.8
25						0.4-0.5	0.45-0.5	0.55-0.65	0.6-0.7
30						0.3-0.33	0.35-0.4	0.45-0.55	0.45-0.6
35							0.22-0.25	0.3-0.45	0.3-0.4
40								0.25-0.34	0.2-0.35
45								0.16-0.23	0.16-025
50									0.12-02
Note: The green fonts are stable cutting data under most production conditions; the blue fonts are cutting data that may be achieved under some better production conditions; the red fonts are extreme cutting data achieved under laboratory conditions.

2. Carbon steel cutting process parameters			Cutting head collimator focal length (mm): 100 (1kw-/15kw) Cutting head focusing lens focal length (mm): 125 (≤2KW); 150 (3KW, 4KW); 200 (≥=6KW)
Cutting Laser power/Speed (m/min(w) /Board thickness (mm)	1000	2000		3000	4000	6000	8000	10000	12000	15000
1	22-25	42-47		48-55	42-45	45-48	46-52	49-55	50-58	55-60
2	5-6	5-6		5-6	18-21	29-35	32-37	34-39	35-41	36-42
3	2.8-3.0	4.0-4.5		3.5-4.3	4-4.5	4-5	4-5	4-5	4-5	26-31
4	2.2-2.4	3.6-4.0		3.2-4	3.5-4	3.5-4	3.5-4	3.5-4	3.5-4	19-22
6	1.3-1.6	2.2-2.7		2-2.5	2.4-2.7	2.8-3.3	2.8-3.1	2.8-3.2	2.8-3.3	14-17
8	1.0-1.2	1.4-1.8		1.8-2.4	2-2.3	2.1-2.4	2.1-2.45	2.1-2.45	2.1-2.6	2.1-2.6
10	0.8-1.0	1.1-1.5		1.4-1.8	1.8-2	2-2.2	2.0-2.3	2.1-2.5	2.1-2.5	2.1-2.6
12		0.96-1.2		0.9-1.1	1.5-1.6	1.9-2.0	1.9-2.0	1.9-2.1	1.9-2.1	1.85-2.1
14		0.9-1.1		0.75-0.9	1.2-1.4	1.5-1.7	1.6-1.75	1.7-1.85	1.66-1.75	1.7-18
16		0.7-0.8		0.7-0.8	1-1.1	1.25-1.35	1.45-1.6	1.5-1.6	1.55-1.65	1.6-1.7
18		0.6-0.7		0.6-0.8	0.8-0.95	1.15-1.3	1.2-1.45	1.35-1.4	1.4-1.55	1.5-1.6
20		0.5-0.6		0.6-0.75	0.6-0.7	0.9-1.0	1.0-1.2	1.1-1.3	12-1.3-	1.4-1.5
25				0.5-0.55	0.45-0.55	0.5-0.55	0.5-0.6	0.65-0.7	0.65-0.7	0.8-1.0
30							0.3-0.35	0.4-0.42	0.4-0.45	0.64-0.8
35							0.25-0.3	0.37-0.38	0.25-0.28	0.4
40								0.25-0.26	0.2-0.26	0.32
45									0.18-0.22	0.25
50									0.15	0.18
Note: 1) The green font is the stable cutting data under most production conditions; the blue font is the cutting data that may be achieved under some better production conditions; the red font is the limit cutting data achieved under laboratory conditions. 2) The underlined data is the nitrogen cutting data.

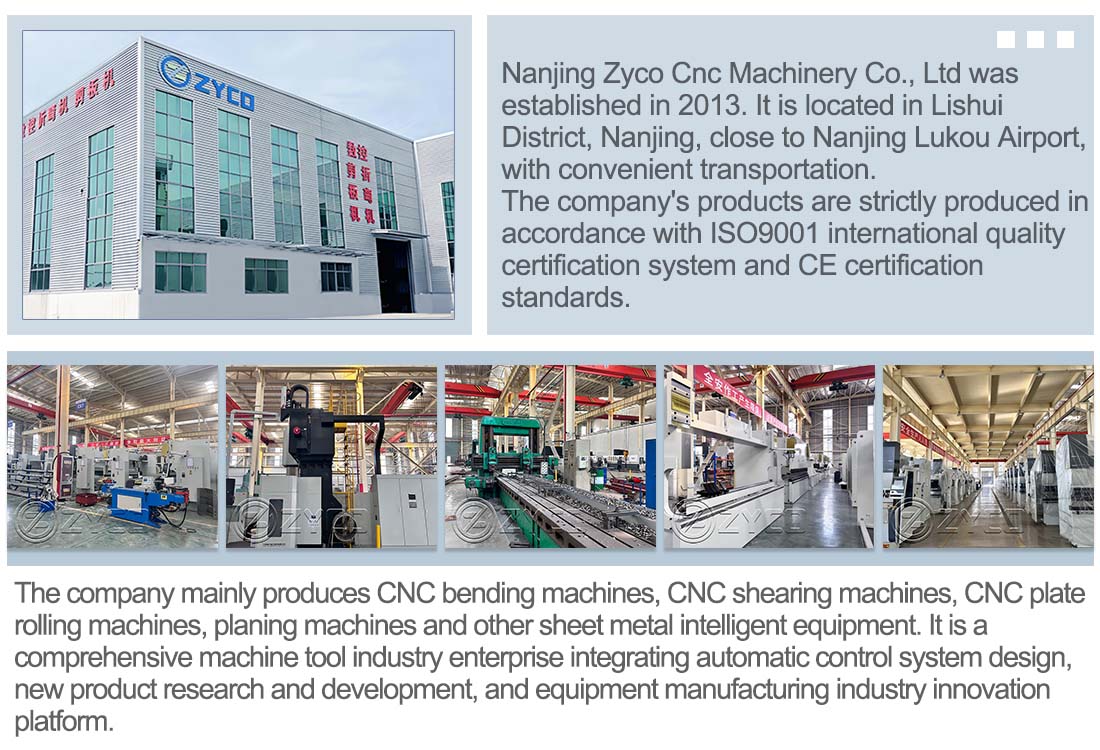

About Us

Why Choose Us

Partners

Customer photos

Certificate of Honor

FAQ

Q: How to get a accurate quotation from us?

A: Please provide us the details of material, max thickness and max width.

Q: Can you do OEM service?

A: Yes, we can. your design is accepted , your own logo can be used on the machine.

Q: What's the shipping cost from china to your country?

A: We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.

Q: Do you accept LC payment?

A: Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable.

Q: How to operate this machine?

A: Video line of our factory or we send you the video directly.

Q: What about commissioning service?

A: We can offer commissioning service, the buyer need to afford plane tickets.

Q: Do you offer teaching & training?

A: Training at supplier's plant.
