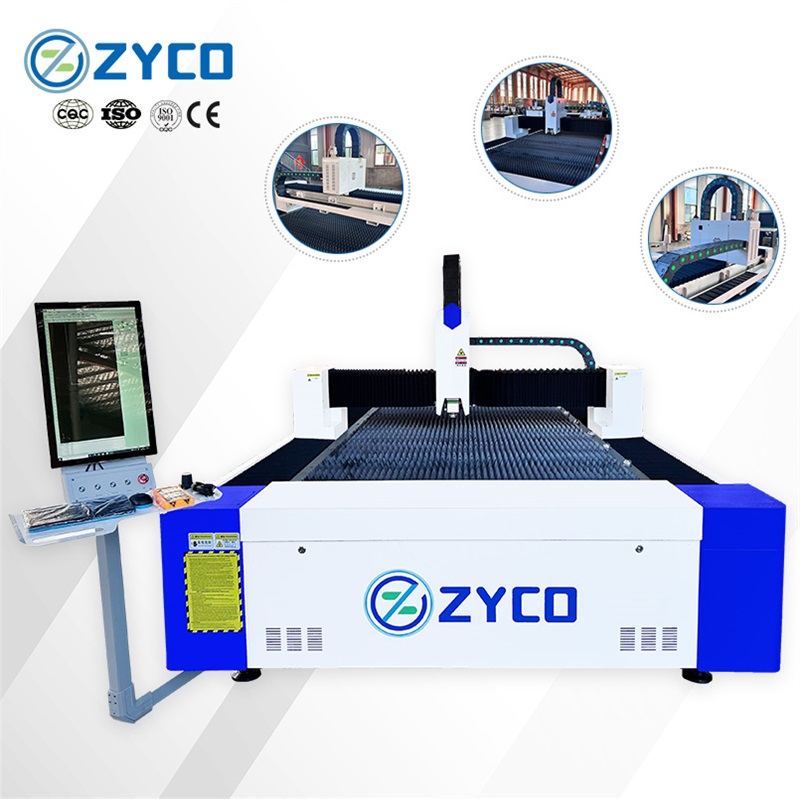

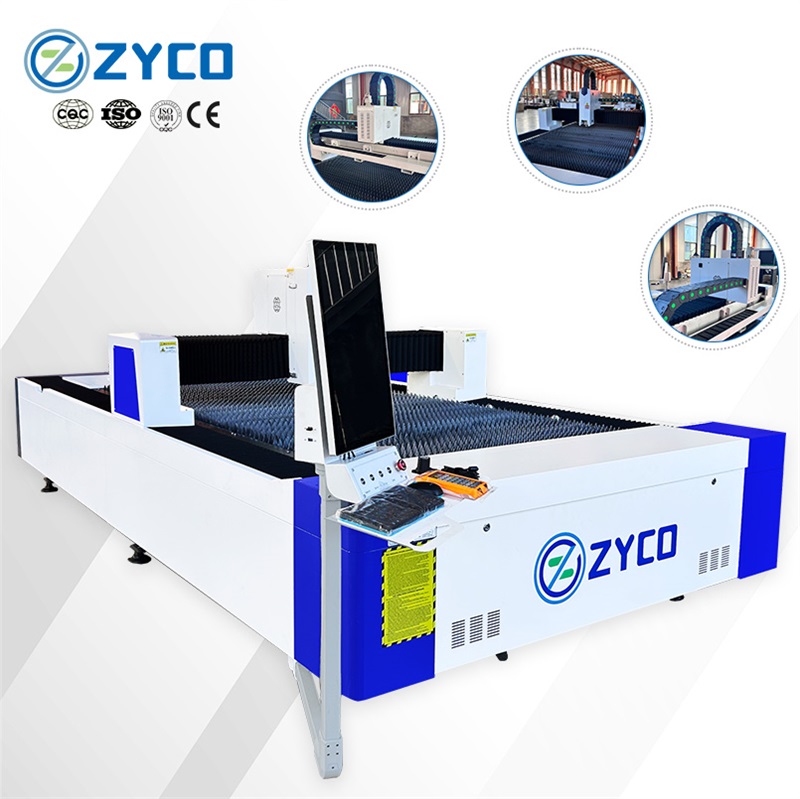

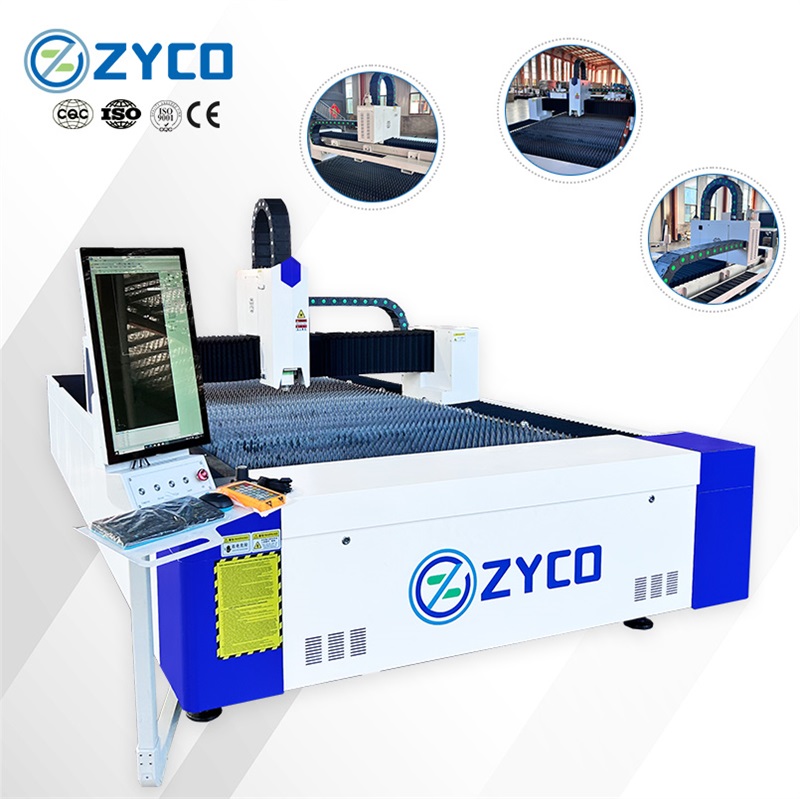

ZYCO 2000w 1-10000mm/min 2000*4000mm cnc Single platform laser cutting machines

The laser cutting machine has an advanced air circuit control system design and is equipped with imported pneumatic components to effectively reduce the cost of use. The use of domestic first-line brand accessories, such as Bochu system and Chuangxin laser, ensures the stability and high quality of the equipment.

Order(MOQ) :
1
Product Origin :
Nanjing,Jiangsu,China
Weight :
3000kg
Warranty time :
2 years
Automation :
Automatic
Key selling points :
High precision, high speed, save material, save labor

Inquire Now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

ZYCO

1. By combining the hollow design with the fish-scale pattern of the internal structure, the structure can improve the resistance to fire risks.

2. The entire frame undergoes a high-temperature annealing process, followed by high-speed sandblasting and stress release technology. This series of treatments effectively prevents possible deformation of the bed and ensures that it maintains good morphological stability after 20 years of use.

3. Our equipment exhibits high-speed operation, excellent power response and rapid acceleration performance.

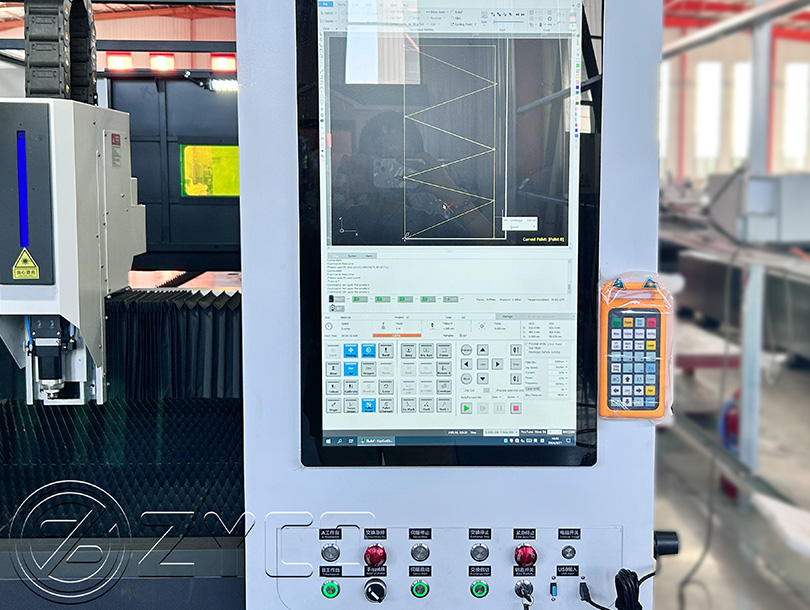

Control system

A professional fiber laser cutting software specially designed to meet the needs of China's fiber laser cutting machines.

It is easy to install, has a simplified calibration process, is comprehensive in functions, and supports flexible control of cutting speed by adjusting power.

The software allows users to independently set the imported linear cutting speed, and has a rich built-in cutting process database resource.

View More +

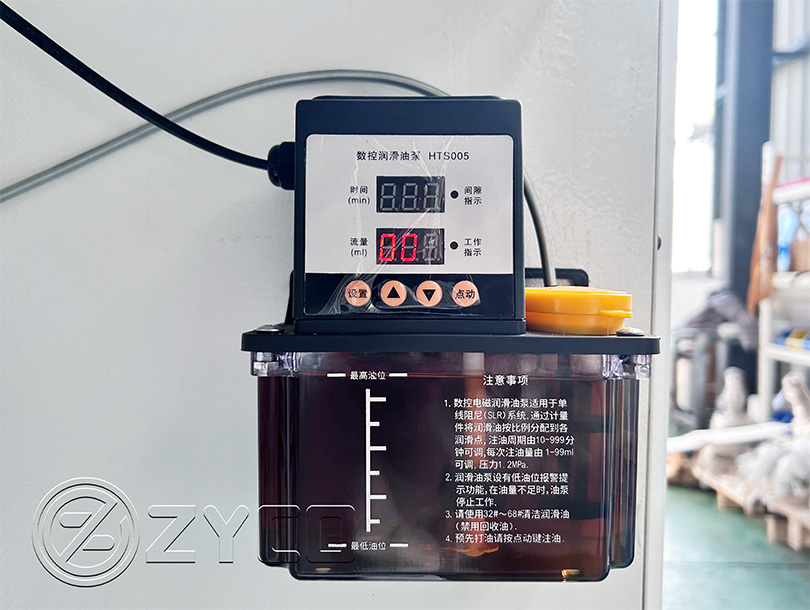

Automatic lubrication

The timed automatic lubrication mechanism can intelligently start and distribute lubricating oil according to the machine's operating time, achieving efficient maintenance and effectively extending the service life of mechanical parts.

View More +

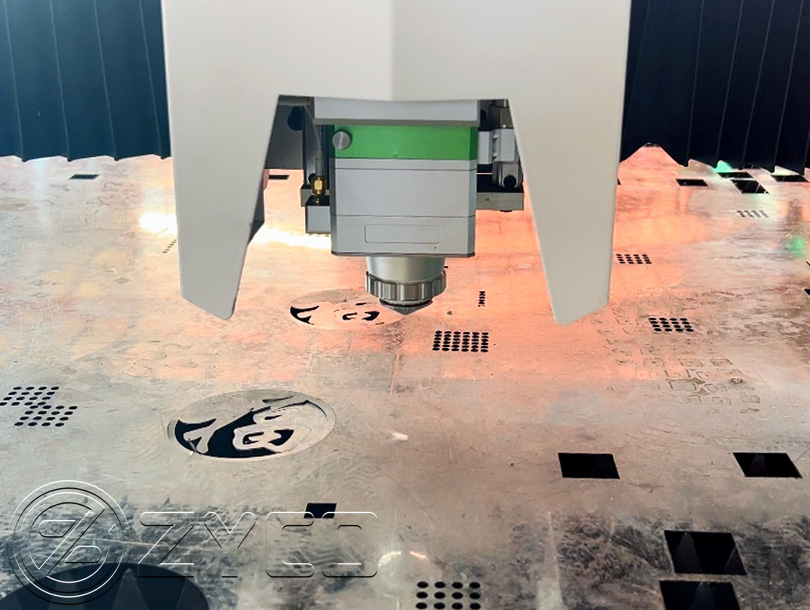

Cutting head

Laser cutting head with autofocus function, which can intelligently adjust the focus position according to the material thickness.

The cutting head is equipped with an anti-collision protection mechanism to improve operational safety.

Especially suitable for multi-focus cutting areas, it can significantly shorten the cutting time and improve the cutting quality.

View More +

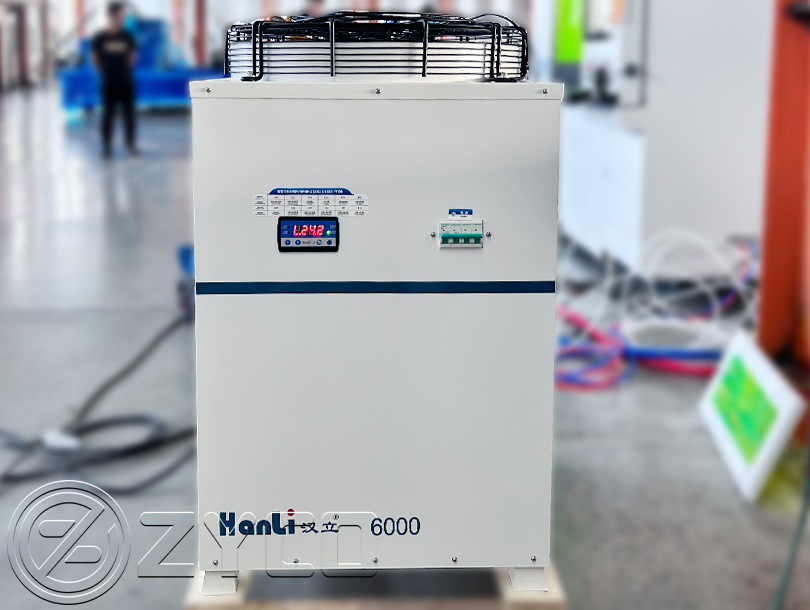

Water chiller

Equipped with over-temperature warning system to ensure equipment safety.

Equipped with flow monitoring protection to prevent malfunctions.

At the same time, it is equipped with water level monitoring and other multiple safety alarms to fully ensure operational safety.

View More +

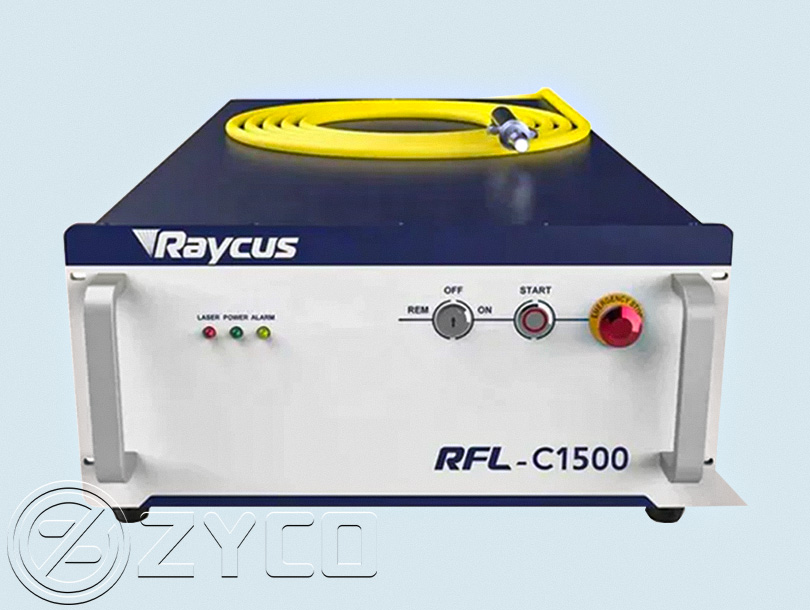

Laser generator

Our laser system maintains a stable BPP (beam parameter product) over the entire power range, ensuring excellent beam quality and fine spot size.

High-precision performance: The laser beam output by the laser generator has extremely high energy density and a very small divergence angle, which can achieve precise cutting in a small area, with a small cutting gap and excellent quality of the finished product.

High-efficiency operation: The laser generator provides a high-power laser beam, which greatly increases the cutting speed, shortens the production cycle, and significantly improves production efficiency.

View More +

Internal Structure Display

For more detailed specifications, please don't hesitate to contact us.

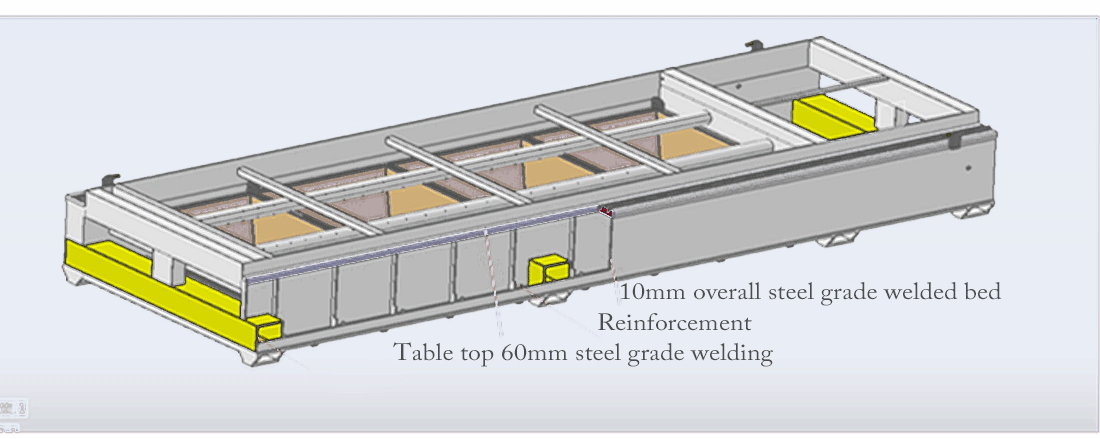

Bed welding structure

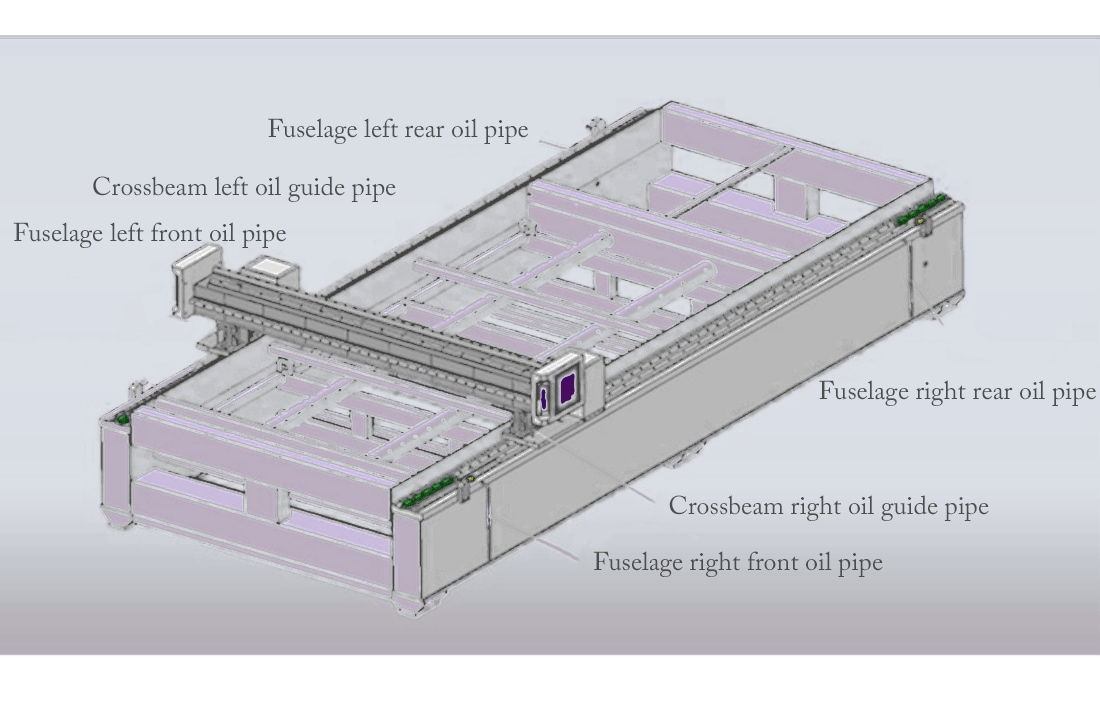

Original machine tool lubrication system

--The precision of the machine tool comes from the gear rack and linear guide.

--Gear rack: Determine the precision.

--Linear guide: Determine the direction.

Generally, the conventional oiling of machine tool manufacturers is once every 4 hours. There is no loop system in the oil circuit, and the oil is easy to overflov and drip onto the plate, affecting the cutting effect.However, our original and improved loop system can oil once every half an hour,shorten the oiling time, increase the oiling frequency, increase the number ofoiling times for gear racks and linear quides, reduce the wear of racks and guides, improve the precision, and extend the service life of the machine tool.

Product Parameters

1. Stainless steel cutting process parameters			Cutting head collimator focal length (mm): 100 (1kw-/15kw) Cutting head focusing lens focal length (mm): 125 (≤2KW); 150 (3KW, 4KW); 200 (≥6KW)
Cutting Laser Power/Speed (m/min (w) /Board Thickness (mn)	1000	2000	3000	4000	6000	8000	10000	12000	15000
1	20-22	45-50	60-70	40-45	45-50	47-55	50-55	54-58	60-65
2	6.5-7.0	13-15	22-27	20-25	30-35	34-39	39-42	41-46	44-49
3	2.5-3.0	5.0-6.0	8.0-10	11-13	17-20	21-25	23-29	30-33	32-37
4	1.2-1.4	3-3.5	6.0~70	6.5-7	13-15	18-21	19-23	22-26	24-28
6		0.9-1.2	2.1-2.6	2.5-3	6-6.5	7-8.5	10-12	16	16-18
8		0.4-0.6	0.85-1.2	1.6-1.8	3.8-4.2	4.1-4.8	7-7.5	10	12-14
10		0.2-0.5	0.6~0.8	0.8-0.9	1.6-2.1	2.8-3.2	5-5.8	6-7	7-9
12			0.5-0.6	0.7-0.75	1.1-1.4	1.6-2.0	3.3-3.7	4-4.5	4.5-5
14				0.5-0.55	0.9-1.1	1.3-1.55	1.7-2.1	2.1-2.8	2.5-3.1
16					0.6-0.8	1.1-1.3	1.6-1.7	1.8-2.3	2-2.5
18					0.5-0.65	0.7-0.82	1.1-1.25	1.2-1.4	1.65-1.8
20					0.4-0.5	0.65-0.75	0.8-1.1	1.3-1.6	1.4-1.8
25						0.4-0.5	0.45-0.5	0.55-0.65	0.6-0.7
30						0.3-0.33	0.35-0.4	0.45-0.55	0.45-0.6
35							0.22-0.25	0.3-0.45	0.3-0.4
40								0.25-0.34	0.2-0.35
45								0.16-0.23	0.16-025
50									0.12-02
Note: The green fonts are stable cutting data under most production conditions; the blue fonts are cutting data that may be achieved under some better production conditions; the red fonts are extreme cutting data achieved under laboratory conditions.

2. Carbon steel cutting process parameters			Cutting head collimator focal length (mm): 100 (1kw-/15kw) Cutting head focusing lens focal length (mm): 125 (≤2KW); 150 (3KW, 4KW); 200 (≥=6KW)
Cutting Laser power/Speed (m/min(w) /Board thickness (mm)	1000	2000		3000	4000	6000	8000	10000	12000	15000
1	22-25	42-47		48-55	42-45	45-48	46-52	49-55	50-58	55-60
2	5-6	5-6		5-6	18-21	29-35	32-37	34-39	35-41	36-42
3	2.8-3.0	4.0-4.5		3.5-4.3	4-4.5	4-5	4-5	4-5	4-5	26-31
4	2.2-2.4	3.6-4.0		3.2-4	3.5-4	3.5-4	3.5-4	3.5-4	3.5-4	19-22
6	1.3-1.6	2.2-2.7		2-2.5	2.4-2.7	2.8-3.3	2.8-3.1	2.8-3.2	2.8-3.3	14-17
8	1.0-1.2	1.4-1.8		1.8-2.4	2-2.3	2.1-2.4	2.1-2.45	2.1-2.45	2.1-2.6	2.1-2.6
10	0.8-1.0	1.1-1.5		1.4-1.8	1.8-2	2-2.2	2.0-2.3	2.1-2.5	2.1-2.5	2.1-2.6
12		0.96-1.2		0.9-1.1	1.5-1.6	1.9-2.0	1.9-2.0	1.9-2.1	1.9-2.1	1.85-2.1
14		0.9-1.1		0.75-0.9	1.2-1.4	1.5-1.7	1.6-1.75	1.7-1.85	1.66-1.75	1.7-18
16		0.7-0.8		0.7-0.8	1-1.1	1.25-1.35	1.45-1.6	1.5-1.6	1.55-1.65	1.6-1.7
18		0.6-0.7		0.6-0.8	0.8-0.95	1.15-1.3	1.2-1.45	1.35-1.4	1.4-1.55	1.5-1.6
20		0.5-0.6		0.6-0.75	0.6-0.7	0.9-1.0	1.0-1.2	1.1-1.3	12-1.3-	1.4-1.5
25				0.5-0.55	0.45-0.55	0.5-0.55	0.5-0.6	0.65-0.7	0.65-0.7	0.8-1.0
30							0.3-0.35	0.4-0.42	0.4-0.45	0.64-0.8
35							0.25-0.3	0.37-0.38	0.25-0.28	0.4
40								0.25-0.26	0.2-0.26	0.32
45									0.18-0.22	0.25
50									0.15	0.18
Note: 1) The green font is the stable cutting data under most production conditions; the blue font is the cutting data that may be achieved under some better production conditions; the red font is the limit cutting data achieved under laboratory conditions. 2) The underlined data is the nitrogen cutting data.

Partners

Customer photos

Certificate of Honor

FAQ

Q: What materials can this laser cutting machine cut?

A:This laser cutting machine is designed for processing a wide range of metal materials, including carbon steel, stainless steel, aluminum, brass, copper, and other metal sheets. The cutting performance depends on the material type, thickness, laser power, and cutting parameters.

This laser cutting machine is widely used in sheet metal fabrication, machinery manufacturing, automotive parts, electrical equipment, and other metal processing industries. If you are unsure whether this machine is suitable for your materials, our professional team can provide a suitable recommendation based on your production requirements.

Q: How thick can this laser cutting machine cut?

A:The cutting thickness of this laser cutting machine depends on the material being processed, laser power configuration, cutting speed, and auxiliary gas conditions.

Different metals such as stainless steel, carbon steel, and aluminum have different cutting performance. Before purchasing, it is recommended to confirm your commonly used materials and thickness range to ensure the machine can meet your production needs.

If you provide your material information and required cutting thickness, our engineers can help recommend the most suitable configuration for your application.

Q: What are the advantages of this laser cutting machine compared with traditional cutting equipment?

A:This laser cutting machine provides high cutting accuracy, fast processing speed, smooth cutting edges, and excellent material utilization compared with many traditional cutting methods.

Because it uses advanced CNC control technology and laser cutting technology, this machine can achieve precise cutting without direct contact with the material, reducing tool wear and improving production efficiency.

For manufacturers looking to improve processing quality and production capacity, this laser cutting machine is an efficient metal cutting solution.

Q: Is this laser cutting machine suitable for small workshops and large manufacturing factories?

A: Yes. This laser cutting machine can be used by both small metal processing workshops and large industrial manufacturers.

Its application range covers different production requirements, from daily sheet metal processing to continuous industrial manufacturing. The machine configuration can be selected according to your material type, production volume, and processing requirements.

If you are planning to upgrade your existing cutting equipment, our team can help analyze your production needs and recommend a suitable solution.

Q:What should I consider before buying this laser cutting machine?

A:Before purchasing this laser cutting machine, customers usually need to consider:

What materials will be processed?

What is the maximum cutting thickness?

What working size is required?

How many hours will the machine operate per day?

What cutting accuracy is needed?

What level of automation is expected?

Choosing the right laser cutting machine is not only about power but also about matching the machine with your actual production requirements.

If you share your application details, our professional team can help recommend the most suitable machine configuration.

Q: Can this laser cutting machine cut stainless steel and aluminum?

A:Yes. This laser cutting machine is suitable for cutting stainless steel, aluminum, carbon steel, and other metal materials.

For different materials, the cutting parameters need to be adjusted according to thickness, material characteristics, and production requirements to achieve better cutting quality and efficiency.

Our engineers can provide technical suggestions according to your actual materials and processing conditions.
