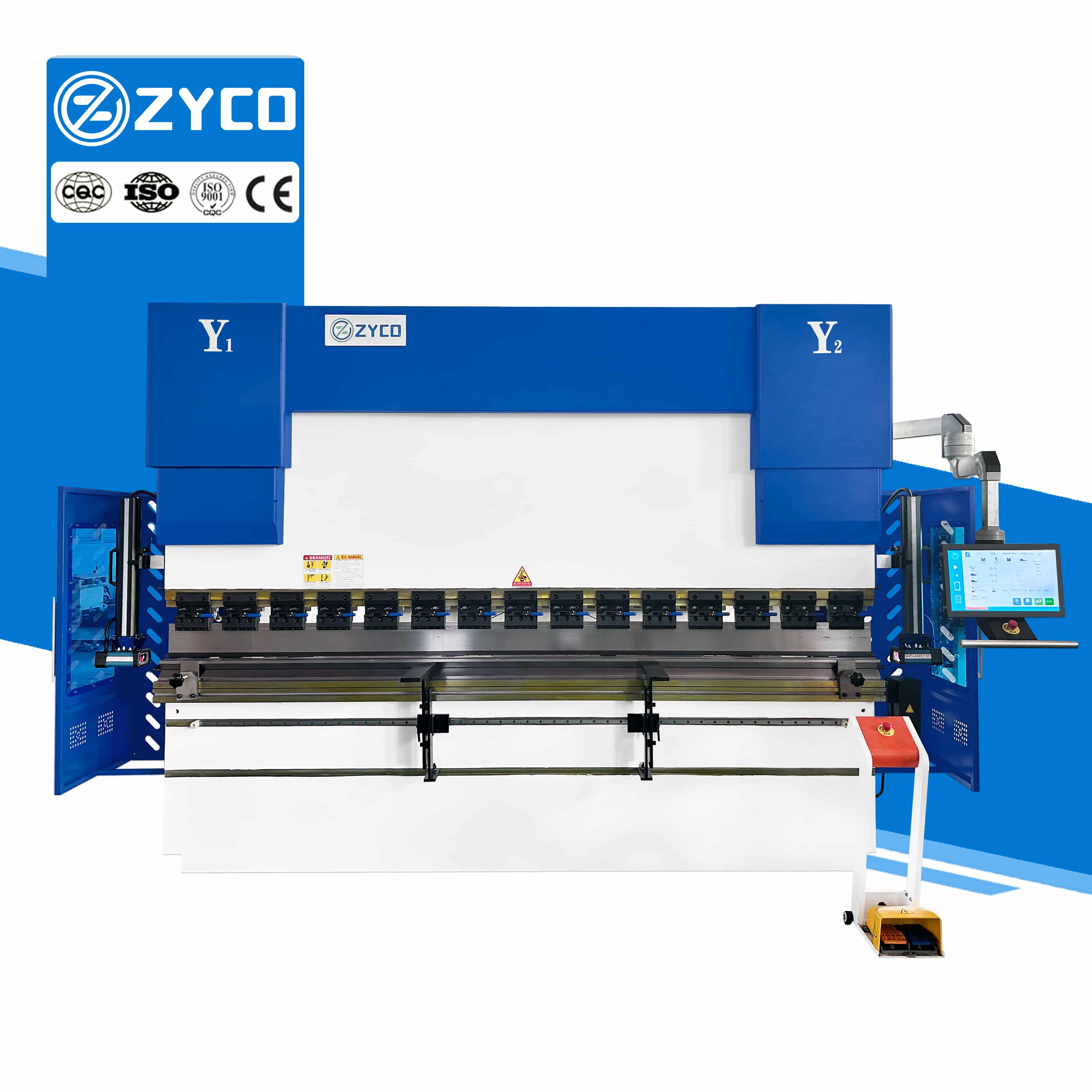

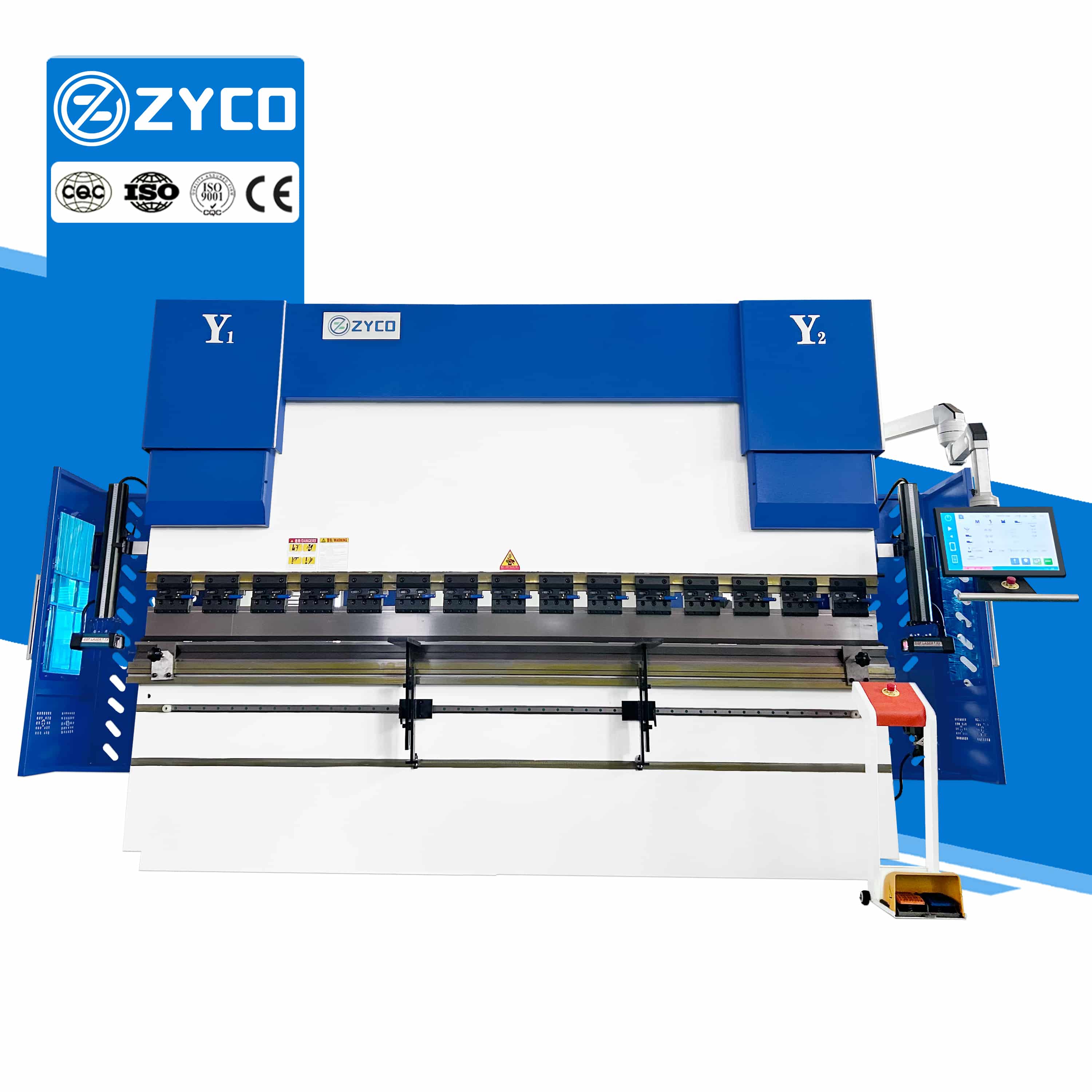

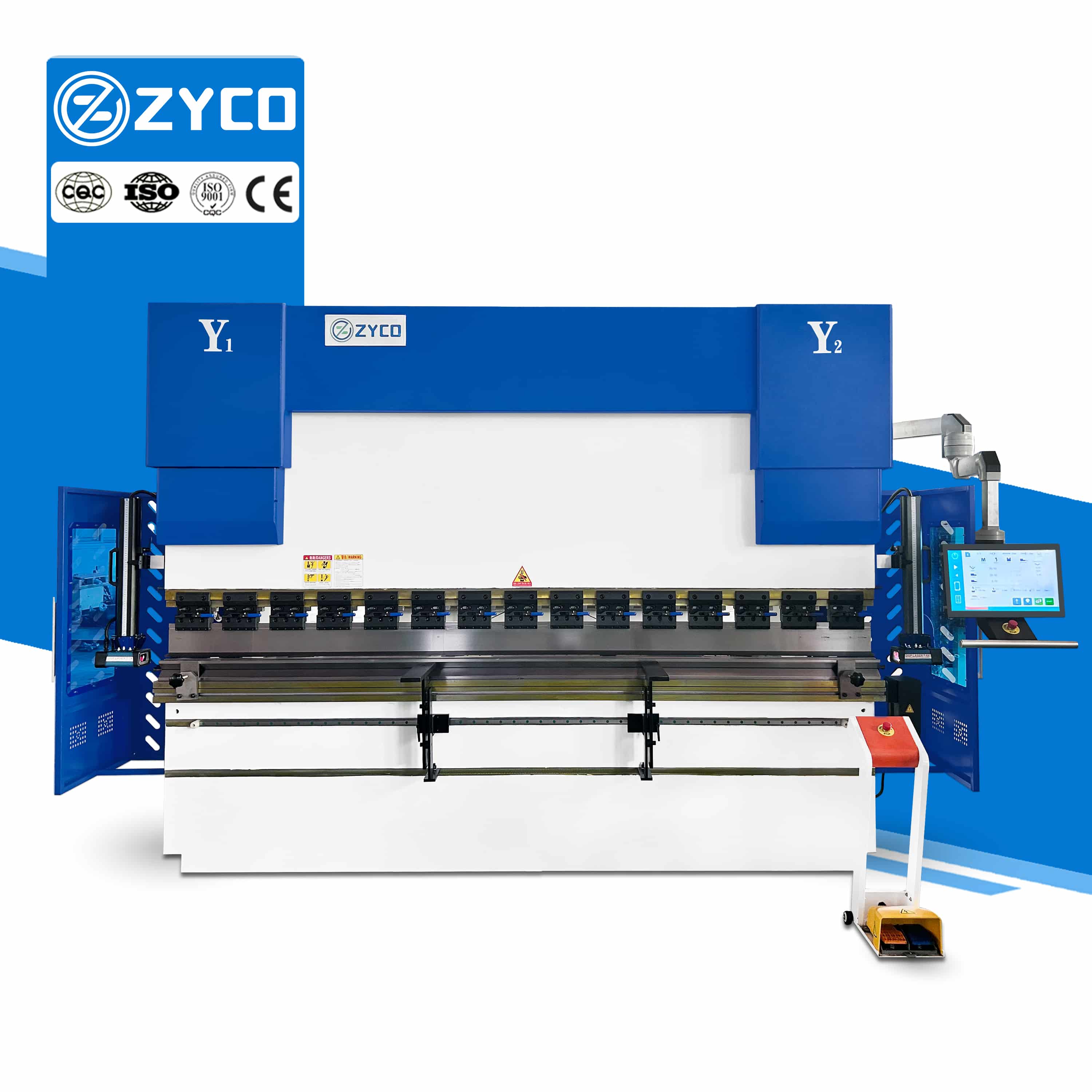

CNC Electro-Hydraulic Press Brake for Precision Sheet Metal Bending

DE68T electro-hydraulic CNC bending machine has become an ideal choice for the modern metal processing industry with its advantages of high precision, high efficiency, convenient operation and high safety.

Order(MOQ) :
1
Product Origin :
Nanjing,jiangsu,china
Weight :
7500kg
Warranty time :
2 years
Automation :
Automatic
Key selling points :
Competitive Price

Inquire Now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

ZYCO

1.High-precision control: The DE68T electro-hydraulic press brake uses an advanced CNC system, ensuring precise consistency in the angle and position of each bend.

2.Robust bending capability: This machine features a high bending force and a wide range of bending lengths. Whether handling thin or thick plates, the DE68T can perform the bending tasks with stability and efficiency.

3.User-friendly interface: The DE68T electro-hydraulic press brake is designed for easy operation, with an intuitive human-machine interface for seamless control.

Control system

Advanced Y-axis control algorithm, can control closed-loop and open-loop valves at the same time.

Equipped with 10.1-inch high-resolution true color TFT display.

Has mold, material, product library, supports servo or frequency conversion control.

View More +

Hydraulic system

The valve group produced by Rexroth of Germany is adopted, which has high precision and long service life.

The pressure of the hydraulic system can be flexibly adjusted according to actual requirements to ensure that the bending force requirements are met.

The hydraulic control system adopts electro-hydraulic servo synchronous design, with the smallest hydraulic cylinder spacing and extremely strong anti-eccentric load.

View More +

Main motor

ZYCO uses Siemens brand motors to ensure high quality and long-term durability.

Low operating noise, more energy-saving and efficient.

Brand guarantee and perfect after-sales service.

View More +

Back gauge

Imported ball screws and linear guides are used to replace traditional thread designs, effectively improving manufacturing accuracy and consistency.

The entire back gauge system is subjected to high-temperature tempering treatment to eliminate internal stress, improve the plasticity and toughness of the metal, and effectively avoid the loss of accuracy caused by frame deformation.

View More +

Grating scale

We use Italian GIVI brand grating ruler.

Provide higher accuracy and more sensitive response.

Excellent quality and strong durability.

View More +

Internal Structure Display

For more detailed specifications, please don't hesitate to contact us.

Hydraulic bending machine structure diagram

1 .Oil tank 2.Main motor 3.Grating Ruler 4.Electerical box 5.C type plate 6.Stopping finger 7.Back gauge

8.Servo motor 9.Wall panel 10.Valve 11.Hydraulic oil cylinder 12.Slider 13.CNC system 14.Quick Clamoing

15.Upper mold16.Lower mold 17.CNC automatic Crowning 18.Workbench support plate

Processing Workpiece Drawing

Sample display

This page doesn't support show parameter one by one. If other model, pls consult us.
Parameter		Unit	Value
Common Model			63Tx2500	100TX3200	160Tx3200	200Tx4000
Pressure		KN	630	1000	1600	2000
Bending Length		mm	2500	3200	3200	3200
Column Distance		mm	2030	2600	2600	2600
Max Opening Height		mm	E=440	E=480	E=500	E=520
Throat Depth		mm	D=250	D=320	D=320	D=320
Slide Stroke(Y-axis)		mm	170	200	200	220
Slide Moving Speed	No Loading	mm/s	200
	Pressing		12
	Returning		170
Main Motor Power		KW	5.5	7.5	11	15
Machine accuracy	Y slider repeat	mm	≤±0.02
	Y slider positioning	mm	≤±0.02
	X, R back gauge repeat positioning	mm	≤±0.05
Size (LWH)		m	3 × 1.8 × 2.5	3.8 × 1.85 x 2.6	3.8 × 1.85 × 2.65	3.8 × 1.9 × 2.65
Weigth		KG	5500	7500	9500	12000

Partners

Customer photos

Certificate of Honor

FAQ

Q: What materials can this press brake bend?

A: This press brake is suitable for bending various metal sheets, including carbon steel, stainless steel, aluminum, and other common metal materials. The actual bending capacity depends on material type, thickness, bending length, and required bending angle. If you are not sure which machine configuration is suitable for your material, you can contact our professional team. We will recommend the most suitable solution according to your processing requirements.

Q: How accurate is the bending performance of this press brake?

A: This press brake uses a precise CNC control system and stable hydraulic structure to ensure consistent bending angles and repeatable positioning accuracy. It is suitable for customers who require stable production quality and efficient metal fabrication. For higher precision requirements, our team can help recommend suitable CNC systems and configurations.

Q: What industries commonly use press brakes?

A: Press brakes are widely used in sheet metal fabrication, machinery manufacturing, electrical cabinets, elevators, automotive parts, construction equipment, and metal decoration industries.

They are ideal for manufacturers requiring accurate and efficient metal bending production.

Q: How do I choose the right press brake for my production?

A: The right press brake depends on several factors, including maximum material thickness, bending length, material type, production volume, and required bending accuracy. If you provide your workpiece information and bending requirements, our professional team can help select the most suitable machine configuration.

Q: What is the difference between a press brake and a traditional bending machine?

A: Compared with traditional bending machines, a press brake provides higher bending accuracy, better repeatability, and more efficient operation. The CNC control system allows operators to set bending parameters more precisely, helping reduce production errors and improve consistency.

Hot Tags : Hydraulic CNC Press Brake Machines hidraulic press machine for stainless steel plate 4 Axis aluminum profile bending machine 40-600t CNC bending machine Ordinary hydraulic plate bending machine DE68T electro-hydraulic CNC bending machine CHINA hydraulic press brake Large bending machine Small and medium-sized bending machine

Leave A Message

Are you interested in collaborating and working with us? Please don't hesitate to contact us.

RELATED PRODUCTS

Good quality 100 160tons CT8 cnc press brake for sheet metal processing hydraulic plate

The CT8 electro-hydraulic bending machine is an advanced CNC equipment with high precision and efficient production. It not only has a wide range of applications but is also very easy to operate. It is one of the most popular bending machines among sheet metal bending equipment.

CNC Electro-Hydraulic Press Brake for Precision Sheet Metal Bending

DE68T electro-hydraulic CNC bending machine has become an ideal choice for the modern metal processing industry with its advantages of high precision, high efficiency, convenient operation and high safety.

WC67K 40 80 100 200 Ton 3200mm E21 NC Sheet Metal Hydraulic Press Brake

The E21 bending machine is the most economical and affordable equipment among the torsion shaft bending machines. It is widely used in various metal processing industries. For novices, it is easier to master. The E21 adopts a computer controller and sensor. The operator only needs to input the required Y-axis depth value and X-axis size, and the machine will automatically run to the position we input. The operation is very simple and convenient.

80t100t 3200 Metal Steel Sheet CNC Press Brake 2500 Hydraulic Plate Bending

TP10S bending machine is a highly selective device among torsion shaft bending machines. It is widely used in various metal processing industries. It is easier for novices to master. It can achieve up to 4+1+2 axis CNC mode and can solve 80% of production solutions.

High quality WC67K E310P CNC hydraulic press brake plate bending machine

The E310P bending machine is a highly selective device among torsion shaft bending machines. It is widely used in various metal processing industries. For novices, it is easier to master. It uses a computer controller and sensor. The operator only needs to input the parameters such as the angle and length to be bent. The system will automatically calculate the bending path and control the bending machine to perform precise bending operations, reducing the difficulty of manual operation.

Factory price 500*3000mm Automatic Electric Cnc Hydraulic 360*n Sheet Metal Plate Press Brake

The pure electric press brake adopts electric drive, which is easy to operate, can realize automatic bending, and significantly improve work efficiency. Compared with the traditional hydraulic system, the electric system provides more precise control, achieves faster bending speed and higher processing accuracy. In addition, the pure electric bending machine consumes almost no electricity in standby mode, reducing overall energy consumption.

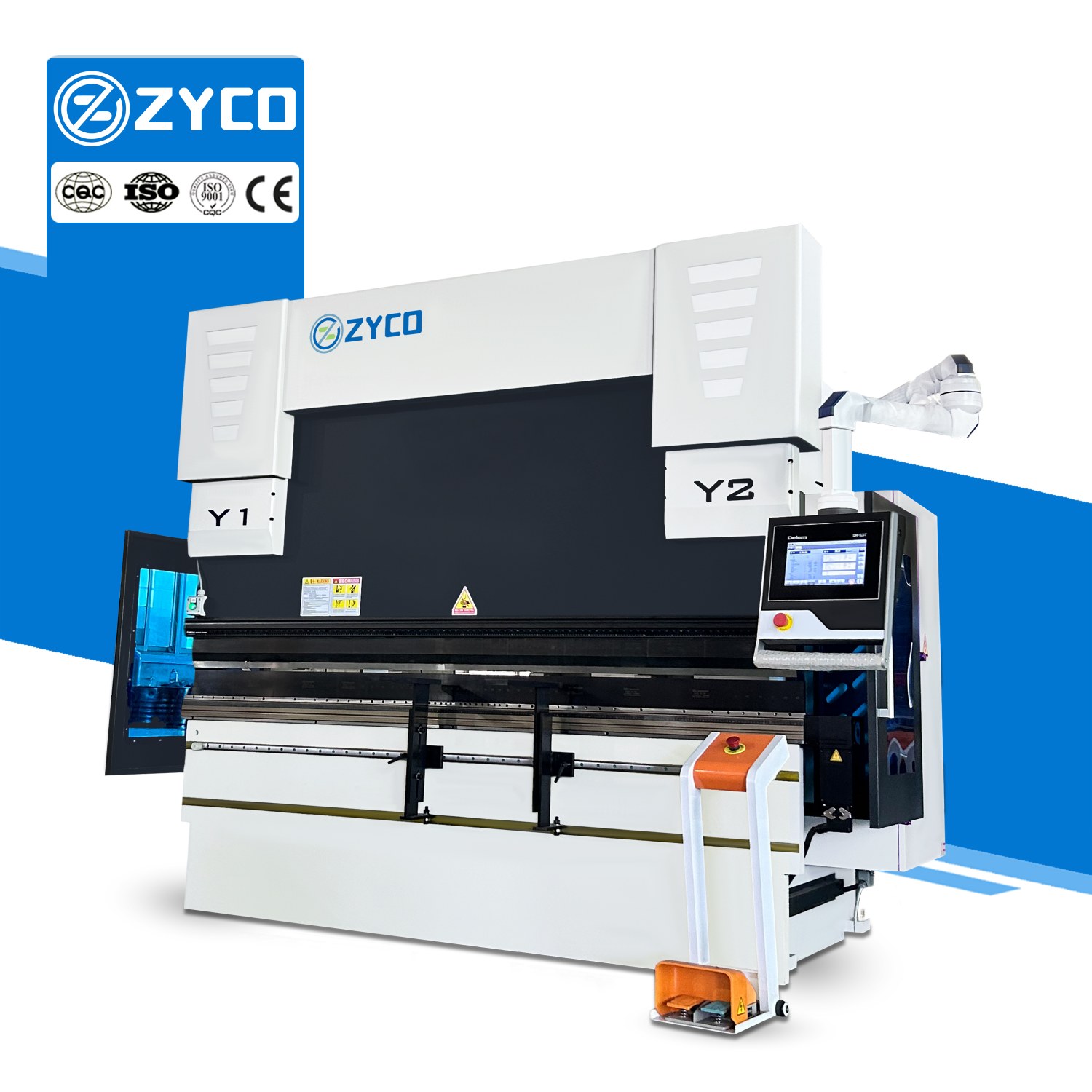

DELEM WE67K DA53T 200T 3200mm Metal Sheet Bending Hydraulic CNC Press Brake
