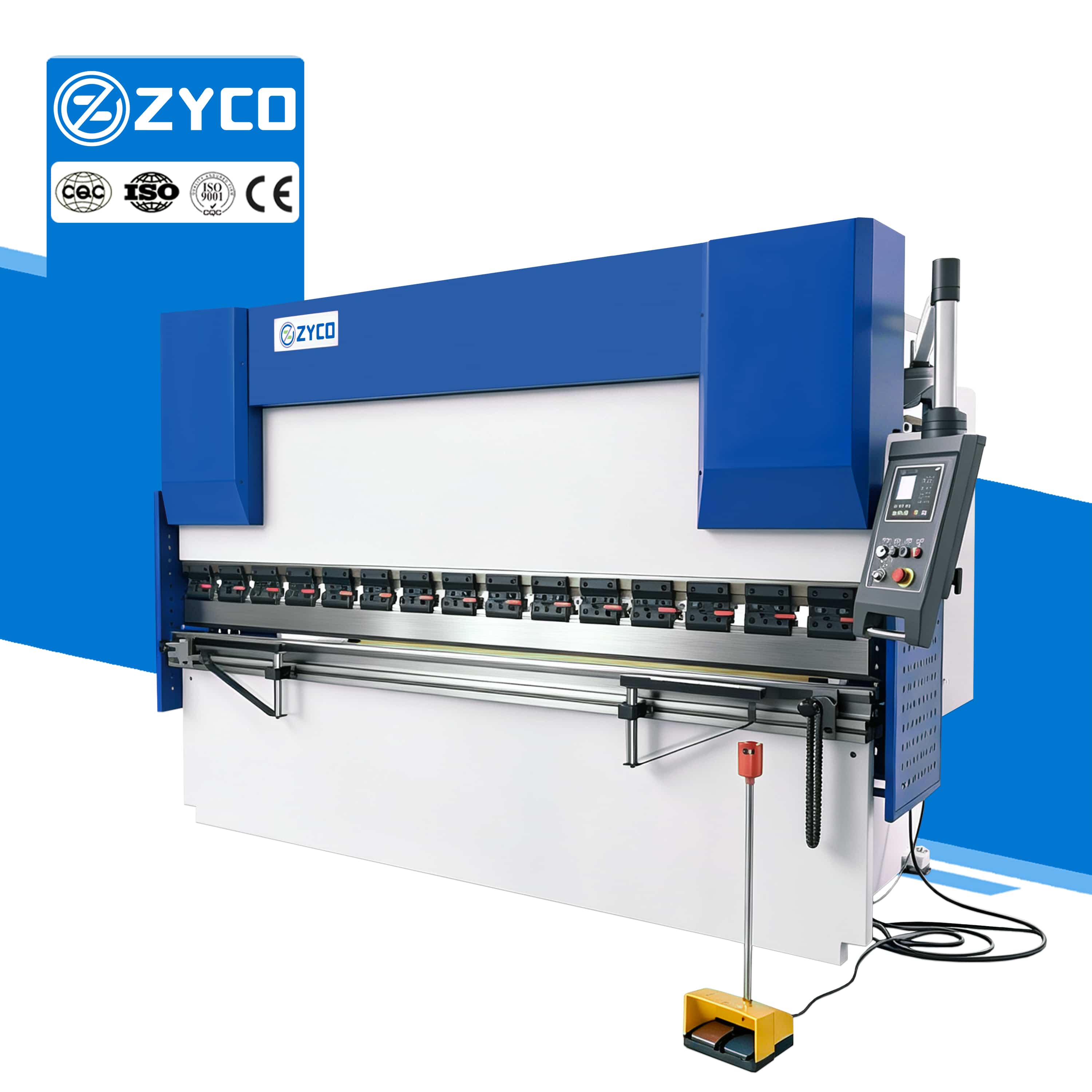

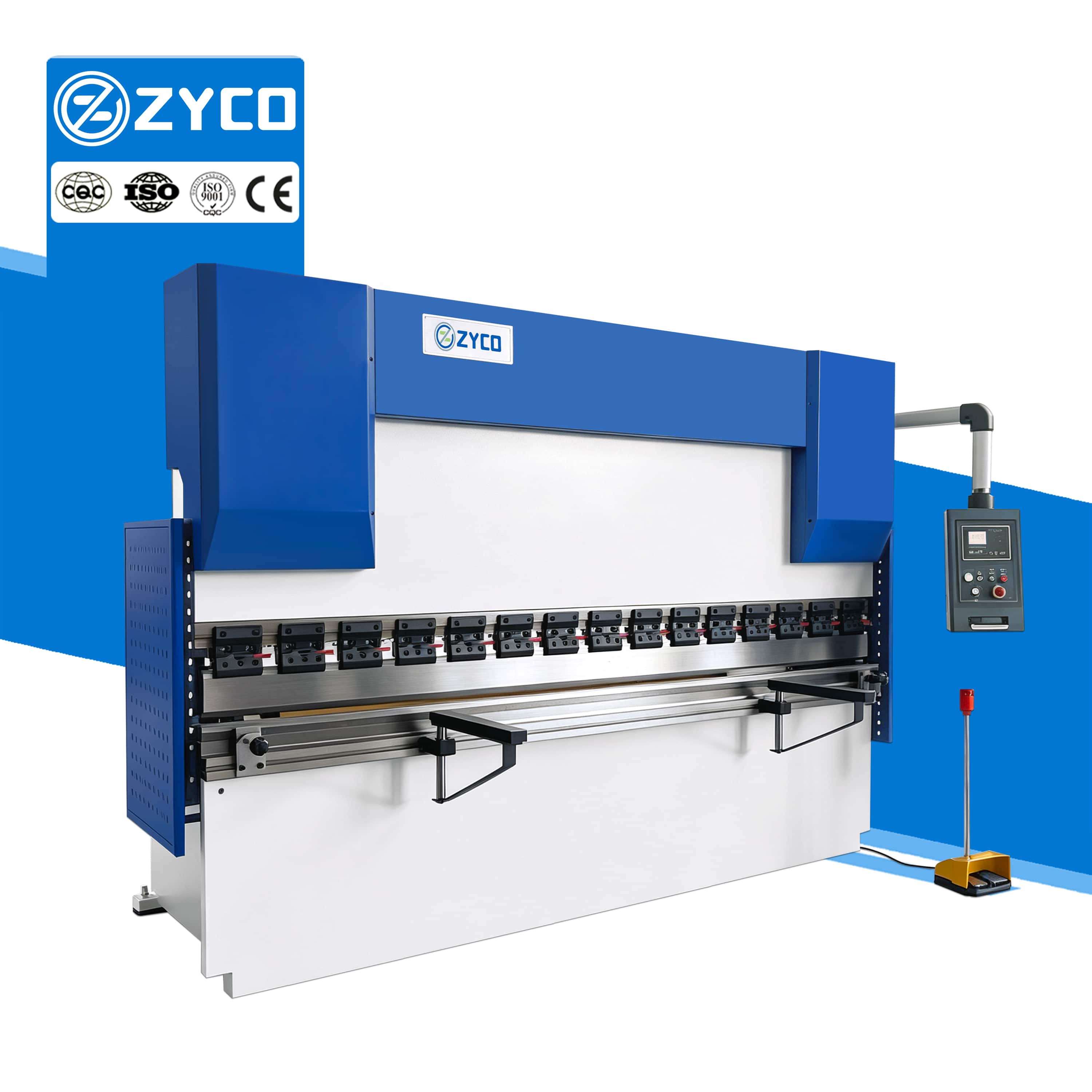

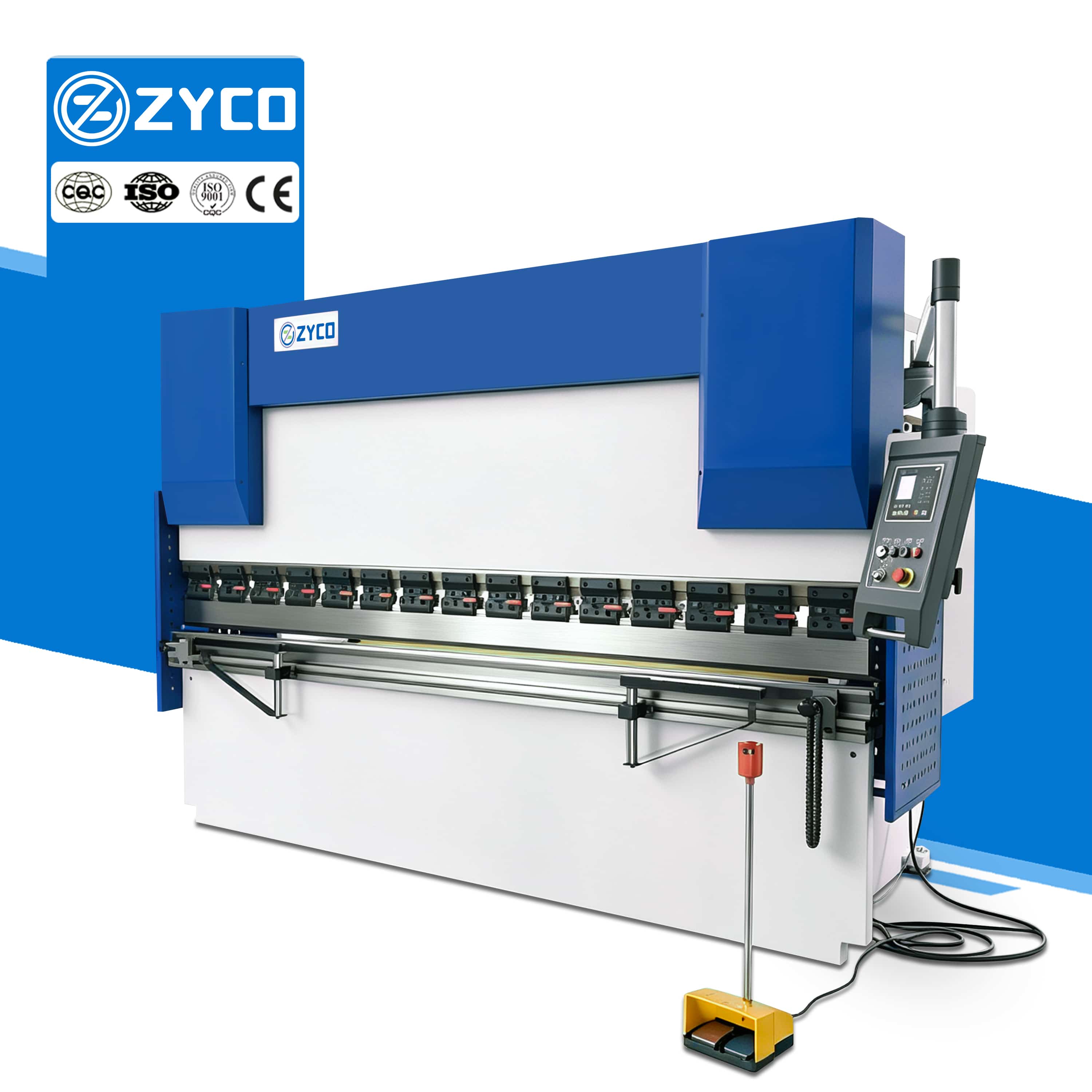

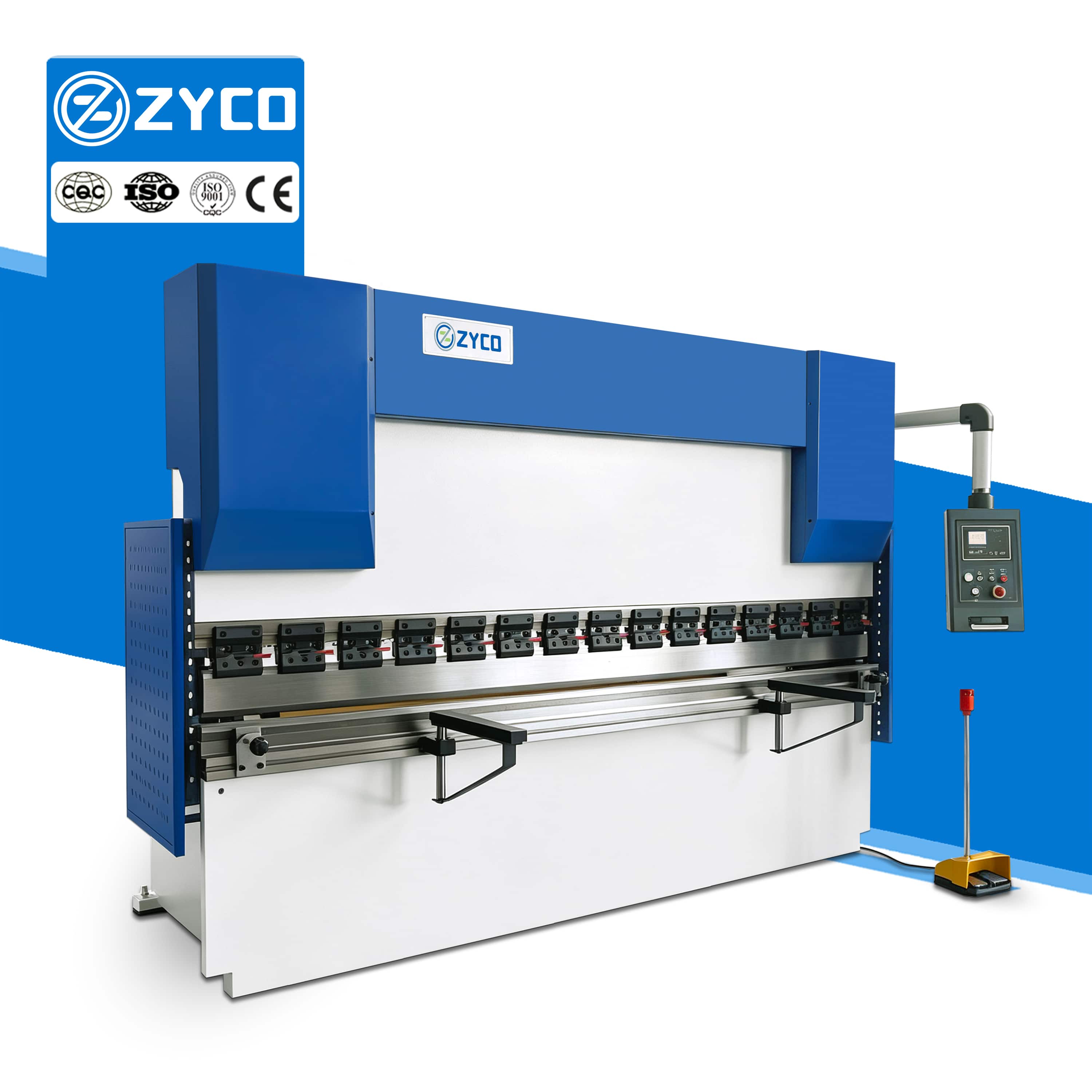

1.The back gauge positioning function can be positioned in one direction or two directions, effectively eliminating the screw gap.
2. It has a retreat function, which effectively protects the back gauge.
3.The fast position teaching function can be adjusted in time when the position digital display error occurs.
Control system
- Efficient computing power and positioning function.
- One-key parameter backup and restore function.
- 40 multi-step program storage space, each program has 25 steps.
View More +
Hydraulic system
- Adopt German Rexrtoh valve group, high precision and long life.
- The pressure of the hydraulic system can be adjusted according to specific actual needs so that it can meet the requirements of bending force.
View More +
Main motor
- ZYCO adopts the famous Siemens motor, which has the advantages of high quality and long life.
- Low noise and more energy-saving.
- Brand selection, guaranteed after-sales.
View More +
Back gauge
- We use imported ball screws and linear guides instead of traditional screws. This choice improves the accuracy and consistency of our manufacturing process.
- Our entire back gauge system is subjected to high temperature tempering to eliminate internal stress, improve the plasticity and toughness of the metal, and prevent the loss of accuracy due to frame deformation.
View More +
Oil pump
- The oil pump is made of high-strength cast iron and adopts a unique internal noise reduction design, making it less sensitive to oil pollution and extending its service life.
- Advanced gear pump manufacturing process, with beautiful design and high-end performance.
View More +
Internal Structure Display
For more detailed specifications, please don't hesitate to contact us.
Hydraulic bending machine structure diagram
1.Oil tank 2.Main motor 3.Limit swich 4.Electerical box 5.Stopping finger
6.Back gauge 7.Wall panel 8.Hydraulic oil cylinder 9.Slider 10.CNC system
11.Quick Clamping 12.Upper mold 13.Lower mold 14.Workbench support plate
Processing Workpiece Drawing
Sample display
|
This page doesn't support show parameter one by one. If other model, pls consult us.
|
|
Parameter
|
Unit
|
Value
|
|
Common Model
|
|
63Tx2500
|
100TX3200
|
160Tx3200
|
200Tx4000
|
|
Pressure
|
KN
|
630
|
1000
|
1600
|
2000
|
|
Bending Length
|
mm
|
2500
|
3200
|
3200
|
3200
|
|
Column Distance
|
mm
|
2030
|
2600
|
2600
|
2600
|
|
Max Opening Height
|
mm
|
E=440
|
E=480
|
E=500
|
E=520
|
|
Throat Depth
|
mm
|
D=250
|
D=320
|
D=320
|
D=320
|
|
Slide Stroke(Y-axis)
|
mm
|
170
|
200
|
200
|
220
|
|
Slide Moving Speed
|
No Loading
|
mm/s
|
200
|
|
Pressing
|
12
|
|
Returning
|
170
|
|
Main Motor Power
|
KW
|
5.5
|
7.5
|
11
|
15
|
|
Machine accuracy
|
Y slider repeat
|
mm
|
≤±0.02
|
|
Y slider positioning
|
mm
|
≤±0.02
|
|
X, R back gauge repeat positioning
|
mm
|
≤±0.05
|
|
Size (L*W*H)
|
m
|
3 × 1.8 × 2.5
|
3.8 × 1.85 x 2.6
|
3.8 × 1.85 × 2.65
|
3.8 × 1.9 × 2.65
|
|
Weigth
|
KG
|
5500
|
7500
|
9500
|
12000
|
Partners
Customer photos
Certificate of Honor
Q: How do I select the correct V-die opening for press brake bending?
A: The appropriate V-die opening depends mainly on material thickness, bending requirements, and the desired inside bend radius. Choosing the correct die opening helps control bending force, angle accuracy, and surface quality.
Q: What happens if the bending sequence is not properly planned?
A: An unsuitable bending sequence can cause workpiece interference, difficult positioning, or unnecessary handling between operations. Planning the sequence before production helps avoid these problems and makes the bending process more efficient.
Q: What's the shipping cost from china to your country?
A: We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.
Q: What should I do if the finished bending angle is different from the programmed angle?
A: The first step is to check the material, tooling, sheet thickness, positioning, and machine settings. Material springback can also affect the final angle. If necessary, the bending parameters can be adjusted after testing the first workpiece.
Q: Why does springback occur during press brake bending?
A: Springback occurs because metal tends to partially return toward its original shape after the bending force is released. Its effect depends on material properties, thickness, bend radius, and bending conditions.
Q: Can the press brake work with pre-cut parts from a laser cutting machine?
A: Yes. Laser-cut sheet metal parts can be transferred directly to the press brake for forming after cutting and necessary preparation. This combination is commonly used to create complete sheet metal components.
