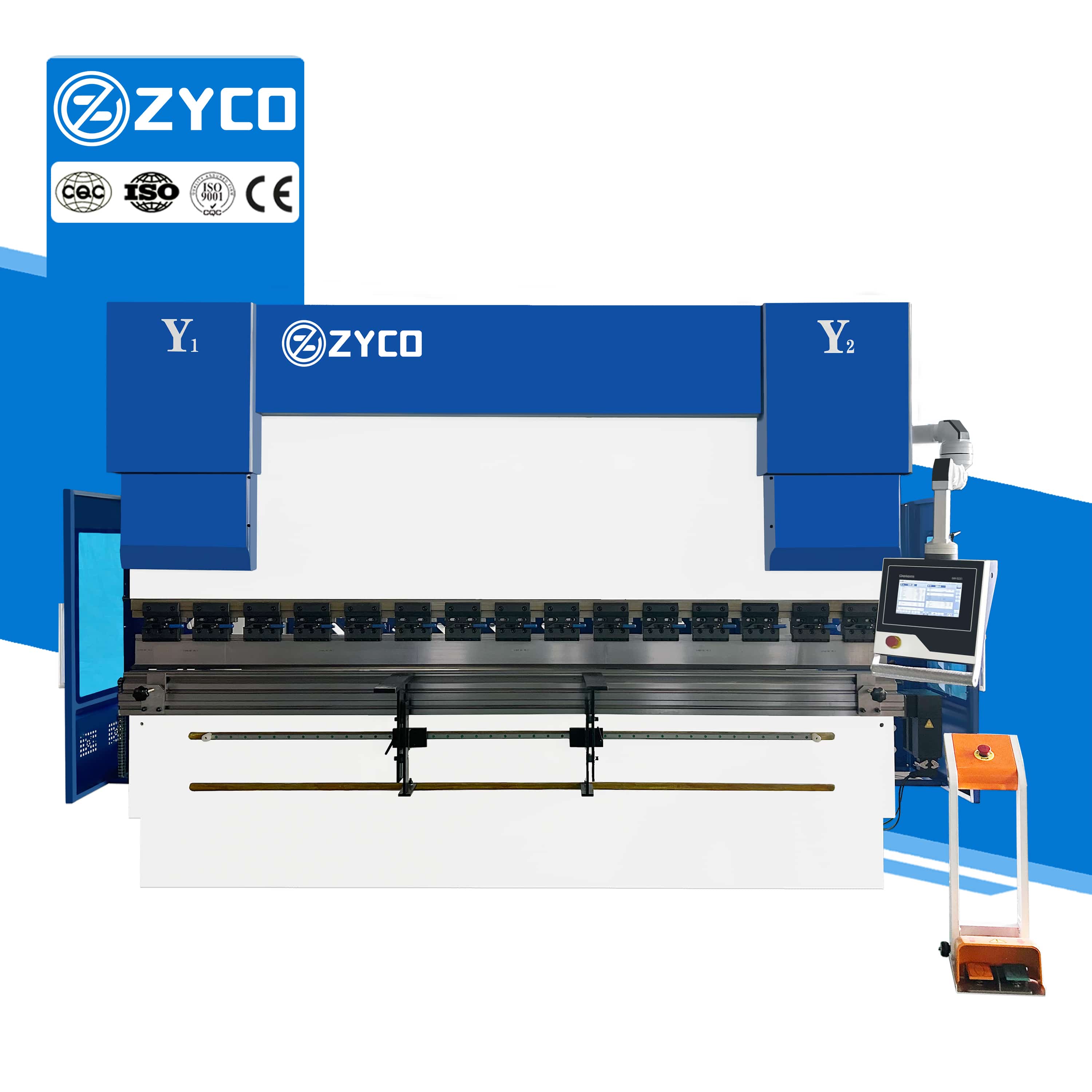

200T 3200mm DA53T CNC Press Brake with Advanced Electro-Hydraulic Synchronization

DA53T electro-hydraulic bending machine is an advanced CNC equipment, which is widely used in various metal processing industries. It has the characteristics of fast response and high-speed movement, which can improve daily production efficiency. The equipment adopts a closed-loop control system, which can monitor the parameters in the bending process in real time. If there is an error, it can be adjusted in time to ensure the accuracy of the bending angle and position.

Order(MOQ) :
1
Product Origin :
Nanjing,jiangsu,china
Weight :
7500kg
Warranty time :
2 years
Automation :
Automatic
Key selling points :
Competitive Price

Inquire Now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

ZYCO

1.High-precision control: The DA53T electro-hydraulic bending machine adopts an advanced CNC system, which can ensure the accuracy of the angle and position of each bend.

2.Powerful bending ability: The equipment has a large bending force and bending length range. Whether it is a thin plate or a thick plate, the DA53T electro-hydraulic bending machine can complete the bending task stably and efficiently.

3.Flexible operation interface: The DA53T electro-hydraulic bending machine is easy to operate and equipped with an intuitive and friendly human-machine interface.

Control system

Advanced Y-axis control algorithm, which can control both closed-loop valves and open-loop valves.

10.1" high-resolution true color TFT display.

With mold/material/product library, supporting servo or frequency conversion control.

View More +

Hydraulic system

Adopt German Rexrtoh valve group, high precision and long life.

The hydraulic system pressure can be adjusted according to specific actual needs so that it can meet the requirements of bending force.

The hydraulic control system adopts electro-hydraulic servo and synchronous design, and the hydraulic cylinder spacing is minimum. It has strong anti-eccentric load capacity.

View More +

Main motor

ZYCO adopts the famous Siemens motor, which has the advantages of high quality and long life.

Low noise and more energy-saving.

Brand selection, guaranteed after-sales.

View More +

Back gauge

We use imported ball screws and linear guides instead of traditional screws. This choice improves the accuracy and consistency of our manufacturing process.

Our entire back gauge system is subjected to high temperature tempering to eliminate internal stress, improve the plasticity and toughness of the metal, and prevent the loss of accuracy due to frame deformation.

View More +

Grating scale

We use the GIVI brand grating scale imported from Italy.

Higher precision and more sensitive response.

High quality and long life.

View More +

Internal Structure Display

For more detailed specifications, please don't hesitate to contact us.

Hydraulic bending machine structure diagram

1 .Oil tank 2.Main motor 3.Grating Ruler 4.Electerical box 5.C type plate 6.Stopping finger 7.Back gauge

8.Servo motor 9.Wall panel 10.Valve 11.Hydraulic oil cylinder 12.Slider 13.CNC system 14.Quick Clamoing

15.Upper mold16.Lower mold 17.CNC automatic Crowning 18.Workbench support plate

Processing Workpiece Drawing

Sample display

This page doesn't support show parameter one by one. If other model, pls consult us.
Parameter		Unit	Value
Common Model			63Tx2500	100TX3200	160Tx3200	200Tx4000
Pressure		KN	630	1000	1600	2000
Bending Length		mm	2500	3200	3200	3200
Column Distance		mm	2030	2600	2600	2600
Max Opening Height		mm	E=440	E=480	E=500	E=520
Throat Depth		mm	D=250	D=320	D=320	D=320
Slide Stroke(Y-axis)		mm	170	200	200	220
Slide Moving Speed	No Loading	mm/s	200
	Pressing		12
	Returning		170
Main Motor Power		KW	5.5	7.5	11	15
Machine accuracy	Y slider repeat	mm	≤±0.02
	Y slider positioning	mm	≤±0.02
	X, R back gauge repeat positioning	mm	≤±0.05
Size (LWH)		m	3 × 1.8 × 2.5	3.8 × 1.85 x 2.6	3.8 × 1.85 × 2.65	3.8 × 1.9 × 2.65
Weigth		KG	5500	7500	9500	12000

Partners

Customer photos

Certificate of Honor

FAQ

Q: Can a press brake be used for prototype and production work?

A: Yes. A CNC press brake is suitable for both prototype development and regular production. Programmable settings make it easier to test different bending sequences and then repeat the finalized process for production.

Q: How does the CNC backgauge affect press brake performance?

A: The CNC backgauge controls the positioning of the workpiece before bending. Accurate positioning helps maintain consistent flange dimensions and reduces manual measuring and adjustment during production.

Q: Can I request specific electrical components or a CNC system for the press brake?

A: Depending on the configuration, different CNC systems and electrical components can be considered according to the customer's requirements and target market. If you already have a preferred control system or electrical component brand, you can provide the details to our team for confirmation.

Q: Can the press brake bend boxes, channels, and U-shaped profiles?

A: Yes. A press brake can produce various formed profiles, including channels, U-shaped parts, boxes, and frames, provided that the workpiece geometry and tooling are suitable for the required bends.

Q: Can the press brake perform repeat bending on identical workpieces?

A: Yes. Once the bending parameters and sequence have been properly set, the same program can be used for repeated workpieces. This helps reduce differences between individual parts during batch production.
