ZYCO

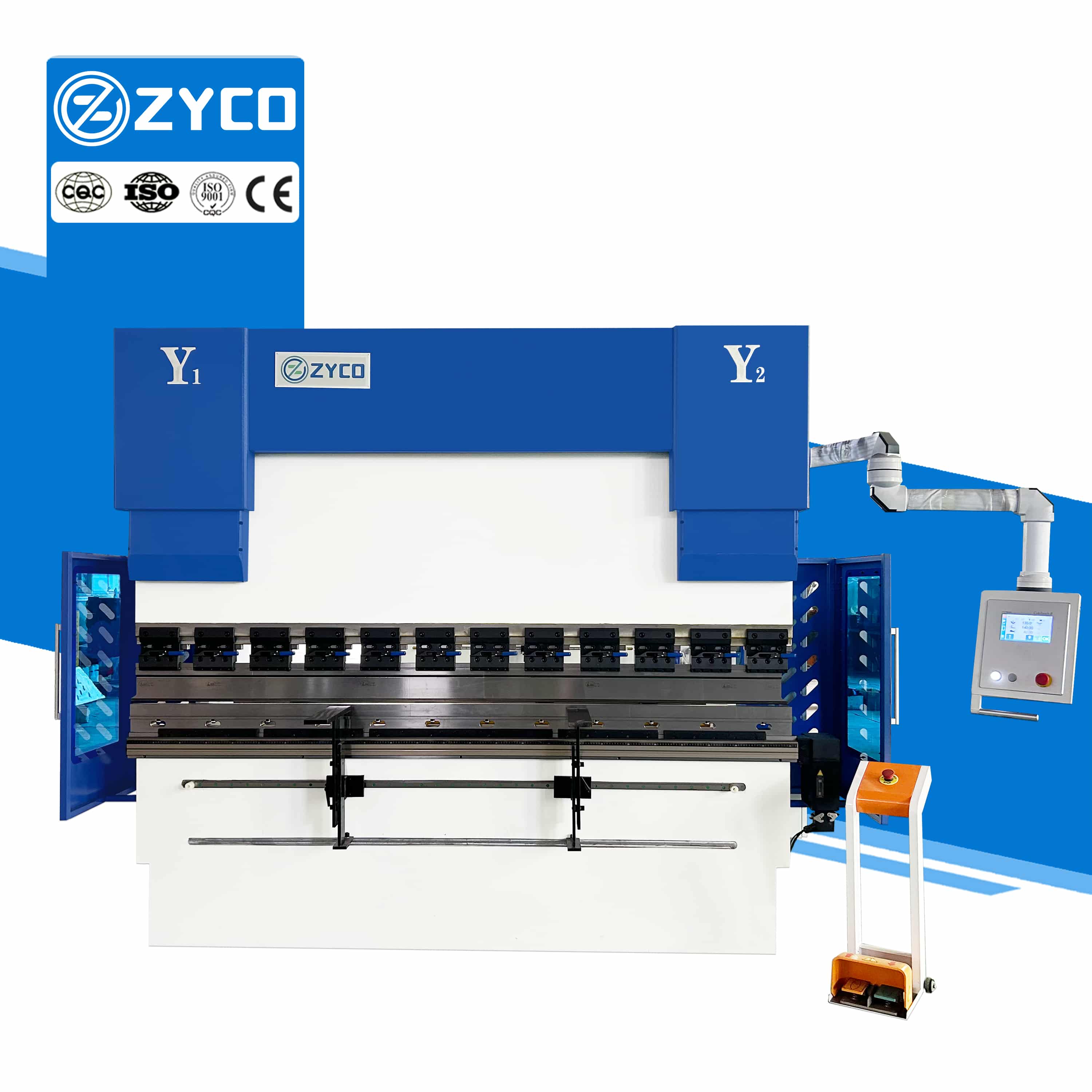

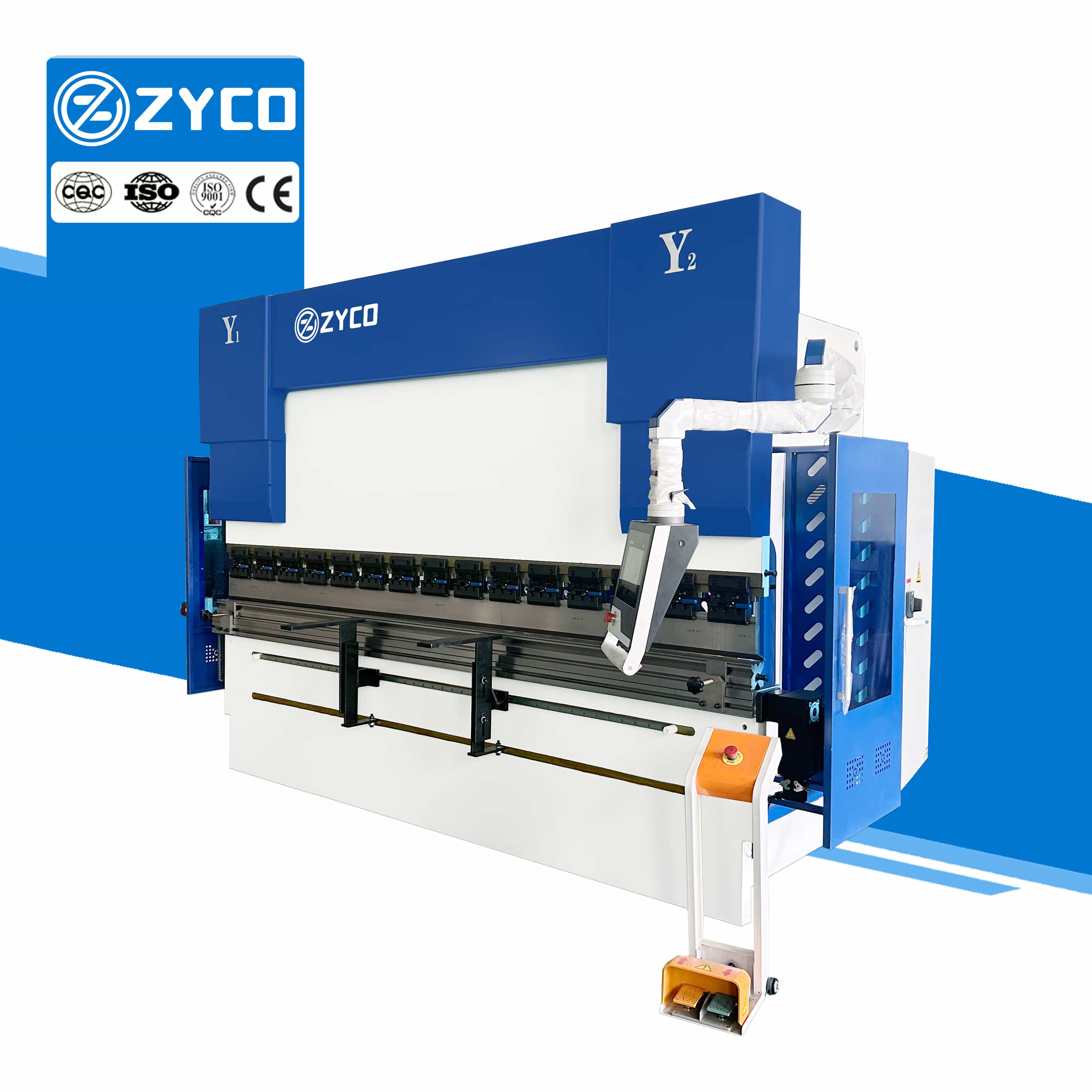

1.Accurate control: The CT8 electro-hydraulic bending machine is equipped with a state-of-the-art CNC system that guarantees uniformity in the angle and positioning of each bend.
2.Superior Bending Capability: This machine offers substantial bending force and an extensive bending length range, capable of handling both thin and thick materials with consistent and efficient results.
3.Intuitive control panel: The CT8 electro-hydraulic press brake features a simple and intuitive control interface, making it easy for operators to use.
Control system
- Adopt advanced Y-axis control algorithm, which can control closed-loop valves and open-loop valves.
- Equipped with 10.1-inch high-resolution true-color TFT display.
- Built-in mold/material/product library, supporting servo or frequency conversion control.
View More +
Hydraulic system
- Use German Rexroth valve group, high precision and long life.
- The pressure of the hydraulic system can be adjusted according to actual needs to meet different bending force requirements.
- Adopt electro-hydraulic servo synchronous control design, the hydraulic cylinder spacing is the smallest, and it has strong anti-eccentric load capacity.
View More +
Main motor
- ZYCO uses well-known Siemens motors, which have high quality and long service life.
- Low noise and more energy-saving.
- The brand selection is guaranteed and provides perfect after-sales service.
View More +
Back gauge
- We use imported ball screws and linear guides to replace traditional threads, which improves the accuracy and consistency of the manufacturing process.
- The entire back gauge system is treated with high temperature tempering to eliminate internal stress, improve the plasticity and toughness of the metal, and avoid loss of accuracy caused by frame deformation.
View More +
Grating scale
- We use GIVI brand grating ruler imported from Italy.
- Higher precision and more responsive.
- High quality and long service life.
View More +
Internal Structure Display
For more detailed specifications, please don't hesitate to contact us.
Hydraulic bending machine structure diagram
1 .Oil tank 2.Main motor 3.Grating Ruler 4.Electerical box 5.C type plate 6.Stopping finger 7.Back gauge
8.Servo motor 9.Wall panel 10.Valve 11.Hydraulic oil cylinder 12.Slider 13.CNC system 14.Quick Clamoing
15.Upper mold16.Lower mold 17.CNC automatic Crowning 18.Workbench support plate
Processing Workpiece Drawing
Sample display
|
This page doesn't support show parameter one by one. If other model, pls consult us.
|
|
Parameter
|
Unit
|
Value
|
|
Common Model
|
|
63Tx2500
|
100TX3200
|
160Tx3200
|
200Tx4000
|
|
Pressure
|
KN
|
630
|
1000
|
1600
|
2000
|
|
Bending Length
|
mm
|
2500
|
3200
|
3200
|
3200
|
|
Column Distance
|
mm
|
2030
|
2600
|
2600
|
2600
|
|
Max Opening Height
|
mm
|
E=440
|
E=480
|
E=500
|
E=520
|
|
Throat Depth
|
mm
|
D=250
|
D=320
|
D=320
|
D=320
|
|
Slide Stroke(Y-axis)
|
mm
|
170
|
200
|
200
|
220
|
|
Slide Moving Speed
|
No Loading
|
mm/s
|
200
|
|
Pressing
|
12
|
|
Returning
|
170
|
|
Main Motor Power
|
KW
|
5.5
|
7.5
|
11
|
15
|
|
Machine accuracy
|
Y slider repeat
|
mm
|
≤±0.02
|
|
Y slider positioning
|
mm
|
≤±0.02
|
|
X, R back gauge repeat positioning
|
mm
|
≤±0.05
|
|
Size (L*W*H)
|
m
|
3 × 1.8 × 2.5
|
3.8 × 1.85 x 2.6
|
3.8 × 1.85 × 2.65
|
3.8 × 1.9 × 2.65
|
|
Weigth
|
KG
|
5500
|
7500
|
9500
|
12000
|
Partners
Customer photos
Certificate of Honor
Q: Can one operator manage the press brake during normal production?
A: For many standard workpieces, one trained operator can manage the normal bending process. However, the required number of operators may vary depending on workpiece size, weight, production method, and material handling requirements.
Q: How important is workpiece positioning during bending?
A: Correct positioning is essential because the initial position of the sheet directly affects flange dimensions and overall part accuracy. The backgauge and proper operator handling work together to maintain consistent positioning.
Q: Can the press brake be integrated into a larger sheet metal production line?
A: Yes. A press brake can be used as part of a broader sheet metal workflow together with equipment such as laser cutting machines, shearing machines, and material handling systems. The integration method depends on the customer's production process.
Q: Can ZYCO help me determine the bending sequence for my products?
A: Yes. If you provide product drawings or workpiece information, our technical team can analyze the bending process and recommend a suitable bending sequence and machine configuration. This can help reduce trial-and-error during production.
Q: How do I know whether my existing tooling can be used with a new press brake?
A: Compatibility depends on the tooling interface, dimensions, clamping method, and machine configuration. If you already have tooling, providing its drawings or dimensions allows our team to check compatibility before purchase.
