6000W CNC Fiber Laser Cutting Machine for Heavy Duty Metal Processing

This laser cutting machine features an optimized air control system design and is equipped with internationally renowned pneumatic components, significantly improving its economical efficiency. It also uses core components from leading domestic brands such as Bochu system and Chuangxin laser, doubly guaranteeing operational stability and superior performance.

Order(MOQ) :
1
Product Origin :
Nanjing,Jiangsu,China
Weight :
3000kg
Warranty time :
2 years
Automation :
Automatic
Key selling points :
High precision, high speed, save material, save labor

Inquire Now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

ZYCO

1. The innovative hollow structure design, combined with an internal fish-scale pattern, significantly enhances the equipment's fire safety.

2. The entire frame is treated with a high-temperature annealing process, combined with high-speed sandblasting and stress relief technology to effectively eliminate internal stress, ensuring the equipment will not deform during long-term use and maintain morphological stability for over 20 years.

3. The equipment offers excellent dynamic performance, including high-speed operation, outstanding dynamic response, and rapid acceleration.

Control system

Utilizes a dedicated fiber laser cutting software system custom-developed for the Chinese market.

Features quick installation and simple calibration.

The system supports intelligent matching of power and cutting speed, offers independent linear cutting speed settings, and integrates a vast database of cutting process resources.

View More +

Nickel alloy plate laser cutting machine

Automatic Lubrication System

Utilizing intelligent timed lubrication technology, it automatically calculates lubrication cycles and oil distribution based on the equipment's actual operating time, ensuring precise maintenance and maximizing the service life of key mechanical components.

View More +

Cutting head

Equipped with an auto-focus cutting head, it senses material thickness in real time and automatically optimizes the focus position.

Integrated with multiple safety protection systems, including a collision protection device.

Excellent performance in multi-focus processing areas, simultaneously improving processing efficiency and cutting accuracy.

View More +

Water chiller

Equipped with a triple safety monitoring system: overtemperature warning protection, flow abnormality monitoring, and real-time water level monitoring, providing a comprehensive equipment operation safety assurance system.

View More +

Laser generator

Excellent Beam Quality: Maintains a stable beam performance (BPP) across the entire power range, ensuring consistent beam quality.

Precision Cutting Capability: The output laser features ultra-high energy density and an extremely small divergence angle, enabling micron-level precision cutting.

Efficient Production: High-power laser output combined with fast response significantly improves production efficiency.

View More +

Internal Structure Display

For more detailed specifications, please don't hesitate to contact us.

Bed welding structure

Original machine tool lubrication system

--The precision of the machine tool comes from the gear rack and linear guide.

--Gear rack: Determine the precision.

--Linear guide: Determine the direction.

Generally, the conventional oiling of machine tool manufacturers is once every 4 hours. There is no loop system in the oil circuit, and the oil is easy to overflov and drip onto the plate, affecting the cutting effect.However, our original and improved loop system can oil once every half an hour,shorten the oiling time, increase the oiling frequency, increase the number ofoiling times for gear racks and linear quides, reduce the wear of racks and guides, improve the precision, and extend the service life of the machine tool.

Product Parameters

1. Stainless steel cutting process parameters			Cutting head collimator focal length (mm): 100 (1kw-/15kw) Cutting head focusing lens focal length (mm): 125 (≤2KW); 150 (3KW, 4KW); 200 (≥6KW)
Cutting Laser Power/Speed (m/min (w) /Board Thickness (mn)	1000	2000	3000	4000	6000	8000	10000	12000	15000
1	20-22	45-50	60-70	40-45	45-50	47-55	50-55	54-58	60-65
2	6.5-7.0	13-15	22-27	20-25	30-35	34-39	39-42	41-46	44-49
3	2.5-3.0	5.0-6.0	8.0-10	11-13	17-20	21-25	23-29	30-33	32-37
4	1.2-1.4	3-3.5	6.0~70	6.5-7	13-15	18-21	19-23	22-26	24-28
6		0.9-1.2	2.1-2.6	2.5-3	6-6.5	7-8.5	10-12	16	16-18
8		0.4-0.6	0.85-1.2	1.6-1.8	3.8-4.2	4.1-4.8	7-7.5	10	12-14
10		0.2-0.5	0.6~0.8	0.8-0.9	1.6-2.1	2.8-3.2	5-5.8	6-7	7-9
12			0.5-0.6	0.7-0.75	1.1-1.4	1.6-2.0	3.3-3.7	4-4.5	4.5-5
14				0.5-0.55	0.9-1.1	1.3-1.55	1.7-2.1	2.1-2.8	2.5-3.1
16					0.6-0.8	1.1-1.3	1.6-1.7	1.8-2.3	2-2.5
18					0.5-0.65	0.7-0.82	1.1-1.25	1.2-1.4	1.65-1.8
20					0.4-0.5	0.65-0.75	0.8-1.1	1.3-1.6	1.4-1.8
25						0.4-0.5	0.45-0.5	0.55-0.65	0.6-0.7
30						0.3-0.33	0.35-0.4	0.45-0.55	0.45-0.6
35							0.22-0.25	0.3-0.45	0.3-0.4
40								0.25-0.34	0.2-0.35
45								0.16-0.23	0.16-025
50									0.12-02
Note: The green fonts are stable cutting data under most production conditions; the blue fonts are cutting data that may be achieved under some better production conditions; the red fonts are extreme cutting data achieved under laboratory conditions.

2. Carbon steel cutting process parameters			Cutting head collimator focal length (mm): 100 (1kw-/15kw) Cutting head focusing lens focal length (mm): 125 (≤2KW); 150 (3KW, 4KW); 200 (≥=6KW)
Cutting Laser power/Speed (m/min(w) /Board thickness (mm)	1000	2000		3000	4000	6000	8000	10000	12000	15000
1	22-25	42-47		48-55	42-45	45-48	46-52	49-55	50-58	55-60
2	5-6	5-6		5-6	18-21	29-35	32-37	34-39	35-41	36-42
3	2.8-3.0	4.0-4.5		3.5-4.3	4-4.5	4-5	4-5	4-5	4-5	26-31
4	2.2-2.4	3.6-4.0		3.2-4	3.5-4	3.5-4	3.5-4	3.5-4	3.5-4	19-22
6	1.3-1.6	2.2-2.7		2-2.5	2.4-2.7	2.8-3.3	2.8-3.1	2.8-3.2	2.8-3.3	14-17
8	1.0-1.2	1.4-1.8		1.8-2.4	2-2.3	2.1-2.4	2.1-2.45	2.1-2.45	2.1-2.6	2.1-2.6
10	0.8-1.0	1.1-1.5		1.4-1.8	1.8-2	2-2.2	2.0-2.3	2.1-2.5	2.1-2.5	2.1-2.6
12		0.96-1.2		0.9-1.1	1.5-1.6	1.9-2.0	1.9-2.0	1.9-2.1	1.9-2.1	1.85-2.1
14		0.9-1.1		0.75-0.9	1.2-1.4	1.5-1.7	1.6-1.75	1.7-1.85	1.66-1.75	1.7-18
16		0.7-0.8		0.7-0.8	1-1.1	1.25-1.35	1.45-1.6	1.5-1.6	1.55-1.65	1.6-1.7
18		0.6-0.7		0.6-0.8	0.8-0.95	1.15-1.3	1.2-1.45	1.35-1.4	1.4-1.55	1.5-1.6
20		0.5-0.6		0.6-0.75	0.6-0.7	0.9-1.0	1.0-1.2	1.1-1.3	12-1.3-	1.4-1.5
25				0.5-0.55	0.45-0.55	0.5-0.55	0.5-0.6	0.65-0.7	0.65-0.7	0.8-1.0
30							0.3-0.35	0.4-0.42	0.4-0.45	0.64-0.8
35							0.25-0.3	0.37-0.38	0.25-0.28	0.4
40								0.25-0.26	0.2-0.26	0.32
45									0.18-0.22	0.25
50									0.15	0.18
Note: 1) The green font is the stable cutting data under most production conditions; the blue font is the cutting data that may be achieved under some better production conditions; the red font is the limit cutting data achieved under laboratory conditions. 2) The underlined data is the nitrogen cutting data.

Partners

Customer photos

Certificate of Honor

FAQ

Q: What is the difference between a single platform laser cutting machine and an exchange table laser cutting machine?

A: The main difference is the loading and unloading method. A single platform laser cutting machine uses one working table for material loading, cutting, and unloading, while an exchange table design allows faster material changing during production. A single platform machine is often a practical choice for customers who focus on cost efficiency and do not require extremely high-volume continuous production. The best choice depends on your production volume, budget, and working process.

Q: How does this laser cutting machine improve material utilization?

A: This laser cutting machine improves material utilization through precise CNC control, optimized cutting paths, and accurate positioning. The high cutting accuracy helps reduce unnecessary scrap caused by cutting errors, while professional nesting software can further improve sheet utilization. For customers who process expensive materials such as stainless steel or aluminum, improving material efficiency can significantly reduce production costs.

Q: What type of gas is used with this laser cutting machine?

A: This laser cutting machine usually uses auxiliary gases such as oxygen or nitrogen during the cutting process. Different gases are selected according to the material and required cutting effect. For example, nitrogen is commonly used when customers require cleaner edges on stainless steel, while oxygen can be used for certain carbon steel applications. Our engineers can help recommend suitable cutting parameters according to your materials and quality requirements.

Q: Does this laser cutting machine need a large installation space?

A: The required installation space depends on the machine size, working area, auxiliary equipment, and customer production layout. Before shipment, customers should prepare a suitable foundation, power supply, ventilation conditions, and operating space. If you provide your workshop information, our team can help confirm the installation requirements and provide professional guidance.

Q: What kind of training is provided after purchasing this laser cutting machine?

A: After purchasing this laser cutting machine, customers can receive operation guidance and technical support to help operators understand machine operation, basic maintenance, and daily troubleshooting. Proper training helps customers achieve better cutting results and reduce unnecessary downtime during production. For overseas customers, our team can provide professional support to ensure smooth machine operation.

Hot Tags : Automated press brake machines Metal Sheet Press Brake Iron plate laser cutting machine Alloy plate laser cutting machine fiber laser cutting machine customization laser cutting machines 8Kw Fiber Laser Cutting Machine CNC Laser Metal Cutting Machine Stainless steel plate laser cutting machine

Leave A Message

Are you interested in collaborating and working with us? Please don't hesitate to contact us.

RELATED PRODUCTS

ZYCO 3000W CNC Fiber Laser Cutting Machine for Metal Sheet

The laser cutting machine has an advanced air circuit control system design and is equipped with imported pneumatic components to effectively reduce the cost of use. The use of domestic first-line brand accessories, such as Bochu system and Chuangxin laser, ensures the stability and high quality of the equipment.

Full Enclosure CNC Fiber Laser Cutting Machine for Metal Sheets

The fully enclosed series fiber laser cutting machine is equipped with a swap table and protective cover, which can complete the table switching in just 15 seconds. The cutting and loading processes can be carried out simultaneously, which can significantly improve production efficiency.

6000W CNC Fiber Laser Cutting Machine for Heavy Duty Metal Processing

This laser cutting machine features an optimized air control system design and is equipped with internationally renowned pneumatic components, significantly improving its economical efficiency. It also uses core components from leading domestic brands such as Bochu system and Chuangxin laser, doubly guaranteeing operational stability and superior performance.

Cnc fiber laser cutting machine for iron steel aluminum copper plate sheet

This machine utilizes a fully enclosed fiber laser cutting system, integrated with a highly efficient exchange table and safety devices. Its 15-second rapid switching technology enables seamless dual-station integration, enabling parallel loading and processing, effectively increasing the machine's overall production capacity. Its modular design significantly reduces production cycle time and optimizes time utilization within the processing flow while ensuring operational safety.

CNC 4015 Fiber Laser Cutting Machine for Stainless Steel Sheet Processing

This laser cutting machine utilizes intelligent air control technology and is equipped with internationally renowned pneumatic components, significantly improving operational efficiency and reducing maintenance costs. Core components include premium domestically produced Bochu system and Chuangxin laser, ensuring long-term stable operation and superior processing quality.

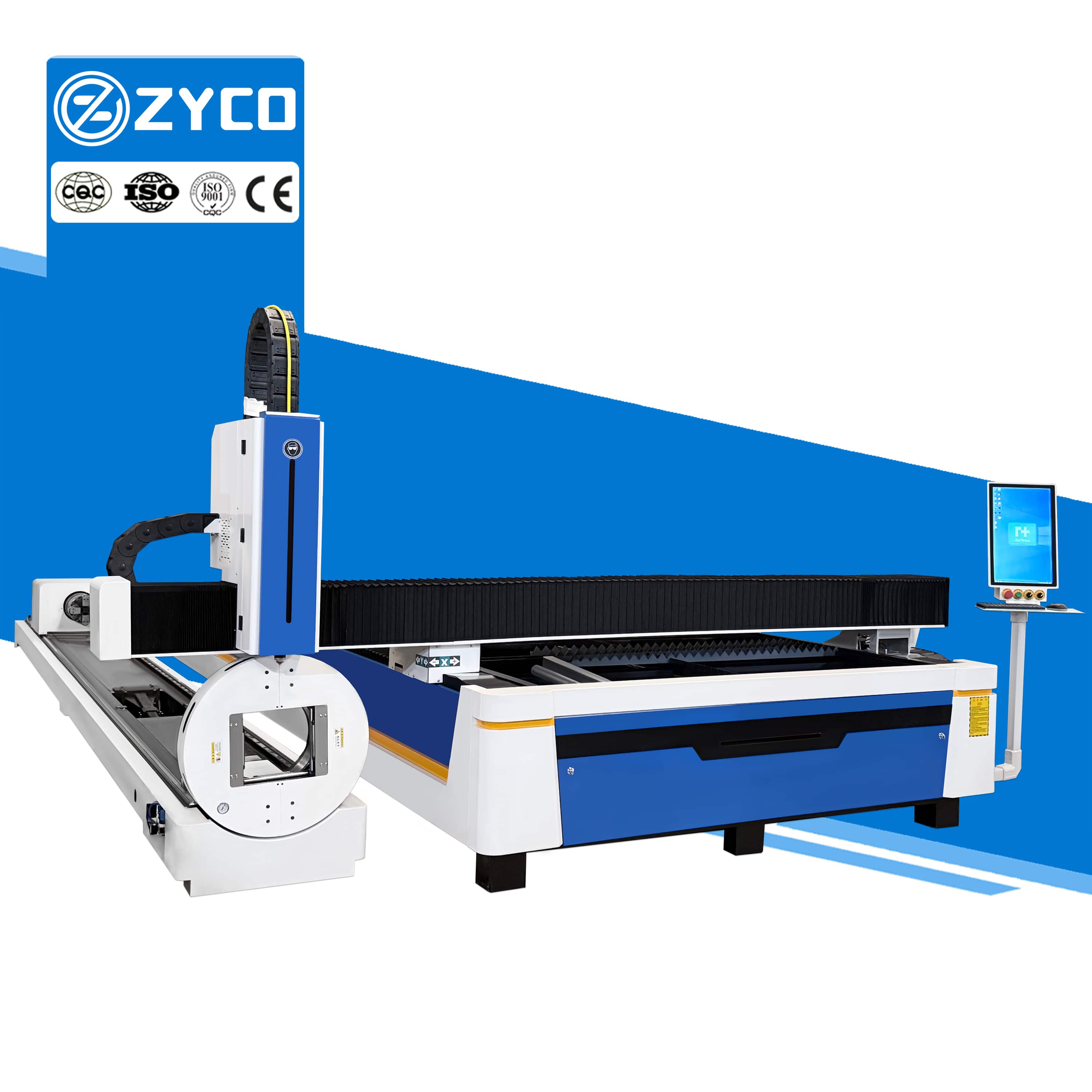

ZYCO Metal Plate and Tube Fiber Laser Cutting Machine Cnc Sheet Metal Fabrication Laser Cutting Machine
