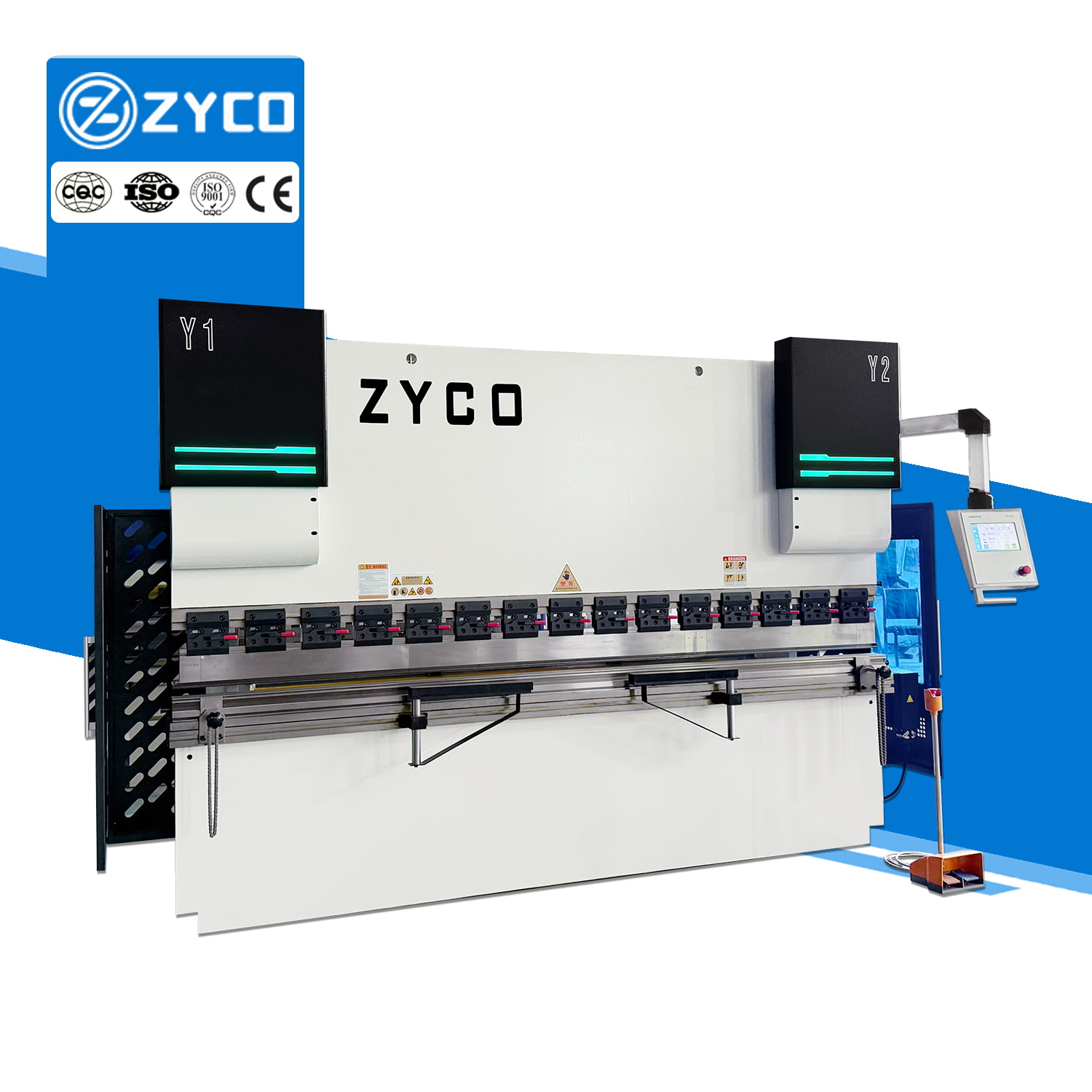

ZYCO
1. The back gauge has a positioning function, which can achieve unidirectional or bidirectional positioning and significantly reduce the screw gap.
2. Equipped with a retreat function, it can effectively protect the back gauge system.
3. It has a fast position teaching function. When the position value is displayed incorrectly, it can be taught and corrected in time.
Control system
- Provide powerful computing power and precise positioning function.
- Support fast backup and recovery of parameters.
- Equipped with more than 500 program storage spaces, each program can store up to 40 steps.
View More +
Hydraulic system
- Use German Rexroth valve group, which has high precision and long service life.
- The hydraulic system pressure can be flexibly adjusted according to actual needs to meet different bending force requirements.
View More +
Main motor
- ZYCO uses world-renowned Siemens motors, which have excellent quality and long service life.
- Low operating noise and higher energy efficiency.
- Ensure brand selection and comprehensive after-sales service guarantee.
View More +
Back gauge
- We use imported ball screws and linear guides to replace traditional screws, which greatly improves manufacturing accuracy and consistency.
- The entire back gauge system is treated with high temperature tempering to eliminate internal stress, improve the plasticity and toughness of the metal, and effectively prevent accuracy problems caused by frame deformation.
View More +
Oil pump
- The oil pump is made of high-strength cast iron and has a unique noise reduction design, making it insensitive to oil pollution and extending the service life of the equipment.
- Advanced gear pump technology, exquisite design and excellent performance.
View More +
Internal Structure Display
For more detailed specifications, please don't hesitate to contact us.
Hydraulic bending machine structure diagram
1.Oil tank 2.Main motor 3.Limit swich 4.Electerical box 5.Stopping finger
6.Back gauge 7.Wall panel 8.Hydraulic oil cylinder 9.Slider 10.CNC system
11.Quick Clamping 12.Upper mold 13.Lower mold 14.Workbench support plate
Processing Workpiece Drawing
Sample display
|
This page doesn't support show parameter one by one. If other model, pls consult us.
|
|
Parameter
|
Unit
|
Value
|
|
Common Model
|
|
63Tx2500
|
100TX3200
|
160Tx3200
|
200Tx4000
|
|
Pressure
|
KN
|
630
|
1000
|
1600
|
2000
|
|
Bending Length
|
mm
|
2500
|
3200
|
3200
|
3200
|
|
Column Distance
|
mm
|
2030
|
2600
|
2600
|
2600
|
|
Max Opening Height
|
mm
|
E=440
|
E=480
|
E=500
|
E=520
|
|
Throat Depth
|
mm
|
D=250
|
D=320
|
D=320
|
D=320
|
|
Slide Stroke(Y-axis)
|
mm
|
170
|
200
|
200
|
220
|
|
Slide Moving Speed
|
No Loading
|
mm/s
|
200
|
|
Pressing
|
12
|
|
Returning
|
170
|
|
Main Motor Power
|
KW
|
5.5
|
7.5
|
11
|
15
|
|
Machine accuracy
|
Y slider repeat
|
mm
|
≤±0.02
|
|
Y slider positioning
|
mm
|
≤±0.02
|
|
X, R back gauge repeat positioning
|
mm
|
≤±0.05
|
|
Size (L*W*H)
|
m
|
3 × 1.8 × 2.5
|
3.8 × 1.85 x 2.6
|
3.8 × 1.85 × 2.65
|
3.8 × 1.9 × 2.65
|
|
Weigth
|
KG
|
5500
|
7500
|
9500
|
12000
|
Partners
Customer photos
Certificate of Honor
Q: How does the press brake handle different bending sequences?
A: The CNC system can be used to organize multiple bending operations into a defined sequence. The operator can follow the programmed steps in order, which helps reduce unnecessary repositioning and manual adjustments.
Q: Can the press brake be used for decorative sheet metal products?
A: Yes. It can be used to form components where dimensional accuracy and appearance are important, such as panels, covers, frames, and architectural metal parts. Proper tooling and process settings are especially important for visible surfaces.
Q: Can the press brake process pre-painted or surface-finished sheets?
A: It can be used for certain surface-finished materials, but additional attention should be given to tooling contact and surface protection. The appropriate bending method should be selected according to the material and surface requirements.
Q: How much space is normally required around a press brake?
A: The required workshop space depends on the machine dimensions, workpiece size, material handling method, and operator access. Adequate space should be reserved around the machine for safe loading, unloading, operation, and maintenance.
Q: Can the press brake be installed directly after delivery?
A: The machine should first be properly positioned, connected to the required power supply, checked, and commissioned before regular production. Installation requirements can vary according to the machine configuration and customer's workshop conditions.
