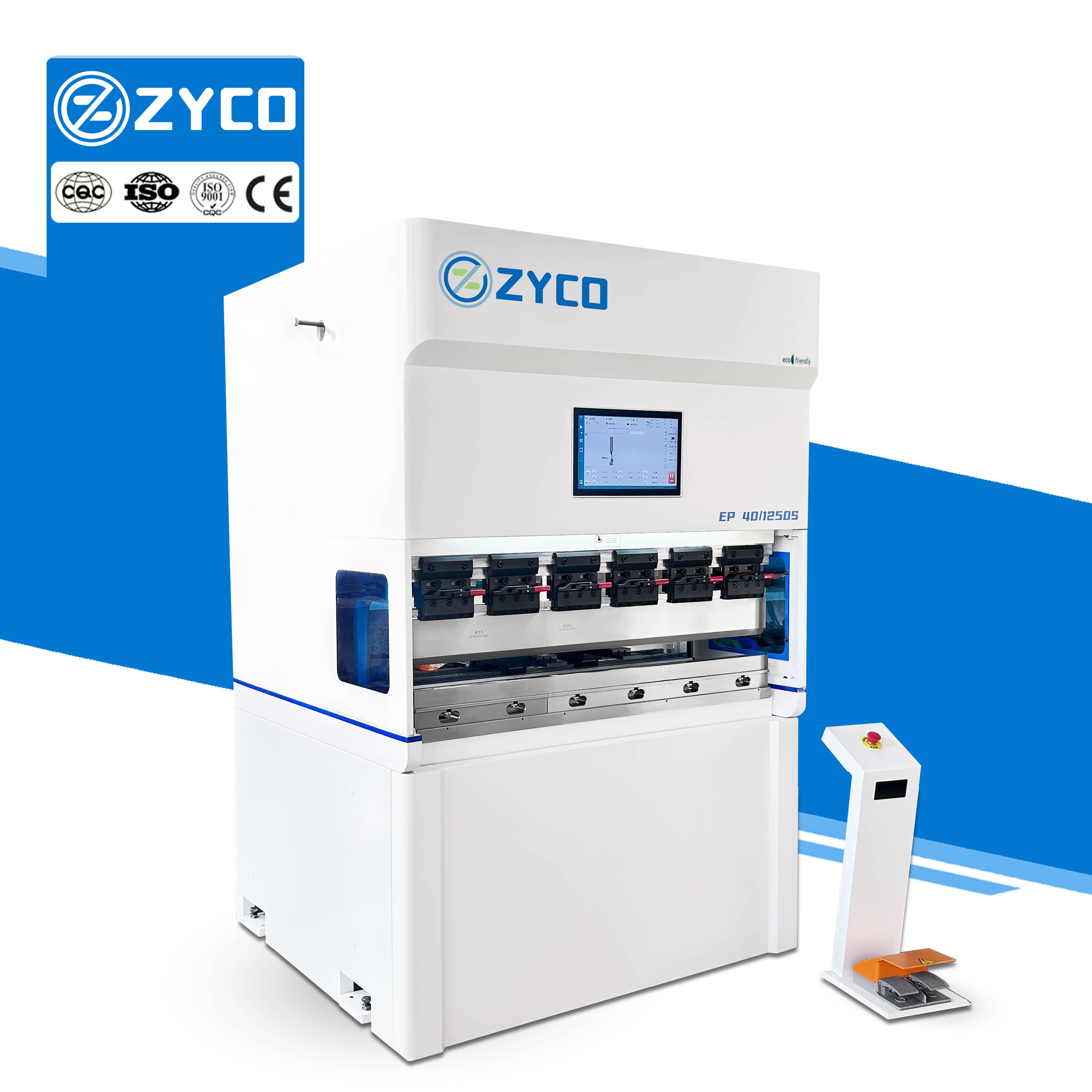

Pure Electric Press Brake with Servo Drive for Efficient Bending

Pure Electric Press Brake with Servo Drive for Efficient Bending

The pure electric press brake adopts electric drive, which is easy to operate, can realize automatic bending, and significantly improve work efficiency. Compared with the traditional hydraulic system, the electric system provides more precise control, achieves faster bending speed and higher processing accuracy. In addition, the pure electric bending machine consumes almost no electricity in standby mode, reducing overall energy consumption.

Order(MOQ) :
1
Product Origin :
Nanjing,jiangsu,china
Weight :
420kg
Warranty time :
2 years
Automation :
Automatic
Key selling points :
Flexible Manufacturing

Inquire Now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

ZYCO

1: The pure electric bending machine adopts advanced CNC technology and servo motor drive, has a high-precision transmission structure, and the positioning accuracy can reach 0.01mm, which can ensure the consistency and high quality of each product ‌12.

2: The transmission system design of the pure electric bending machine is simple, abandoning the traditional complex components such as cylinders, pumps, valves, seals and oil pipes, greatly reducing maintenance costs. ‌

3: The pure electric bending machine does not use hydraulic oil, which reduces the environmental pollution caused by hydraulic oil leakage and waste oil treatment. It has high transmission efficiency and low energy consumption, which meets the environmental protection requirements of modern manufacturing industry

Control system

Advanced Y-axis control algorithm, which can control both closed-loop valves and open-loop valves.

10.1" high-resolution true color TFT display.

With mold/material/product library, supporting servo or frequency conversion control.

View More +

Back gauge

We use imported ball screws and linear guides instead of traditional screws. This choice improves the accuracy and consistency of our manufacturing process.

Our entire back gauge system is subjected to high temperature tempering to eliminate internal stress, improve the plasticity and toughness of the metal, and prevent the loss of accuracy due to frame deformation.

View More +

Servo motor

ZYCO adopts the famous Siemens motor, which has the advantages of high quality and long life.

Low noise and more energy-saving.

Brand selection, guaranteed after-sales.

View More +

Fast clamping device

Using electric or electro-hydraulic drive, the clamping action is rapid, significantly shortening workpiece clamping time and improving production efficiency.

Usually integrated with a CNC system, it allows for one-button operation or programmed control, reducing manual intervention and providing fast response.

View More +

Self-lubricating system

The system automatically completes the lubrication process through preset programs or sensor signals.

The self-lubricating system typically uses a centralized lubrication method, forcibly and actively delivering lubricating oil to all critical friction points through pipelines and distributors.

View More +

Internal Structure Display

For more detailed specifications, please don't hesitate to contact us.

Hydraulic bending machine structure diagram

1.Rack group 2.Upper mold 3.Screw device 4.Y-axis guide rail 5.Slider 6.Y-axis negative limit stop

7.Hex nuts 8.High strength hexagon 9.Lower mold 10.Lower mold holder

11.Workbenchsocket bolts 12.Rail pressure block T2 13.S800-Rail pressure block T2

Processing Workpiece Drawing

Sample display

Mode	Nominal pressure	Workbench	Column spacing	Throat Depth	Slider stroke	Max opening height	Backgauge stroke	Maximum speed of slider	Main Power	Number of axes	Host size (length, width,height)	Machine weight
TYPE	（T）	（mm）	（mm）	（mm）	（mm）	（mm）	（mm）	（mm/s）	（Kw)	(Y,X,R)	（mm）	（kg）
PE3/200	3	200	296	150	120	420	150	200	2*1	3(Y,X,R)	6006701750	550
PE6/400	6	400	370	180	120	420	180	200	3*1	2(Y,X,R)	7508002050	750
PE12/600	12	600	520	200	120	420	200	200	5.5*1	3(Y,X,R)	10009702100	1150
PE18/800	18	800	720	250	120	420	350	200	7.5*1	3(Y,X,R)	10009702100	1800
PE12-600S	12	600	520	200	120	450	200	200	3.0*2	4(Y1,Y2,X,R)	1009702100	1250
PE18/800S	18	800	720	250	120	420	350	200	5.5*2	4(Y1,Y2,X,R)	10009702100	1800
PE300/1250S	30	1250	1160	300	150	450	500	200	7.0*2	4(Y1,Y2,X,R)	14001200220	2350
PE40/1600S	40	1600	1510	300	150	470	500	200	7.5*2	4(Y1,Y2,X,R)	17501200220	3000
PE50/2000S	50	2000	1900	350	150	480	500	200	15*2	4(Y1,Y2,X,R)	21001200220	4200

Partners

Customer photos

Certificate of Honor

FAQ

Q: Can I use the press brake for first-piece testing before mass production?

A: Yes. A first-piece test is recommended when processing a new workpiece. The operator can verify the bending sequence, dimensions, tooling, and angles before applying the finalized program to subsequent parts.

Q: Can the press brake process parts with several bends close to each other?

A: Yes, provided that the workpiece geometry allows sufficient clearance between the tooling and previously formed sections. For complex parts, bending sequence and tooling selection should be evaluated before production.

Q: How can I avoid marks on stainless steel during press brake bending?

A: Surface protection can be improved by using suitable tooling, selecting an appropriate die opening, and controlling the contact between the workpiece and tooling. Protective materials can also be considered when surface appearance is particularly important.

Q: How can springback be compensated during press brake bending?

A: Springback can be compensated by adjusting the bending angle or using an appropriate bending method and tooling combination. The CNC system can help apply consistent compensation once the correct production parameters have been established.
