Stainless steel sheet 1390 cnc metal plate laser cutting machine with nice price

This laser cutting machine utilizes intelligent air control technology and is equipped with internationally renowned pneumatic components, significantly improving operational efficiency and reducing maintenance costs. Core components include premium domestically produced Bochu system and Chuangxin laser, ensuring long-term stable operation and superior processing quality.

Order(MOQ) :
1
Product Origin :
Nanjing,Jiangsu,China
Weight :
3000kg
Warranty time :
2 years
Automation :
Automatic
Key selling points :
High precision, high speed, save material, save labor

Inquire Now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

ZYCO

1. This product features a composite design of a hollow structure and internal fish-scale patterns, significantly enhancing its fire safety.

2. The entire body undergoes a high-temperature annealing process, combined with high-speed sandblasting and stress relief technology to effectively prevent structural deformation and ensure the device maintains excellent dimensional stability even after 20 years of long-term use.

3. Furthermore, the device boasts high-speed operation, demonstrating outstanding dynamic response and swift acceleration.

Control system

Professional control system software tailored specifically for Chinese fiber laser cutting machines.

Easy installation, simplified calibration, and flexible adjustment of power and cutting speed.

Users can independently set linear cutting speeds, and a comprehensive built-in cutting process database is available.

View More +

Automatic lubrication

A timed intelligent lubrication system automatically distributes lubricant based on operating time, ensuring efficient maintenance and significantly extending the life of mechanical components.

View More +

Ordinary hydraulic plate bending machine

High-Precision Cutting Head

Equipped with autofocus, it intelligently adjusts the focus position based on material thickness.

Equipped with an anti-collision protection mechanism.

Suitable for multi-focus cutting, significantly improving cutting efficiency and quality.

View More +

Water chiller

Integrated with multiple protection features such as overtemperature warning, flow monitoring, and water level alarms, ensuring comprehensive equipment stability.

View More +

Laser generator

Maintains a stable beam parameter product (BPP) across the entire power range, ensuring excellent beam quality and a fine spot.

High energy density and extremely small divergence laser output enable precise cutting.

High-power laser significantly increases cutting speed, shortens production cycles, and optimizes production efficiency.

View More +

Internal Structure Display

For more detailed specifications, please don't hesitate to contact us.

Bed welding structure

Original machine tool lubrication system

--The precision of the machine tool comes from the gear rack and linear guide.

--Gear rack: Determine the precision.

--Linear guide: Determine the direction.

Generally, the conventional oiling of machine tool manufacturers is once every 4 hours. There is no loop system in the oil circuit, and the oil is easy to overflov and drip onto the plate, affecting the cutting effect.However, our original and improved loop system can oil once every half an hour,shorten the oiling time, increase the oiling frequency, increase the number ofoiling times for gear racks and linear quides, reduce the wear of racks and guides, improve the precision, and extend the service life of the machine tool.

Product Parameters

1. Stainless steel cutting process parameters			Cutting head collimator focal length (mm): 100 (1kw-/15kw) Cutting head focusing lens focal length (mm): 125 (≤2KW); 150 (3KW, 4KW); 200 (≥6KW)
Cutting Laser Power/Speed (m/min (w) /Board Thickness (mn)	1000	2000	3000	4000	6000	8000	10000	12000	15000
1	20-22	45-50	60-70	40-45	45-50	47-55	50-55	54-58	60-65
2	6.5-7.0	13-15	22-27	20-25	30-35	34-39	39-42	41-46	44-49
3	2.5-3.0	5.0-6.0	8.0-10	11-13	17-20	21-25	23-29	30-33	32-37
4	1.2-1.4	3-3.5	6.0~70	6.5-7	13-15	18-21	19-23	22-26	24-28
6		0.9-1.2	2.1-2.6	2.5-3	6-6.5	7-8.5	10-12	16	16-18
8		0.4-0.6	0.85-1.2	1.6-1.8	3.8-4.2	4.1-4.8	7-7.5	10	12-14
10		0.2-0.5	0.6~0.8	0.8-0.9	1.6-2.1	2.8-3.2	5-5.8	6-7	7-9
12			0.5-0.6	0.7-0.75	1.1-1.4	1.6-2.0	3.3-3.7	4-4.5	4.5-5
14				0.5-0.55	0.9-1.1	1.3-1.55	1.7-2.1	2.1-2.8	2.5-3.1
16					0.6-0.8	1.1-1.3	1.6-1.7	1.8-2.3	2-2.5
18					0.5-0.65	0.7-0.82	1.1-1.25	1.2-1.4	1.65-1.8
20					0.4-0.5	0.65-0.75	0.8-1.1	1.3-1.6	1.4-1.8
25						0.4-0.5	0.45-0.5	0.55-0.65	0.6-0.7
30						0.3-0.33	0.35-0.4	0.45-0.55	0.45-0.6
35							0.22-0.25	0.3-0.45	0.3-0.4
40								0.25-0.34	0.2-0.35
45								0.16-0.23	0.16-025
50									0.12-02
Note: The green fonts are stable cutting data under most production conditions; the blue fonts are cutting data that may be achieved under some better production conditions; the red fonts are extreme cutting data achieved under laboratory conditions.

2. Carbon steel cutting process parameters			Cutting head collimator focal length (mm): 100 (1kw-/15kw) Cutting head focusing lens focal length (mm): 125 (≤2KW); 150 (3KW, 4KW); 200 (≥=6KW)
Cutting Laser power/Speed (m/min(w) /Board thickness (mm)	1000	2000		3000	4000	6000	8000	10000	12000	15000
1	22-25	42-47		48-55	42-45	45-48	46-52	49-55	50-58	55-60
2	5-6	5-6		5-6	18-21	29-35	32-37	34-39	35-41	36-42
3	2.8-3.0	4.0-4.5		3.5-4.3	4-4.5	4-5	4-5	4-5	4-5	26-31
4	2.2-2.4	3.6-4.0		3.2-4	3.5-4	3.5-4	3.5-4	3.5-4	3.5-4	19-22
6	1.3-1.6	2.2-2.7		2-2.5	2.4-2.7	2.8-3.3	2.8-3.1	2.8-3.2	2.8-3.3	14-17
8	1.0-1.2	1.4-1.8		1.8-2.4	2-2.3	2.1-2.4	2.1-2.45	2.1-2.45	2.1-2.6	2.1-2.6
10	0.8-1.0	1.1-1.5		1.4-1.8	1.8-2	2-2.2	2.0-2.3	2.1-2.5	2.1-2.5	2.1-2.6
12		0.96-1.2		0.9-1.1	1.5-1.6	1.9-2.0	1.9-2.0	1.9-2.1	1.9-2.1	1.85-2.1
14		0.9-1.1		0.75-0.9	1.2-1.4	1.5-1.7	1.6-1.75	1.7-1.85	1.66-1.75	1.7-18
16		0.7-0.8		0.7-0.8	1-1.1	1.25-1.35	1.45-1.6	1.5-1.6	1.55-1.65	1.6-1.7
18		0.6-0.7		0.6-0.8	0.8-0.95	1.15-1.3	1.2-1.45	1.35-1.4	1.4-1.55	1.5-1.6
20		0.5-0.6		0.6-0.75	0.6-0.7	0.9-1.0	1.0-1.2	1.1-1.3	12-1.3-	1.4-1.5
25				0.5-0.55	0.45-0.55	0.5-0.55	0.5-0.6	0.65-0.7	0.65-0.7	0.8-1.0
30							0.3-0.35	0.4-0.42	0.4-0.45	0.64-0.8
35							0.25-0.3	0.37-0.38	0.25-0.28	0.4
40								0.25-0.26	0.2-0.26	0.32
45									0.18-0.22	0.25
50									0.15	0.18
Note: 1) The green font is the stable cutting data under most production conditions; the blue font is the cutting data that may be achieved under some better production conditions; the red font is the limit cutting data achieved under laboratory conditions. 2) The underlined data is the nitrogen cutting data.

About Us

Why Choose Us

Partners

Customer photos

Certificate of Honor

FAQ

Q: How to get a accurate quotation from us?

A: Please provide us the details of material, max thickness and max width.

Q: Can you do OEM service?

A: Yes, we can. your design is accepted , your own logo can be used on the machine.

Q: What's the shipping cost from china to your country?

A: We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.

Q: Do you accept LC payment?

A: Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable.

Q: How to operate this machine?

A: Video line of our factory or we send you the video directly.

Q: What about commissioning service?

A: We can offer commissioning service, the buyer need to afford plane tickets.

Q: Do you offer teaching & training?

A: Training at supplier's plant.

Hot Tags : Stainless steel plate laser cutting machine Metal Sheet Press Brake laser cutting machines Iron plate laser cutting machine Carbon steel plate laser cutting machine Alloy plate laser cutting machine industrial laser cutting machines customization laser cutting machines

Leave A Message

Are you interested in collaborating and working with us? Please don't hesitate to contact us.

RELATED PRODUCTS

ZYCO 2000w 1-10000mm/min 2000*4000mm cnc Single platform laser cutting machines

The laser cutting machine has an advanced air circuit control system design and is equipped with imported pneumatic components to effectively reduce the cost of use. The use of domestic first-line brand accessories, such as Bochu system and Chuangxin laser, ensures the stability and high quality of the equipment.

ZYCO 1000-12000w Easy to Operate full enclosure single plate steel cutting Laser cutting machine

The fully enclosed series fiber laser cutting machine is equipped with a swap table and protective cover, which can complete the table switching in just 15 seconds. The cutting and loading processes can be carried out simultaneously, which can significantly improve production efficiency.

Great discount Professional automatic 6000W CNC hydraulic fiber laser cutting machine for heavy duty cutting

This laser cutting machine features an optimized air control system design and is equipped with internationally renowned pneumatic components, significantly improving its economical efficiency. It also uses core components from leading domestic brands such as Bochu system and Chuangxin laser, doubly guaranteeing operational stability and superior performance.

Cnc fiber laser cutting machine for iron steel aluminum copper plate sheet

This machine utilizes a fully enclosed fiber laser cutting system, integrated with a highly efficient exchange table and safety devices. Its 15-second rapid switching technology enables seamless dual-station integration, enabling parallel loading and processing, effectively increasing the machine's overall production capacity. Its modular design significantly reduces production cycle time and optimizes time utilization within the processing flow while ensuring operational safety.

Stainless steel sheet 1390 cnc metal plate laser cutting machine with nice price

This laser cutting machine utilizes intelligent air control technology and is equipped with internationally renowned pneumatic components, significantly improving operational efficiency and reducing maintenance costs. Core components include premium domestically produced Bochu system and Chuangxin laser, ensuring long-term stable operation and superior processing quality.

Leave your email address and requirements, our professional sales team will develop the most suitable solution for you.

About us

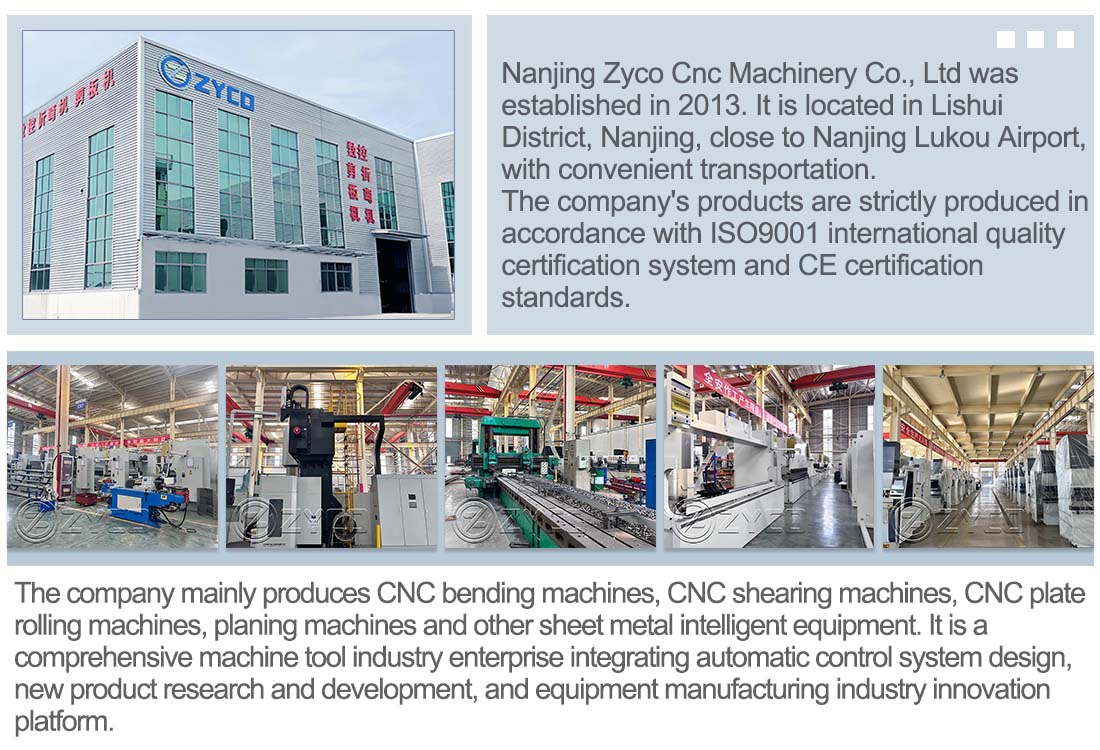

Nanjing ZYCO CNC Machinery Co., Ltd. was established in 2013. It is a comprehensive machine tool industry enterprise integrating automatic control system design, new product research and development, and equipment manufacturing innovation platform. Our products are strictly produced in accordance with the lS00991 international quality certification system and CE certification standards. With strong technical innovation capabilities as support, we sincerely provide users with excellent and applicable products and services.
