China 6 Meter Metal Sheet Cutting Machine Guillotine Electric Shear Suppliers

China 6 Meter Metal Sheet Cutting Machine Guillotine Electric Shear Suppliers

The QC11K hydraulic guillotine shear, with its adjustable blade gap and angle, is a global favorite for plate shearing clients. This machine offers significant advantages when shearing plates thicker than 13 mm. Its competitive pricing and superior shearing accuracy make it an ideal choice for thick plate processing.

Order(MOQ) :
1
Product Origin :
Nanjin
Weight :
12000kg
Warranty time :
2 years
Automatic level :
Fully Automatic
Key selling points :
Low Maintenance Cost

Inquire Now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

ZYCO

1. Fully Welded Box-Type Bed Frame: The shearing machine utilizes an integrated, fully welded box-type bed frame, forming a monolithic structure with the worktable.

This frame provides exceptional structural strength and effectively balances the torque loads generated by shearing forces.

2. Vertical Linear Shearing Mechanism: The machine utilizes a shearing mechanism that moves vertically relative to the lower blade. This design minimizes shearing deformation while ensuring extremely high linear accuracy during the shearing process.

3. Precision Blade Positioning System: The guillotine shear is equipped with a high-precision blade positioning mechanism. This ensures even wear of each blade during repeated shearing operations, ensuring consistent cuts and a smooth surface.

Control system

This machine is equipped with the ESTUN brand E21S CNC system, featuring a user-friendly interface.

It precisely controls the stopper position and blade angle.

It features a counting function for easy production management.

View More +

Main motor

The main motor is a Siemens brand, offering reliable quality and a long service life.

It features low noise and high energy efficiency.

Brand guarantee, with comprehensive after-sales service.

View More +

Back gauge

The back gauge utilizes an imported ball screw and linear guide structure, replacing the traditional lead screw design, significantly improving machining accuracy and process stability.

The entire system undergoes high-temperature tempering to effectively eliminate internal stress, enhance material plasticity and toughness, and prevent precision deviations caused by frame deformation.

View More +

Hydraulic system

The hydraulic transmission system offers excellent performance, high pressure and high temperature resistance.

Excellent sealing ensures long-term stable operation.

View More +

Oil pump

The oil pump is constructed of high-strength cast iron and features a unique noise-reducing structural design, reducing sensitivity to oil contamination and significantly extending its service life.

This precision-crafted gear pump combines exquisite appearance with superior performance.

View More +

Angle adjustment

Equipped with electric angle adjustment for easy operation.

The blade gap can be intelligently adjusted to suit different plate thicknesses, ensuring precise shearing and beautiful finished products.

View More +

Internal Structure Display

For more detailed specifications, please don't hesitate to contact us.

1. oil tank 2. Upper knife rest 3. Stop beam 4. Lower tool rest 5. oil tank 6. Oil cylinder 7.Presser foot 8. Front support material

Mode	Cutting Thickness	Cutting Length	Cutting Angel	Backgauge Stroke	Approx Weight	Overall Length	Overall Width	Overall Height	Main Power
TYPE	（mm）	（mm）	（°）	（mm）	（T）	（mm）	（mm）	（mm）	（Kw)
6*2500	6	2500	0.5-1.5	750	5.5	3800	1700	1950	7.5
6*3200	6	3200	0.5-1.5	750	6.5	4100	1700	2000	7.5
6*4000	6	4000	0.5-1.5	750	8.5	5200	1840	2150	7.5
6*5000	6	5000	0.5-1.5	750	11	6000	1840	2150	11
6*6000	6	6000	0.5-2	750	16	7000	2100	2300	11
8*2500	8	2500	0.5-2	750	6	3800	1700	1950	11
8*3200	8	3200	0.5-2	750	7	4100	1700	1950	11
8*4000	8	4000	0.5-2	750	9.5	5200	1700	1950	11
8*5000	8	5000	0.5-2	750	11.5	6000	2400	2000	11
8*6000	8	6000	0.5-2	750	17	7000	2100	2350	11
8*8000	8	8000	0.5-2	750	28	8800	2130	2350	15
10*2500	10	2500	0.5-2	750	6.8	3800	1800	1950	11
10*3200	10	3200	0.5-2	750	8.5	4300	1830	2000	11
10*4000	10	4000	0.5-2	750	12.5	5200	2100	2000	15
10*5000	10	5000	0.5-2	750	18	6000	2100	2000	15
10*6000	10	6000	0.5-2	750	24	7000	2100	2300	15
10*8000	10	8000	0.5-2	750	32	8800	2100	2300	18.5
12*2500	12	2500	0.5-2.5	750	8.5	3800	1830	2390	15
12*3200	12	3200	0.5-2.5	750	10.5	4300	1830	2390	18.5
12*4000	12	4000	0.5-2.5	1000	13.5	5200	1830	2390	18.5
12*6000	12	6000	0.5-2.5	1000	26	7000	1930	2650	18.5
12*8000	12	8000	0.5-2.5	1000	46	8950	2130	2850	22
16*2500	16	2500	0.5-2.5	1000	10.8	3800	1940	2830	22
16*3200	16	3200	0.5-2.5	1000	12.5	4300	1940	2830	22
16*4000	16	4000	0.5-2.5	1000	16.5	5200	1980	2830	22
16*5000	16	5000	0.5-2.5	1000	25	6000	2600	2830	22
16*6000	16	6000	0.5-2.5	1000	34	7000	2700	2830	22
16*8000	16	8000	0.5-2.5	1000	70	8950	2900	3430	30
20*2500	20	2500	0.5-2.5	1000	13	3800	1980	2830	22
20*3200	20	3200	0.5-2.5	1000	17	4300	1900	2830	22
20*4000	20	4000	0.5-2.5	1000	22	5200	2600	2900	22
20*6000	20	6000	0.5-2.5	1000	45	7000	3000	3000	30
30*2500	30	2500	1-3.5	1000	24	3800	1900	2830	37
30*3200	30	3200	1-3.5	1000	29	4300	1900	3000	37
40*2500	40	2500	1-3.5	1000	36	3800	2000	3000	45

About Us

The company mainly produces CNC bending machines, CNC shearing machines, CNC plate rolling machines, grooving machines and other sheet metal intelligent equipment. it is acomprehensive machine tool industry enterprise integrating automatic control system design，new product research and development, and equipment manufacturing industry innovation platfomm.

Why Choose Us

The company has accumulated decades of experience in CNC bending machines CNC shearing machines, CNC plate rolling machines, grooving machines and other sheet metal intelligent equipment.We focus on reputation and customer opinions,and our products are produced in stricta ccordance with the ISO 0991 international quality certification system and CE certification standards.

hydraulic press brake machine price

Partners

Customer photos

Certificate of Honor

FAQ

Q: How to get a accurate quotation from us?

A: Please provide us the details of material, max thickness and max width.

Q: Can you do OEM service?

A: Yes, we can. your design is accepted , your own logo can be used on the machine.

Q: What's the shipping cost from china to your country?

A: We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.

Q: Do you accept LC payment?

A: Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable.

Q: How to operate this machine?

A: Video line of our factory or we send you the video directly.

Q: What about commissioning service?

A: We can offer commissioning service, the buyer need to afford plane tickets.

Q: Do you offer teaching & training?

A: Training at supplier's plant.

Hot Tags : QC11K hydraulic shearing machine Carbon steel plate hydraulic shear machine Iron plate shearing machine Hydraulic guillotine shearing machine shearing machine for metal 10mm cnc laser cutting machine Stainless steel plate shearing machine Sheet metal cutting machine Aluminum sheet cutting machine

Leave A Message

Are you interested in collaborating and working with us? Please don't hesitate to contact us.

RELATED PRODUCTS

ZYCO QC11K 6*2500 12*3000 20*3000 guillotine for metal sheet steel

The QC11K hydraulic guillotine shear is a popular choice for global buyers for plate shearing due to its adjustable blade gap and angle. It has several advantages over other types of shears when shearing plates thicker than 13 mm, including favorable prices and high shearing accuracy.

ZYCO Own Brand 12 3200 6000 hydraulic plate cutter hydraulic guillotine shearing machine

QC12K hydraulic swing shear is an affordable shearing equipment. Our swing shear is the current market leader, providing high-quality and cost-effective solutions for cutting full-length and extra-wide plates. Our QC12K series shears use the latest technology. We have strictly processed and assembled the shear angle of the knife frame to ensure the precision and accuracy of each cut.

Cutting Gap Control Qc12 12X3200 Cnc Sheet Metal Hydraulic Shear Shearing

The QC12K hydraulic swing shear is a cost-effective shearing machine. As a market-leading swing shear, it provides a high-quality and economical solution for shearing full-length and extra-wide plates. The QC12K series shears integrate the latest technology, with precision-machined blade angles and rigorous assembly to ensure precise cuts every time.

China 6 Meter Metal Sheet Cutting Machine Guillotine Electric Shear Suppliers

The QC11K hydraulic guillotine shear, with its adjustable blade gap and angle, is a global favorite for plate shearing clients. This machine offers significant advantages when shearing plates thicker than 13 mm. Its competitive pricing and superior shearing accuracy make it an ideal choice for thick plate processing.

Leave your email address and requirements, our professional sales team will develop the most suitable solution for you.

About us

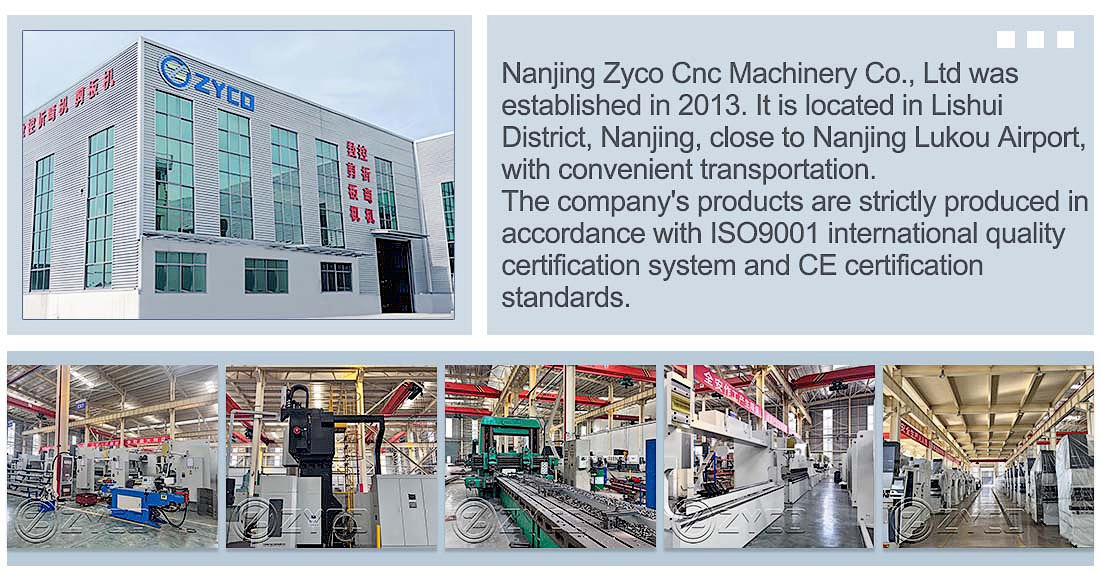

Nanjing ZYCO CNC Machinery Co., Ltd. was established in 2013. It is a comprehensive machine tool industry enterprise integrating automatic control system design, new product research and development, and equipment manufacturing innovation platform. Our products are strictly produced in accordance with the lS00991 international quality certification system and CE certification standards. With strong technical innovation capabilities as support, we sincerely provide users with excellent and applicable products and services.
