Cutting Gap Control Qc12 12X3200 Cnc Sheet Metal Hydraulic Shear Shearing

Cutting Gap Control Qc12 12X3200 Cnc Sheet Metal Hydraulic Shear Shearing

The QC12K hydraulic swing shear is a cost-effective shearing machine. As a market-leading swing shear, it provides a high-quality and economical solution for shearing full-length and extra-wide plates. The QC12K series shears integrate the latest technology, with precision-machined blade angles and rigorous assembly to ensure precise cuts every time.

Order(MOQ) :
1
Product Origin :
Nanjin
Weight :
8000kg
Warranty time :
2 years
Automatic level :
Fully Automatic
Key selling points :
Low Maintenance Cost

Inquire Now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

ZYCO

1. The shearing machine utilizes a fully welded box-shaped bed frame structure, tightly connected to the worktable, creating a highly rigid unit. This structural design significantly enhances the frame strength and effectively offsets the torque generated by shearing forces.

2. During operation, the lower blade moves in a vertical linear motion. This motion minimizes shear deformation and ensures a precisely straight sheared edge.

3. The guillotine shearing machine features extremely high blade positioning accuracy. Even during extended, continuous shearing operations, the blade maintains uniform wear, ensuring a consistent, smooth sheared edge.

Control system

This machine is equipped with the ESTUN brand E21S CNC system, whose user-friendly interface provides a simple and convenient control experience.

The system utilizes variable frequency control technology, effectively improving stopper positioning accuracy.

A built-in production counter function allows users to monitor processing progress in real time.

View More +

Main motor

For core components, we use Siemens brand motors, renowned for their superior quality and durability.

Their low-noise operation and high efficiency create a quieter and more energy-efficient production environment.

View More +

Back gauge

For the drive system, we innovatively replace traditional lead screws with imported ball screws and linear guides. This improvement significantly improves processing accuracy and process consistency.

The entire backgauge system undergoes rigorous high-temperature tempering to effectively eliminate internal stress and enhance the material's plasticity and toughness, ensuring long-term stable operation of the frame without loss of precision.

View More +

Hydraulic system

The power transmission system demonstrates excellent performance, offering long-lasting high strength and durability.

The hydraulic system's excellent high-pressure and high-temperature resistance and reliable sealing ensure stable operation.

View More +

Oil pump

The oil pump components are constructed of high-strength cast iron and feature a unique internal noise-reducing design, offering excellent resistance to oil contamination and significantly extending its service life.

Advanced gear pump manufacturing technology not only imparts a refined appearance but also provides stable and reliable hydraulic power output.

View More +

Internal Structure Display

For more detailed specifications, please don't hesitate to contact us.

Mode	Thickness	Width	Cutting Angel	Material Intension	Backgauge travel	Cutting Times	Main Motor Power	Weight	Overall Dimension
TYPE	（mm）	（mm）	（°）	（KN/CM）	（mm）	（T/min）	（kw）	（kg）	LxWxH（mm)
4*2500	4	2500	1°30‘	≤450	20-600	16	5.5	3500	330016101620
4*3200	4	3200	1°30‘	≤450	20-600	14	5.5	4500	384016101620
4*4000	4	4000	1°30‘	≤450	20-600	10	5.5	6500	460017001700
4*6000	4	6000	1°30‘	≤450	20-600	8	7.5	11000	646021003200
6*2500	6	2500	1°30‘	≤450	20-600	14	7.5	5000	340016101620
6*3200	6	3200	1°30‘	≤450	20-600	12	7.5	6000	384016101620
6*4000	6	4000	1°30‘	≤450	20-600	8	7.5	8200	462017501700
6*5000	6	5000	1°30‘	≤450	20-600	6	11	10500	540018001900
6*6000	6	6000	1°30‘	≤450	20-600	5	11	16500	648021002300
8*2500	8	2500	1°30‘	≤450	20-600	10	7.5	6000	340017001700
8*3200	8	3200	1°30‘	≤450	20-600	8	7.5	7200	386017001700
8*4000	8	4000	1°30‘	≤450	20-600	8	7.5	8800	464017001700
8*5000	8	5000	1°40‘	≤450	20-600	8	11	11500	540021002000
8*6000	8	6000	1°40‘	≤450	20-600	8	11	18000	648021002350
10*2500	10	2500	2°	≤450	20-600	9	11	7300	340017001700
10*3200	10	3200	2°	≤450	20-600	9	11	8000	386017001700
10*4000	10	4000	2°	≤450	20-600	8	11	12050	465021002000
10*6000	10	6000	2°	≤450	20-1000	5	15	24000	650021002300
12*2500	12	2500	2°	≤450	20-600	9	18.5	9000	350021502000
12*3200	12	3200	2°	≤450	20-600	9	18.5	10800	388021502000
12*4000	12	4000	2°	≤450	20-1000	8	18.5	13000	468021502000
12*5000	12	5000	2°	≤450	20-1000	6	18.5	16000	590021502000
12*6000	12	6000	2°	≤450	20-1000	5	18.5	29500	690026002700
12*8000	12	8000	2°	≤450	20-1000	5	18.5	46500	900035003500
16*2500	16	2500	2°20‘	≤450	20-600	9	22	11000	350021502000
16*3200	16	3200	2°20‘	≤450	20-600	8	22	13000	388021502000
16*4000	16	4000	2°20‘	≤450	20-1000	8	22	16300	465021502200
16*5000	16	5000	2°20‘	≤450	20-1000	6	22	20000	590026002700
16*6000	16	6000	2°20‘	≤450	20-1000	5	22	36000	690027002700
16*8000	16	8000	2°20‘	≤450	20-1000	5	22	75000	900035003500
20*2500	20	2500	2°30‘	≤450	20-1000	8	22	15800	360023002500
20*3200	20	3200	2°30‘	≤450	20-1000	8	22	18500	415023502700
20*4000	20	4000	2°30‘	≤450	20-1000	5	22	21500	485026002700
20*6000	20	6000	2°30‘	≤450	20-1000	4	30	47000	670030003000
25*2500	25	2500	3°	≤450	20-1000	8	30	19000	360027002900
25*3200	25	3200	3°	≤450	20-1000	5	30	23000	420027002900
30*2500	30	2500	3°	≤450	20-1000	4	37	23500	370029003000
30*3200	30	3200	3°30’	≤450	20-1000	4	45	26000	420029003200
40*2500	40	2500	4°	≤450	20-1000	3	55	38000	360033003000
40*3200	40	3200	4°	≤450	20-1000	3	55	49000	430033003200

About Us

The company mainly produces CNC bending machines, CNC shearing machines, CNC plate rolling machines, grooving machines and other sheet metal intelligent equipment. it is acomprehensive machine tool industry enterprise integrating automatic control system design，new product research and development, and equipment manufacturing industry innovation platfomm.

Why Choose Us

Copper plate pure electric press brake

The company has accumulated decades of experience in CNC bending machines CNC shearing machines, CNC plate rolling machines, grooving machines and other sheet metal intelligent equipment.We focus on reputation and customer opinions,and our products are produced in stricta ccordance with the ISO 0991 international quality certification system and CE certification standards.

Nickel alloy plate hydraulic press brake

Partners

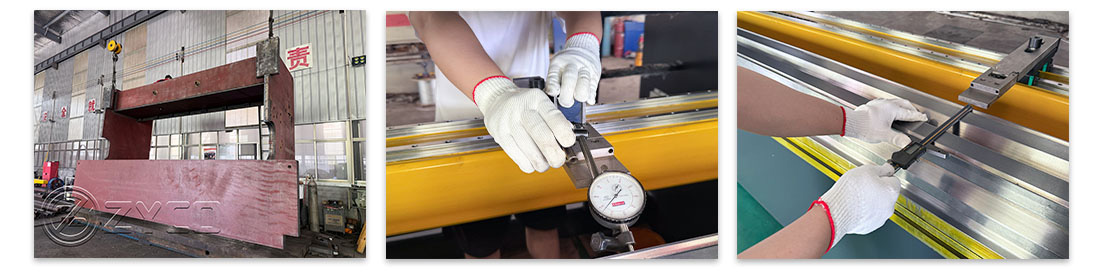

Customer photos

Certificate of Honor

FAQ

Q: How to get a accurate quotation from us?

A: Please provide us the details of material, max thickness and max width.

Q: Can you do OEM service?

A: Yes, we can. your design is accepted , your own logo can be used on the machine.

Q: What's the shipping cost from china to your country?

A: We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.

Q: Do you accept LC payment?

A: Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable.

Q: How to operate this machine?

A: Video line of our factory or we send you the video directly.

Q: What about commissioning service?

A: We can offer commissioning service, the buyer need to afford plane tickets.

Q: Do you offer teaching & training?

A: Training at supplier's plant.

Hot Tags : hydraulic Copper plate shearing machine Stainless steel plate shearing machine hydraulic Orichalcum plate shearing machine cnc press brake machine metal shearing machine Iron plate shearing machine hydraulic sheet shearing machine shearing machine sheet metal QC12K hydraulic shearing machine

Leave A Message

Are you interested in collaborating and working with us? Please don't hesitate to contact us.

RELATED PRODUCTS

ZYCO QC11K 6*2500 12*3000 20*3000 guillotine for metal sheet steel

The QC11K hydraulic guillotine shear is a popular choice for global buyers for plate shearing due to its adjustable blade gap and angle. It has several advantages over other types of shears when shearing plates thicker than 13 mm, including favorable prices and high shearing accuracy.

ZYCO Own Brand 12 3200 6000 hydraulic plate cutter hydraulic guillotine shearing machine

QC12K hydraulic swing shear is an affordable shearing equipment. Our swing shear is the current market leader, providing high-quality and cost-effective solutions for cutting full-length and extra-wide plates. Our QC12K series shears use the latest technology. We have strictly processed and assembled the shear angle of the knife frame to ensure the precision and accuracy of each cut.

Cutting Gap Control Qc12 12X3200 Cnc Sheet Metal Hydraulic Shear Shearing

The QC12K hydraulic swing shear is a cost-effective shearing machine. As a market-leading swing shear, it provides a high-quality and economical solution for shearing full-length and extra-wide plates. The QC12K series shears integrate the latest technology, with precision-machined blade angles and rigorous assembly to ensure precise cuts every time.

China 6 Meter Metal Sheet Cutting Machine Guillotine Electric Shear Suppliers

The QC11K hydraulic guillotine shear, with its adjustable blade gap and angle, is a global favorite for plate shearing clients. This machine offers significant advantages when shearing plates thicker than 13 mm. Its competitive pricing and superior shearing accuracy make it an ideal choice for thick plate processing.

Leave your email address and requirements, our professional sales team will develop the most suitable solution for you.

About us

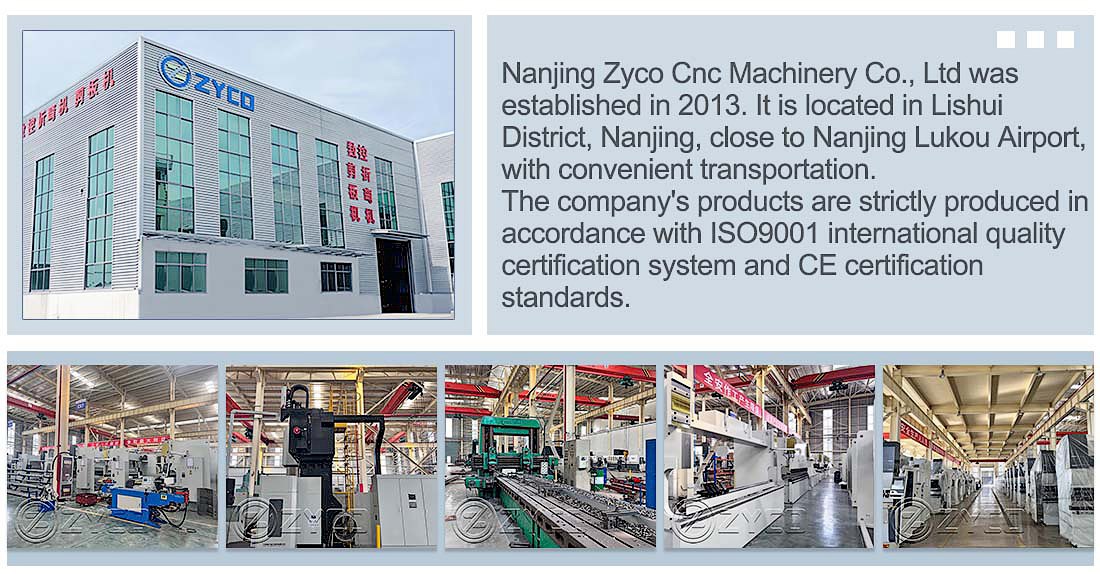

Nanjing ZYCO CNC Machinery Co., Ltd. was established in 2013. It is a comprehensive machine tool industry enterprise integrating automatic control system design, new product research and development, and equipment manufacturing innovation platform. Our products are strictly produced in accordance with the lS00991 international quality certification system and CE certification standards. With strong technical innovation capabilities as support, we sincerely provide users with excellent and applicable products and services.
