Horizontal vs Vertical Grooving Machines: Which one is more suitable for your factory?

In high-precision sheet metal forming processes, grooving is a core preliminary process that determines the accuracy of subsequent bending and the consistency of the workpiece's appearance —— If you choose the right machine, thick plates can be grooved deep and steadily, thin plates can be grooved shallow and evenly, which can improve the production line efficiency by 30%. Choose the wrong one, either the groove depth deviation of large plates will exceed 0.2mm, resulting in bending and warping, or small batches of workpieces will be repeatedly clamped and the production will become slower and slower.

Many sheet metal factories get stuck on the "Horizontal/Vertical" selection stage when purchasing grooving machines. Today, we'll help you accurately match the right model from three dimensions: process logic, processing scenarios, and technical boundaries.

1. Core Process Logic: Dual-Pass Efficiency vs Single-Pass Stability and Precision

The efficiency and precision of a grooving machine can be determined by its cutter head configuration and machining cycle logic, which determine its suitability for various scenarios：

Vertical Grooving Machine: 8-Blade dual-pass processing, the efficiency engine for thick plates and small components.

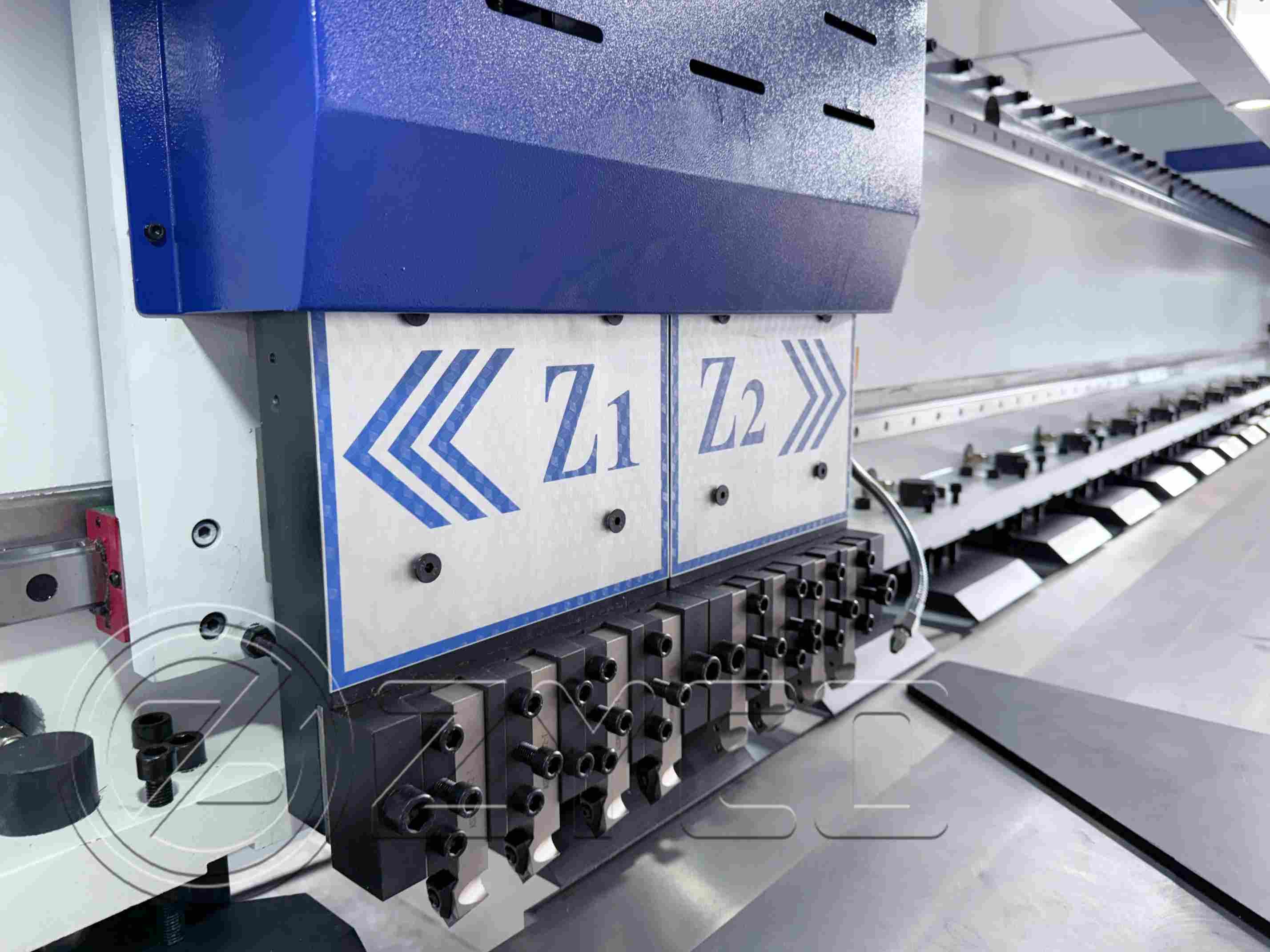

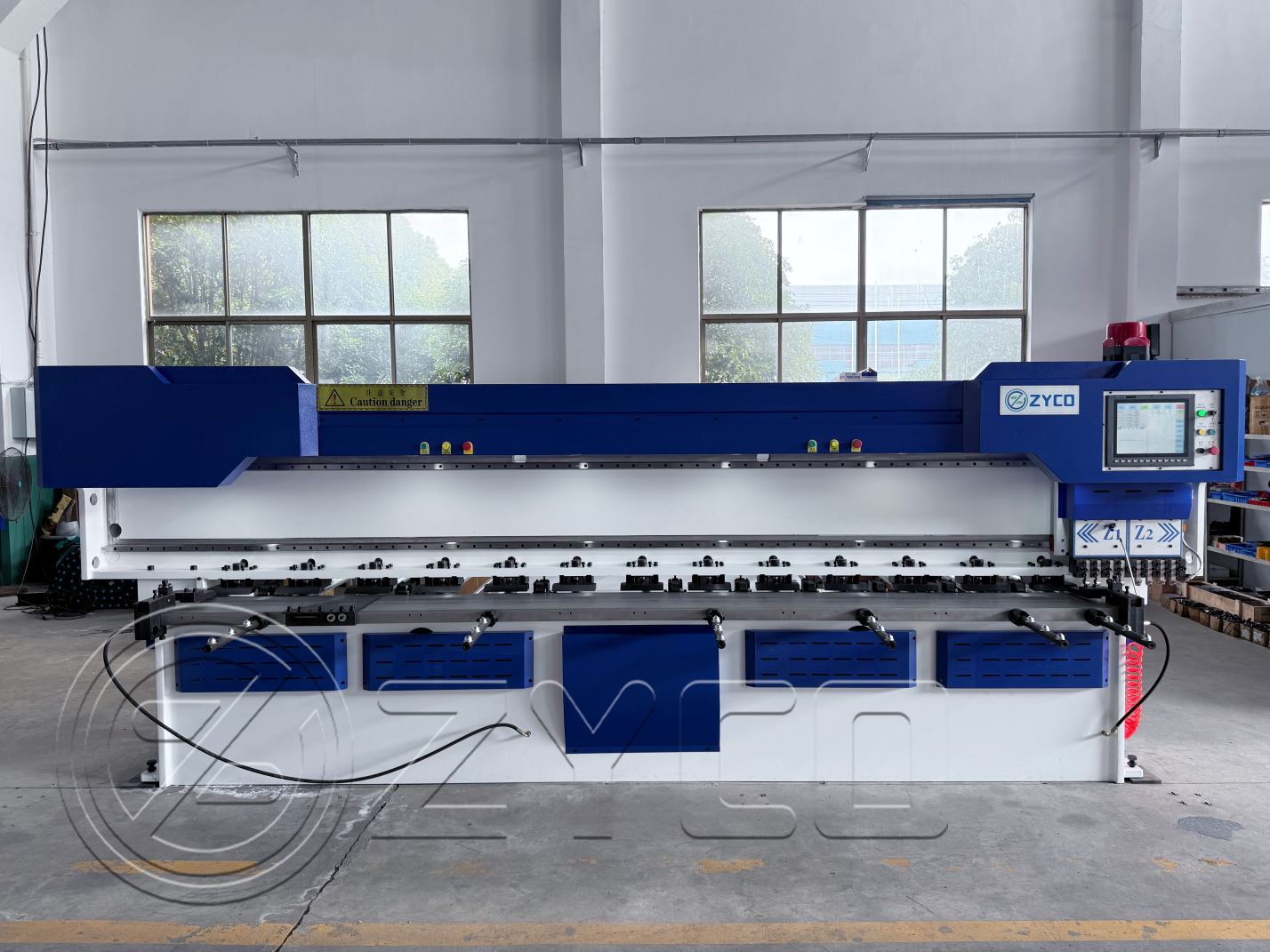

The vertical model is equipped with 8 sets of cutter heads and adopts "dual-pass machining logic": on the outgoing pass, 4 sets of cutter heads simultaneously perform grooving, and on the return pass, the other 4 sets of cutter heads are switched to continue machining, and 2 grooves can be machined in a single round trip.

This design is naturally suited to the processing needs of small batches and multiple categories. For example, when producing small equipment cabinet panels and decorative metal components, there is no need to frequently adjust the positioning of the boards, and the processing volume per unit time can be increased by more than 40%.

From a technical boundaries, vertical grooving machine stands out for its superior thick-material compatibility：

Maximum clamping thickness: 6-7mm

Recommended grooving depth: ≤2.5 mm (satisfies the requirements for deep-groove bending)

For factories that mainly produce thick workpieces and produce small batches of orders, vertical grooving machine are a cost-effective choice that balances "precision + efficiency".

Horizontal Grooving Machine: 4-Blade single-pass processing, the stability leader for high-precision grooving on large sheets.

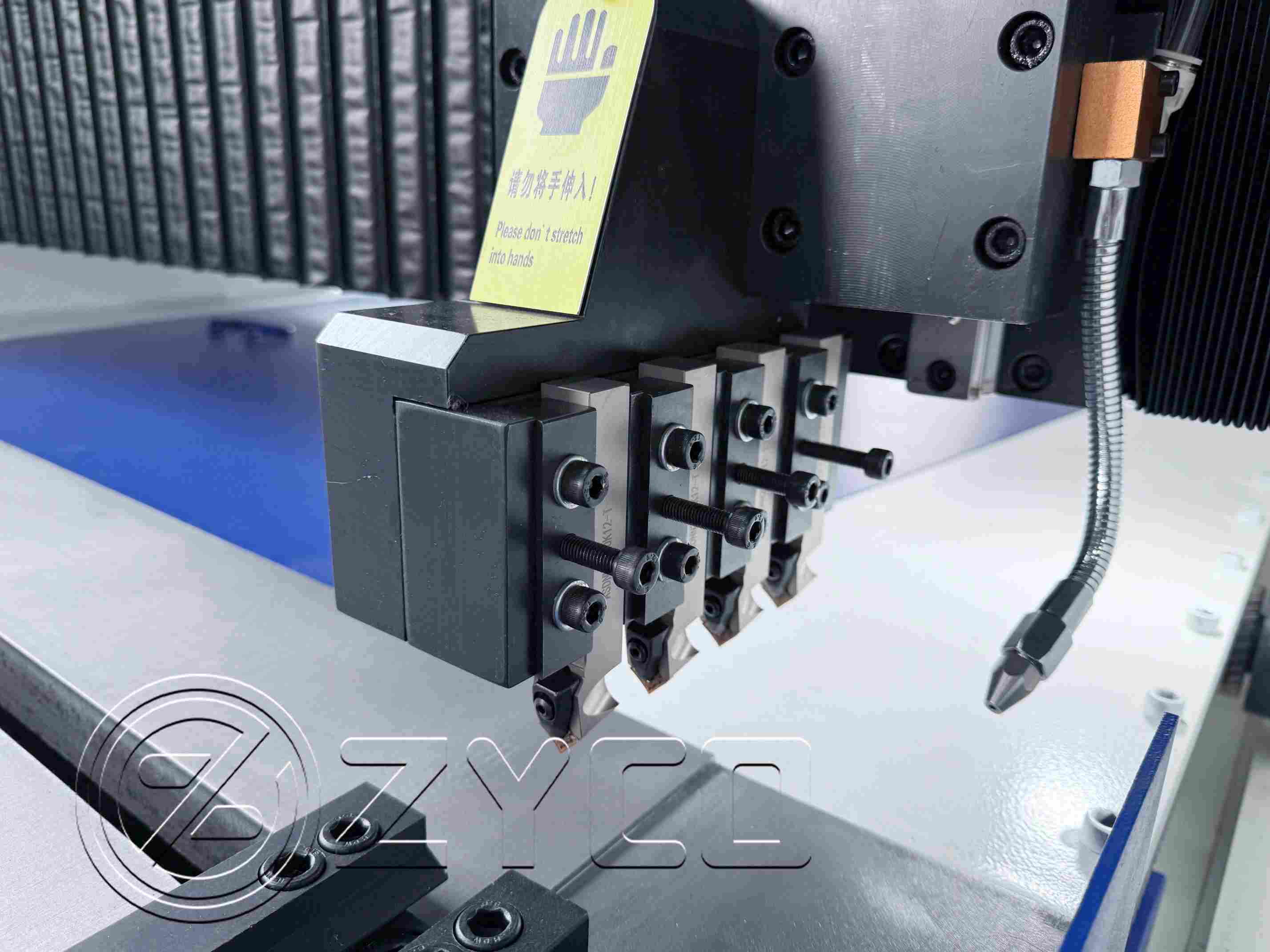

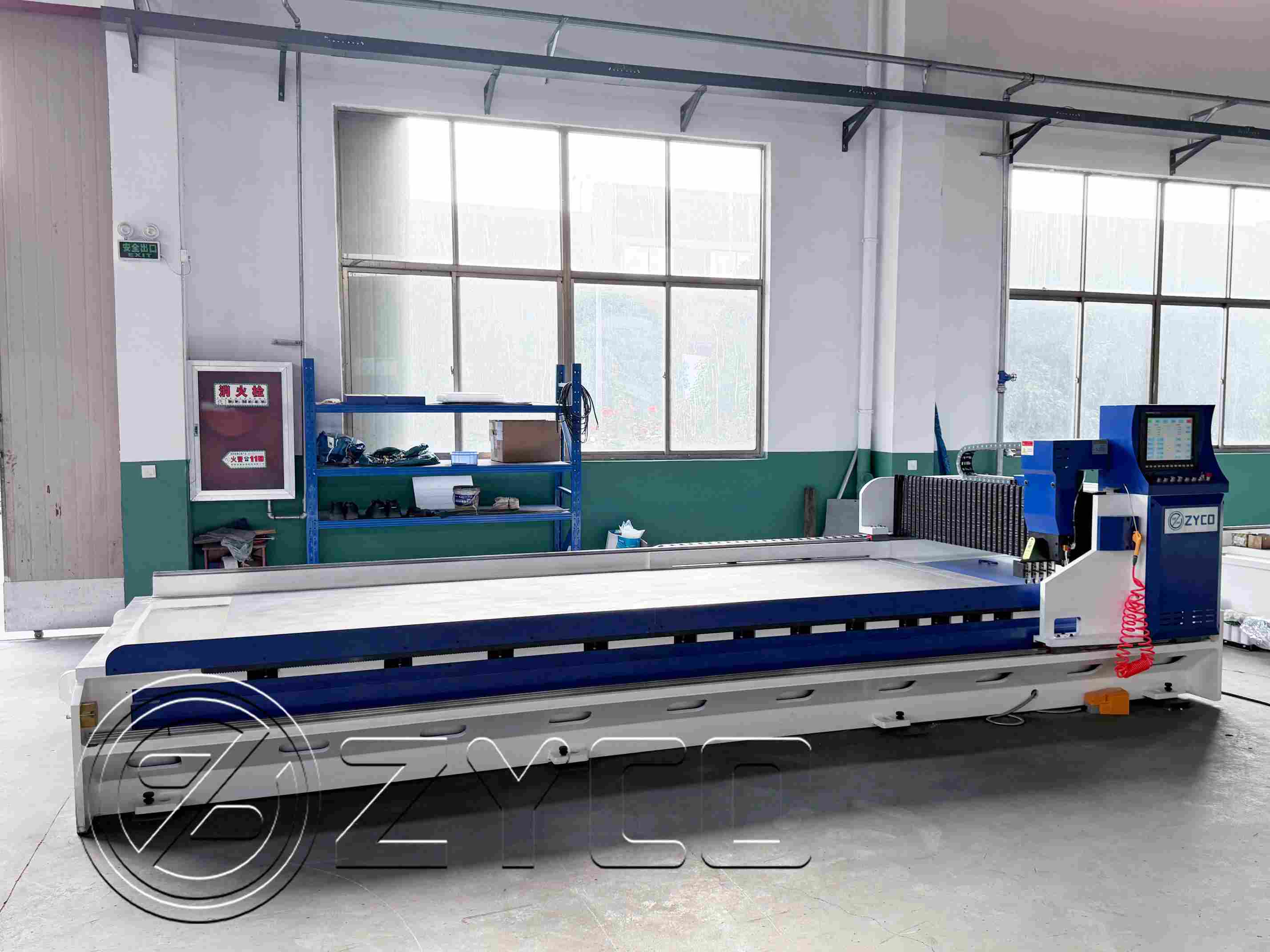

The horizontal model is equipped with 4 sets of cutter heads and adopts "single-pass processing logic": only the cutter head contacts the plate to make grooves on the outgoing pass, and the tool holder is automatically raised on the return pass, completing the processing of only 1 groove in a single round trip.

While it may seem like a "slower pace," it is actually an "exclusive optimization" for large-size panels: when wide curtain wall panels and long rail transit interior parts (length ≥ 3m) are laid flat on a horizontal long workbench, single-pass processing can avoid positioning errors caused by the back-and-forth movement of the panels, and the straightness deviation of the groove can be controlled within 0.05mm.

Its technical boundaries are more focused on "thin plate precision grooving":

Maximum clamping thickness: 4mm

Recommended grooving depth: ≤1.5 mm (meeting the aesthetic requirements of shallow-groove bending)

For factories focused on large panels and high-precision orders, the horizontal grooving machine are key equipment for ensuring a high yield of quality products.

2. Scenario-Based Selection Guide: Choosing the Right Machine = Saving 30% in Processing Costs

There is no “All-round model” only the model that fits your production line — match it to your factory’s core order types to quickly narrow down your options:

Opt for the vertical grooving machine first, if your factory:

✅ The core orders involve small cabinets and thick metal components (such as distribution box panels and equipment enclosures)

✅ Frequently processing 6-7mm thick plates and need grooves over 2 mm deep to support bending

✅ Orders are mainly small batches with high frequency, and prioritize processing efficiency per unit time

Opt for the horizontal grooving machine first, if your factory:

✅ The core orders involve large façade panels and long structural components (such as curtain wall units and rail-transit interior trims)

✅ Frequently process thin sheets up to 4 mm and require shallow grooves to ensure surface flatness after bending

✅ Orders are mainly large-size, high-precision products, with strict requirements for groove consistency

Mixed orders how to select?

If a factory deals with both small batches of thick materials and large-format thin plates, it can prioritize determining the main machine type based on the "core order percentage": for example, if 70% of the core orders are for small and thick parts, choose a vertical grooving machine; otherwise, choose a horizontal machine.

3. Model-Selection Traps: Don’t Let “Spec Obsession” Kill Your Production Efficiency

Many factories have fallen into these traps:

· Blindly choosing a vertical grooving machine (because the clamping plate can hold thicker materials), but the core order was for large panels, resulted in the panels wobbling during clamping, causing the groove depth deviation to exceed 0.2mm, and the bending rework rate to reach 15%;

· Following the trend and choosing a horizontal grooving machine (because of its higher precision), but frequently processing 6 mm material, forces you to slow down the machining speed—resulting in efficiency that’s 50% lower than a vertical model.

The essence of selection is to match the "process requirements of core orders", rather than simply pursuing the "maximum of parameters".

Which model should your factory use?

If you are still unsure, please contact us and send us the dimensions, material thickness, and daily production capacity requirements of your company's daily processing. We will directly match you with the corresponding machine model, and you can also schedule a trial processing of a sample machine on-site. After all, choosing the right machine model is the first step in reducing costs and increasing efficiency in sheet metal processing.
