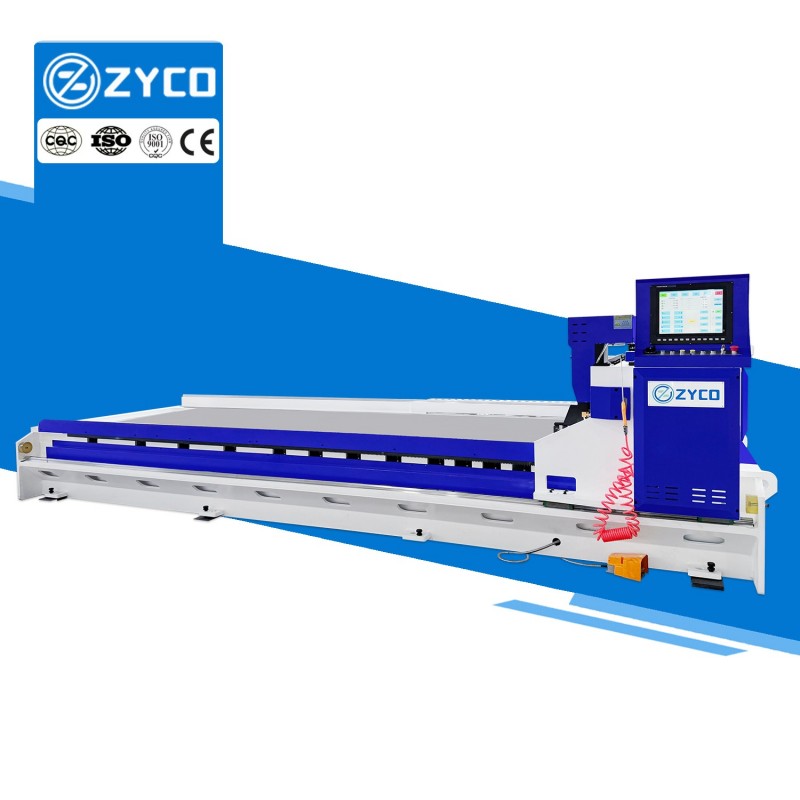

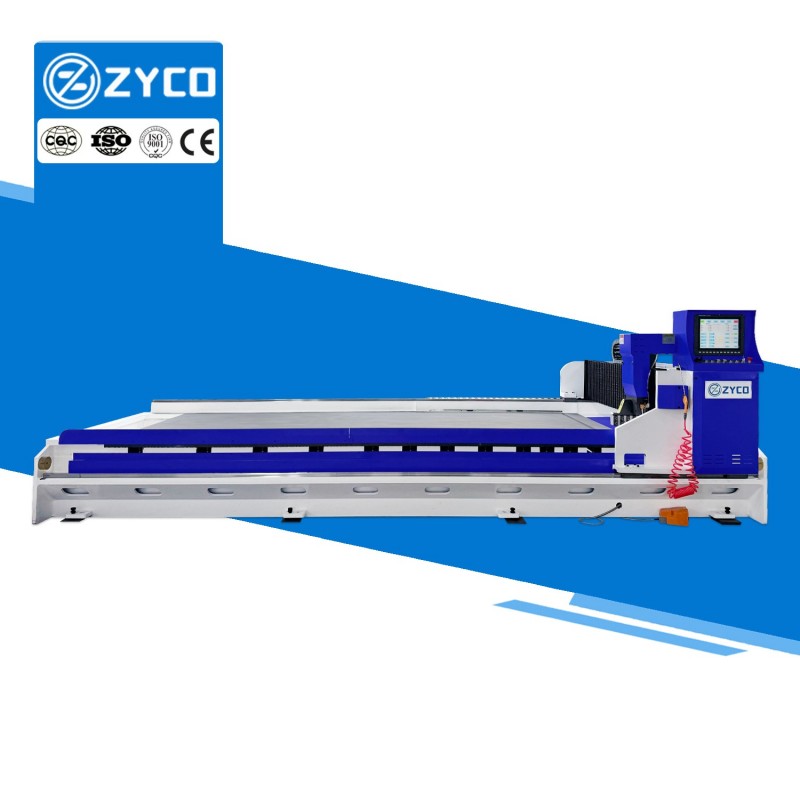

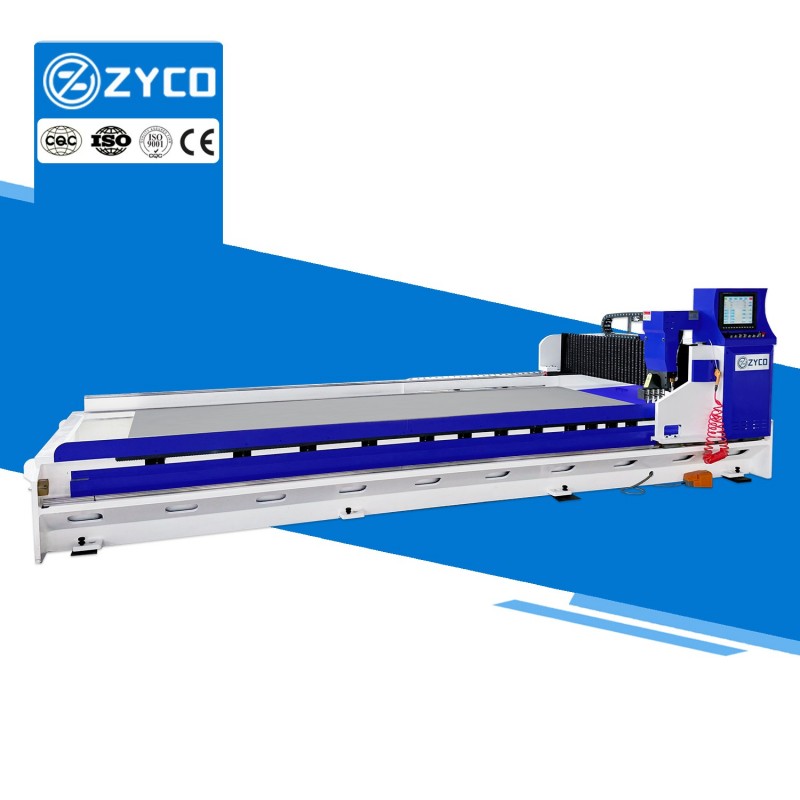

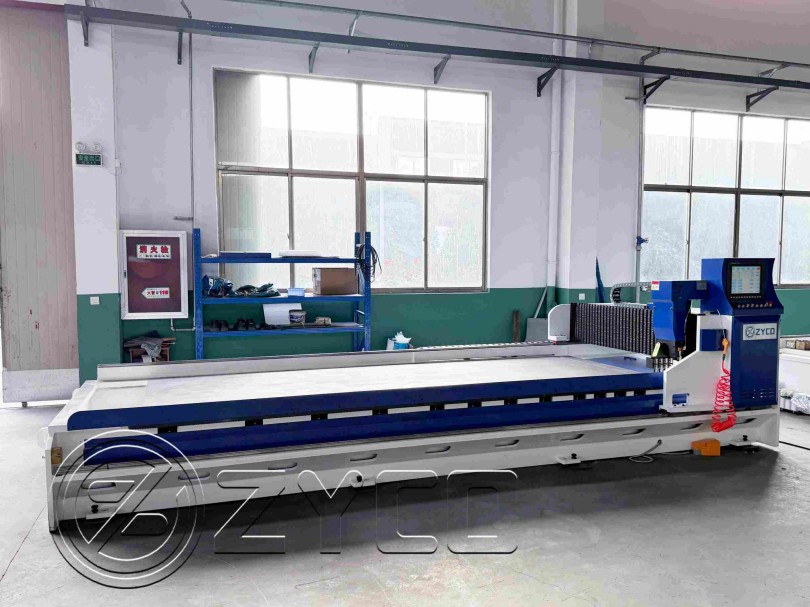

Metal Sheet V Groove Machine 1250mm 2500mm 3200mm Horizontal Cnc Grooving Machine Price

The frame is connected using high-strength bolts and welding, and undergoes tempering treatment. This manufacturing process ensures optimal rigidity of the overall structure and minimizes deformation. To protect the processed materials, dedicated support components are installed at the front and rear ends of the worktable, effectively preventing scratches on the sheet metal surface during grooving.

Order(MOQ) :
1
Product Origin :
Nanjing,jiangsu,china
Weight :
12000kg
Warranty time :
2 years
Automation :
Automatic
Key selling points :
Competitive Price

Inquire Now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

ZYCO

1. Micron-level precision control: The gantry structure ensures excellent machining accuracy, with errors stably controlled below 0.02 mm, enabling precise fine-tuning of the distance between the tool tip and the worktable surface.

2. Excellent energy efficiency: The vertical design combined with a lightweight tool post significantly reduces energy consumption from reciprocating motion during planing operations, demonstrating outstanding energy-saving and environmentally friendly characteristics.

3. Powerful large-part processing capacity: The horizontal model, with its large working area, facilitates the clamping and processing of large workpieces, showcasing broader processing adaptability.

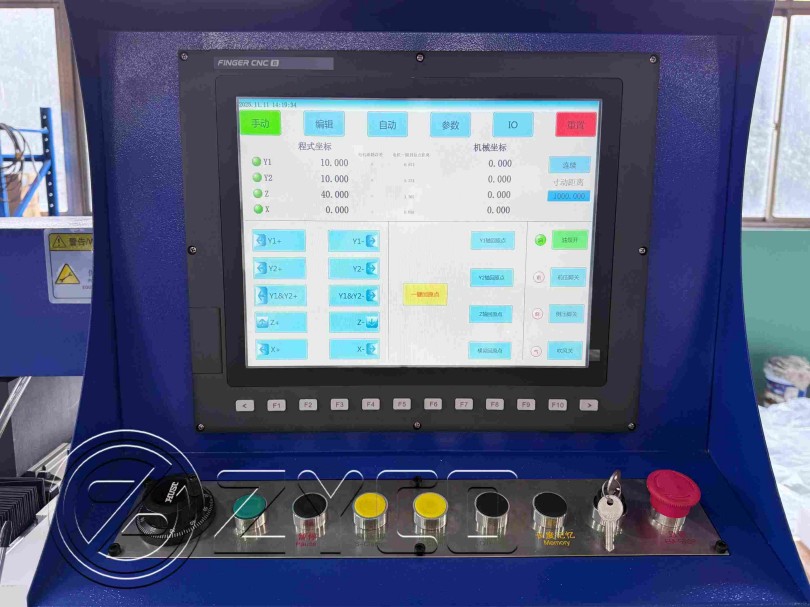

CNC system

The core control system of this machine originates from Taiwan's Hua Chung Technology, featuring an intuitive intelligent touchscreen interface, greatly reducing the operating threshold.

This highly integrated system incorporates multiple advanced functions, aiming to comprehensively improve processing efficiency and grooving accuracy.

Its user-friendly interactive logic, coupled with quick one-key return settings, makes equipment operation direct and simple.

View More +

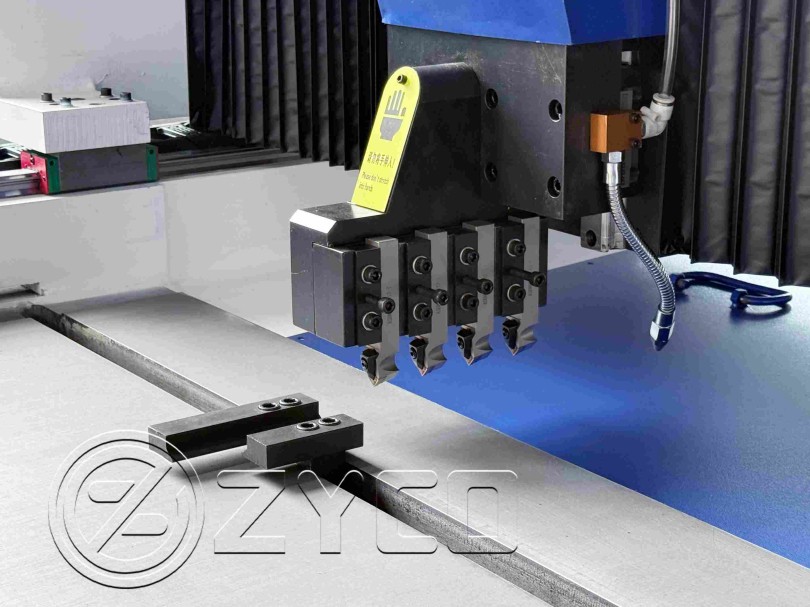

Precision Alloy Cutting Tools:

The cutting tool section employs four-insert synchronous cutting technology, structurally ensuring consistent groove depth for each groove.

The inserts are precision-manufactured from high-strength alloy steel, resulting in excellent groove surface finish, wear resistance, durability, and significantly extended service life.

View More +

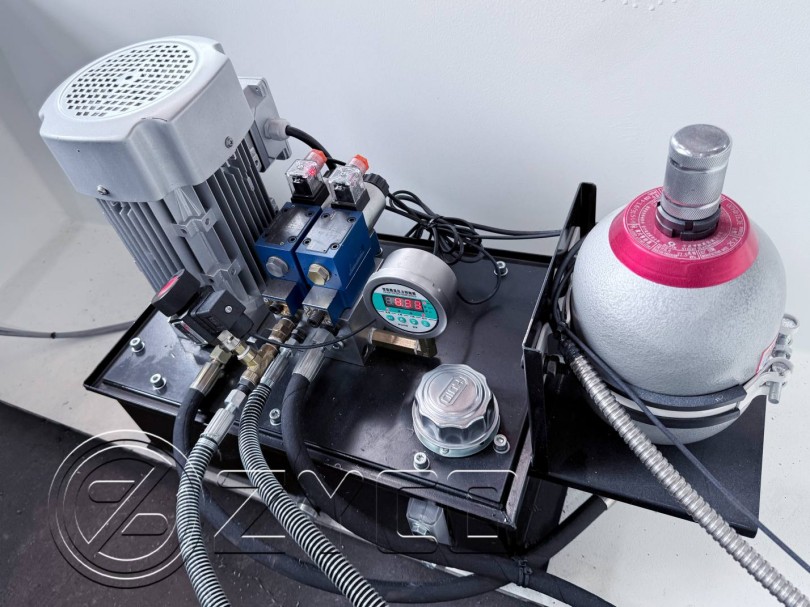

High-Efficiency Hydraulic Power:

The hydraulic system utilizes original Japanese components.

Its efficient power transmission mechanism ensures stable output under continuous operation.

The system's core components possess excellent high-pressure and high-temperature resistance, ensuring reliable performance.

View More +

Precision Servo Drive:

The drive unit uses a high-precision servo motor, offering rapid response and smooth operation.

This motor adheres to a simple and robust design philosophy, exhibiting high inherent stability and a low failure rate.

It is also equipped with a real-time fault code feedback system, providing clear guidance for rapid diagnosis and maintenance.

View More +

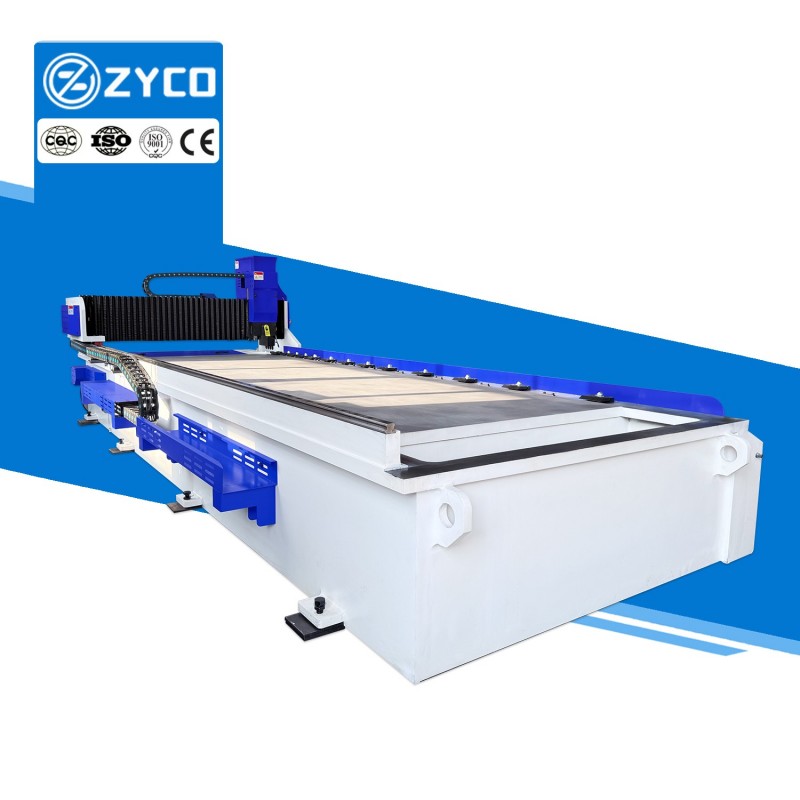

Structure and frame

The entire machine adopts an integrated frame structure optimized through finite element analysis, with a scientifically laid-out base and crossbeams.

The worktable is made of 60mm thick high-strength low-alloy steel plate, while the main frame is welded from Q235 steel plate.

Key structural components have undergone tempering treatment to eliminate internal stress, collectively forming the foundation for the equipment's high rigidity, deformation resistance, and stable operation.

View More +

Processing Workpiece Drawing

For more detailed specifications, please don't hesitate to contact us.

Sample Diaplay

Processing board length	Processing plate width	Dimensions	Maximum thickness of processed sheet	X-axis maximum speed	Y-axis maximum speed	Z-axis maximum speed	X-axis positioning accuracy	Y-axis positioning accuracy
（mm）	（mm）	（mm）	（mm）	（m/min）	（m/min）	（m/min）	（mm）	（mm）
3200	1250	520022501600	5	90m/min	90m/min	20m/min	±0.02	±0.02
3200	1500	520025001600	5	90m/min	90m/min	20m/min	±0.02	±0.02
4000	1250	600022501600	5	90m/min	90m/min	20m/min	±0.02	±0.02
4000	1500	600025001600	5	90m/min	90m/min	20m/min	±0.02	±0.02
5000	1250	700022501600	5	90m/min	90m/min	20m/min	±0.02	±0.02
5000	1500	700025001600	5	90m/min	90m/min	20m/min	±0.02	±0.02
6000	1500	800025001600	5	90m/min	90m/min	20m/min	±0.02	±0.02
Accept special model customization

About Us

The company mainly produces CNC bending machines, CNC shearing machines, CNC plate rolling machines, grooving machines and other sheet metal intelligent equipment. it is acomprehensive machine tool industry enterprise integrating automatic control system design，new product research and development, and equipment manufacturing industry innovation platfomm.

Why Choose Us

The company has accumulated decades of experience in CNC bending machines CNC shearing machines, CNC plate rolling machines, grooving machines and other sheet metal intelligent equipment.We focus on reputation and customer opinions,and our products are produced in stricta ccordance with the ISO 0991 international quality certification system and CE certification standards.

mini press brake machine

Partners

Customer photos

Certificate of Honor

FAQ

Q: How to get a accurate quotation from us?

A: Please provide us the details of material, max thickness and max width.

Q: Can you do OEM service?

A: Yes, we can. your design is accepted , your own logo can be used on the machine.

Q: What's the shipping cost from china to your country?

A: We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.

Q: Do you accept LC payment?

A: Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable.

Q: How to operate this machine?

A: Video line of our factory or we send you the video directly.

Q: What about commissioning service?

A: We can offer commissioning service, the buyer need to afford plane tickets.

Q: Do you offer teaching & training?

A: Training at supplier's plant.

Hot Tags : Horizontal grooving machine Horizontal slotting machine cnc grooving machine metal grooving machine vertical orichalcum plate grooving machine v grooving machine Stainless Steel V Slotting Machine Customized slotting machine China slotting machine

Leave A Message

Are you interested in collaborating and working with us? Please don't hesitate to contact us.

RELATED PRODUCTS

ZYCO High speed good accuracy 4000X1500 v shape horizontal slotting machine

The frame structure is welded and connected with high-strength bolts, and tempered to ensure optimal rigidity and minimum deformation. In addition, the workbench is equipped with material support devices at the front and rear to prevent possible scratches on the plate during the grooving process.

ZYCO Vertical Automatic Auto Cnc V-shaped slotting machine for Stainless Steel Metal

The vertical slotting machine is welded from steel plates with high strength, smooth and quiet operation. It can work stably by simply placing and leveling it on a flat and solid cement floor. The structural design of the vertical slotting machine makes it more compact and occupies a small area, making it suitable for use in workshops with limited space.

Automatic CNC V Grooving Machine for Stainless Steel Metal Groove Machine

The frame structure is connected by high-strength bolt welding and tempered to achieve optimal rigidity and minimize structural deformation. Specialized material support devices are also installed at the front and rear ends of the workbench to effectively prevent scratches on the plate surface during grooving.

Metal Sheet V Groove Machine 1250mm 2500mm 3200mm Horizontal Cnc Grooving Machine Price

The frame is connected using high-strength bolts and welding, and undergoes tempering treatment. This manufacturing process ensures optimal rigidity of the overall structure and minimizes deformation. To protect the processed materials, dedicated support components are installed at the front and rear ends of the worktable, effectively preventing scratches on the sheet metal surface during grooving.

Small Horizontal Cnc V Grooving Machine 1250mm 2500mm V Grooving Machine Metal

The main frame is secured using high-strength bolts and welding, and undergoes a tempering process. This process aims to achieve excellent structural rigidity while effectively suppressing deformation caused by internal forces. Furthermore, the worktable is equipped with specially designed auxiliary lifting mechanisms at both the front and rear, effectively preventing surface scratches on the sheet metal during grooving.

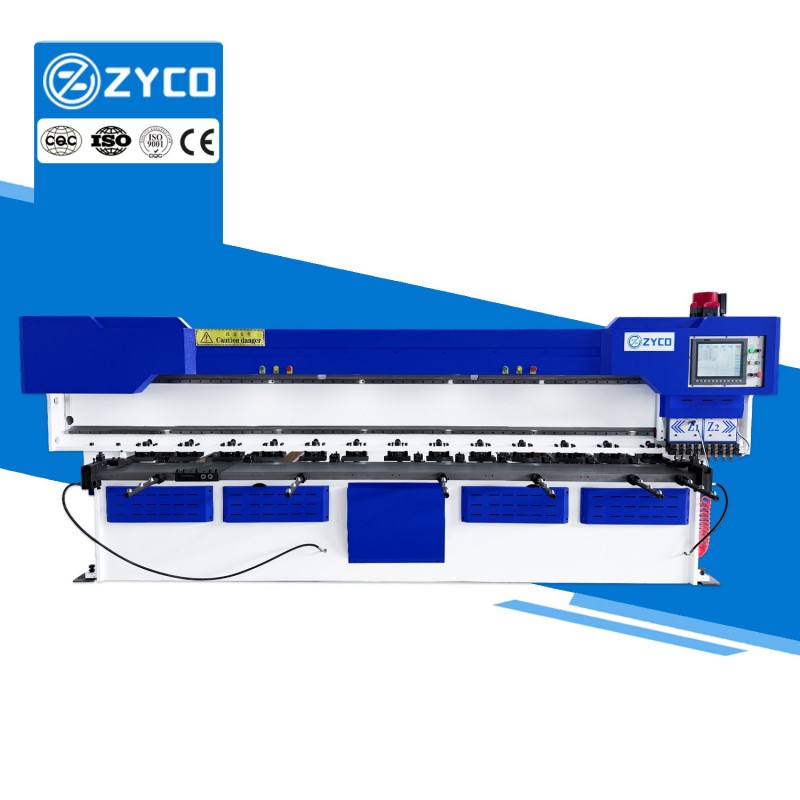

High Quality V Grooving Machine Stainless Steel CNC Soltting Planer Groover V Cutting Machine Bending
