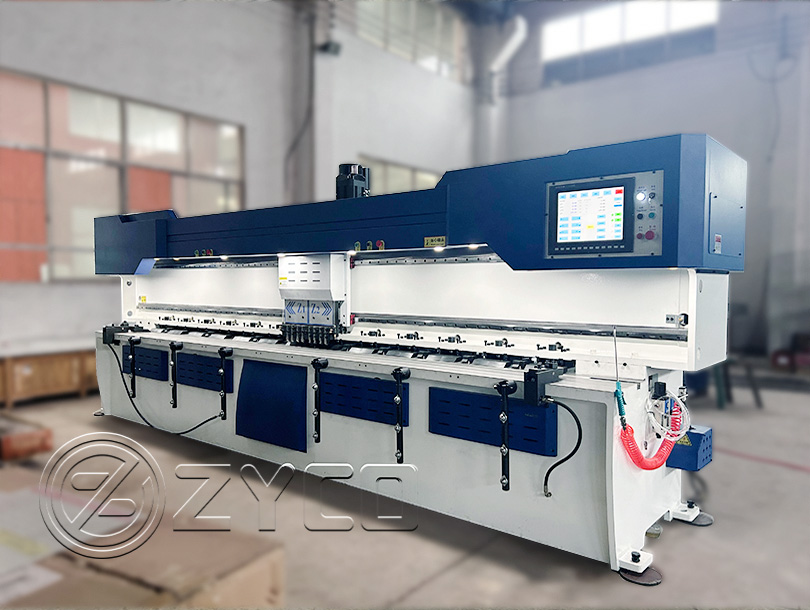

Automatic CNC V Grooving Machine for Stainless Steel Metal Groove Machine

Automatic CNC V Grooving Machine for Stainless Steel Metal Groove Machine

The frame structure is connected by high-strength bolt welding and tempered to achieve optimal rigidity and minimize structural deformation. Specialized material support devices are also installed at the front and rear ends of the workbench to effectively prevent scratches on the plate surface during grooving.

Order(MOQ) :
1
Product Origin :
Nanjing,jiangsu,china
Weight :
12000kg
Warranty time :
2 years
Automation :
Automatic
Key selling points :
Competitive Price

Inquire Now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

ZYCO

1. High-Precision Machining: Gantry slotting machines achieve ultra-high machining accuracy within 0.02mm, with precise control of the distance between the tool tip and the table surface.

2. Excellent Energy Saving and Environmental Protection: Vertical grooving machines utilize a lightweight tool holder design, which reduces energy consumption during back-and-forth movement during planing, making them more energy-efficient and environmentally friendly.

3. Advantages for Large Workpiece Processing: The horizontal grooving machine's spacious work surface facilitates the placement and securing of large workpieces, offering greater machining adaptability.

CNC system

This slotting machine is equipped with a Taiwan Huazhong Technology CNC system, featuring an intelligent touchscreen interface and a simple, intuitive user interface.

This system integrates numerous advanced features, significantly improving processing efficiency and ensuring high-precision slotting quality.

The user-friendly interactive design and one-touch return function ensure convenient operation.

View More +

Alloy blade

Employing four-blade simultaneous machining technology ensures uniform slotting depth across all blades.

The blades are made of high-strength alloy steel, resulting in a smooth slotting finish, strong wear resistance, and significantly extended service life.

View More +

Hydraulic system

Equipped with an imported hydraulic system from Japan.

The efficient powertrain system provides excellent continuous performance.

It has excellent resistance to high pressure and high temperatures.

View More +

Servo motor

Employing a high-precision servo motor, it operates at high speeds and offers sensitive dynamic response.

It offers high stability, low failure rates, and a simple design.

Real-time fault code monitoring facilitates rapid diagnosis and troubleshooting.

View More +

Structure and frame

The machine utilizes a monolithic frame design with an optimized base and crossbeam layout.

The worktable is constructed from 60mm thick, low-alloy, high-strength structural steel, and the frame is welded from Q235 steel plates, ensuring excellent overall rigidity and stable and reliable operation.

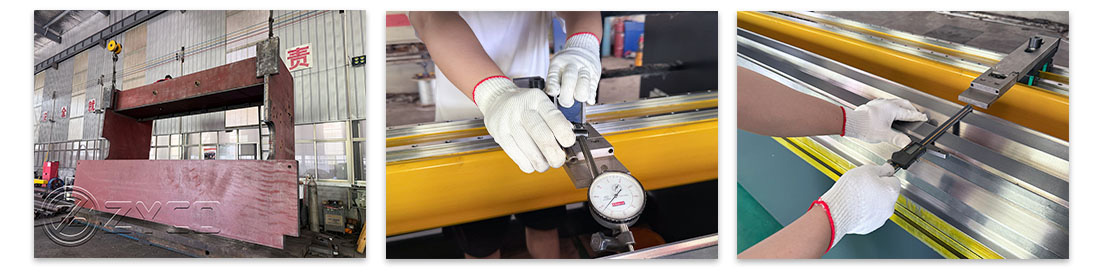

Key components undergo a tempering treatment to effectively eliminate internal stress and prevent deformation.

View More +

Processing Workpiece Drawing

For more detailed specifications, please don't hesitate to contact us.

Sample Diaplay

Processing board length	Processing plate width	Dimensions	Maximum thickness of processed sheet	X-axis maximum speed	Y-axis maximum speed	Z-axis maximum speed	X-axis positioning accuracy	Y-axis positioning accuracy
（mm）	（mm）	（mm）	（mm）	（m/min）	（m/min）	（m/min）	（mm）	（mm）
3200	1250	520022501600	5	90m/min	90m/min	20m/min	±0.02	±0.02
3200	1500	520025001600	5	90m/min	90m/min	20m/min	±0.02	±0.02
4000	1250	600022501600	5	90m/min	90m/min	20m/min	±0.02	±0.02
4000	1500	600025001600	5	90m/min	90m/min	20m/min	±0.02	±0.02
5000	1250	700022501600	5	90m/min	90m/min	20m/min	±0.02	±0.02
5000	1500	700025001600	5	90m/min	90m/min	20m/min	±0.02	±0.02
6000	1500	800025001600	5	90m/min	90m/min	20m/min	±0.02	±0.02
Accept special model customization

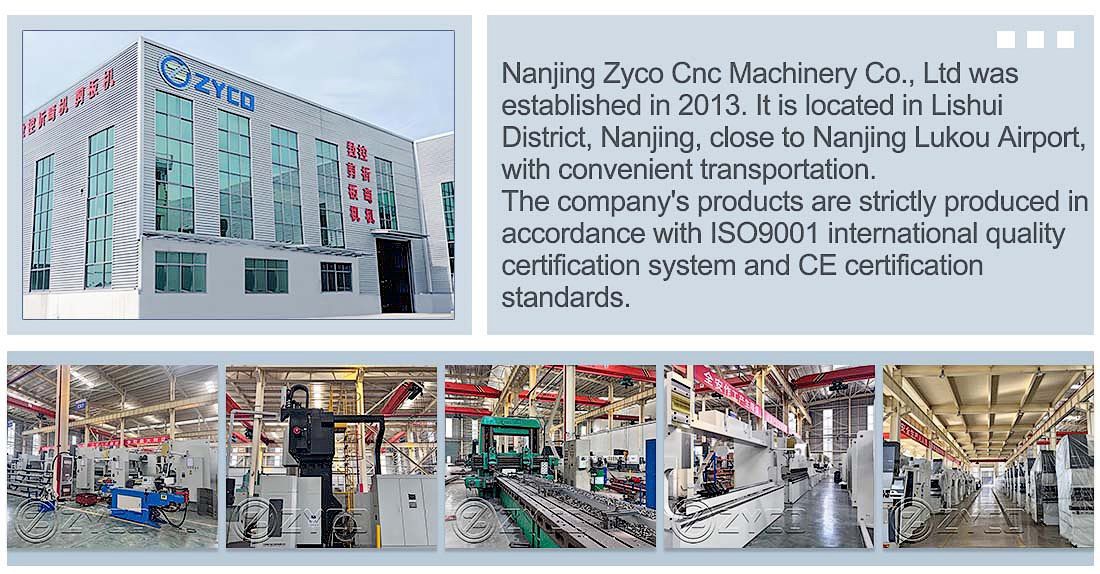

About Us

The company mainly produces CNC bending machines, CNC shearing machines, CNC plate rolling machines, grooving machines and other sheet metal intelligent equipment. it is acomprehensive machine tool industry enterprise integrating automatic control system design，new product research and development, and equipment manufacturing industry innovation platfomm.

Why Choose Us

The company has accumulated decades of experience in CNC bending machines CNC shearing machines, CNC plate rolling machines, grooving machines and other sheet metal intelligent equipment.We focus on reputation and customer opinions,and our products are produced in stricta ccordance with the ISO 0991 international quality certification system and CE certification standards.

mini press brake machine

Partners

Customer photos

Certificate of Honor

FAQ

Q: How to get a accurate quotation from us?

A: Please provide us the details of material, max thickness and max width.

Q: Can you do OEM service?

A: Yes, we can. your design is accepted , your own logo can be used on the machine.

Q: What's the shipping cost from china to your country?

A: We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.

Q: Do you accept LC payment?

A: Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable.

Q: How to operate this machine?

A: Video line of our factory or we send you the video directly.

Q: What about commissioning service?

A: We can offer commissioning service, the buyer need to afford plane tickets.

Q: Do you offer teaching & training?

A: Training at supplier's plant.
