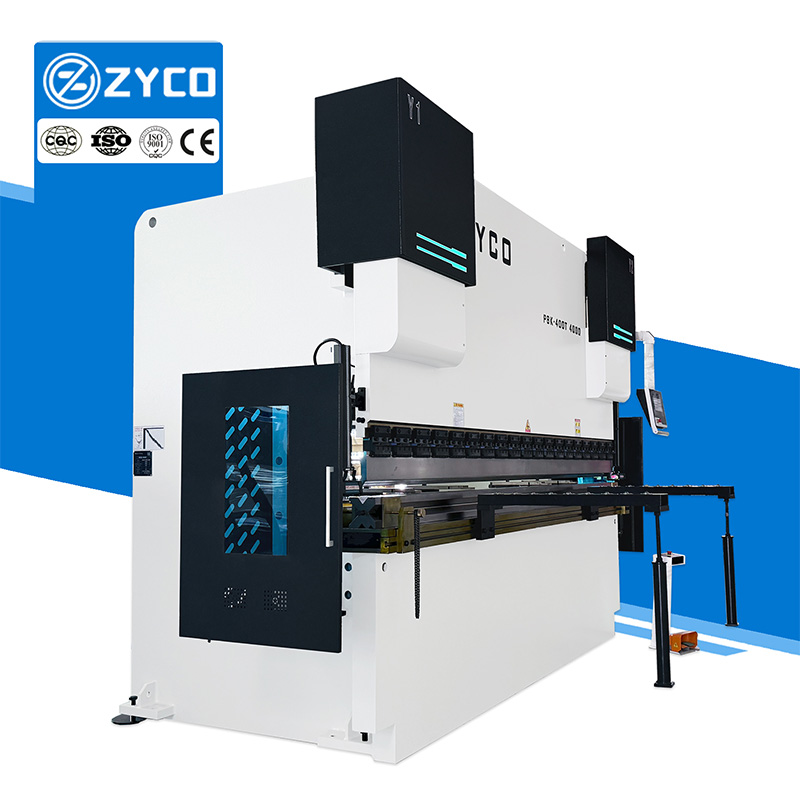

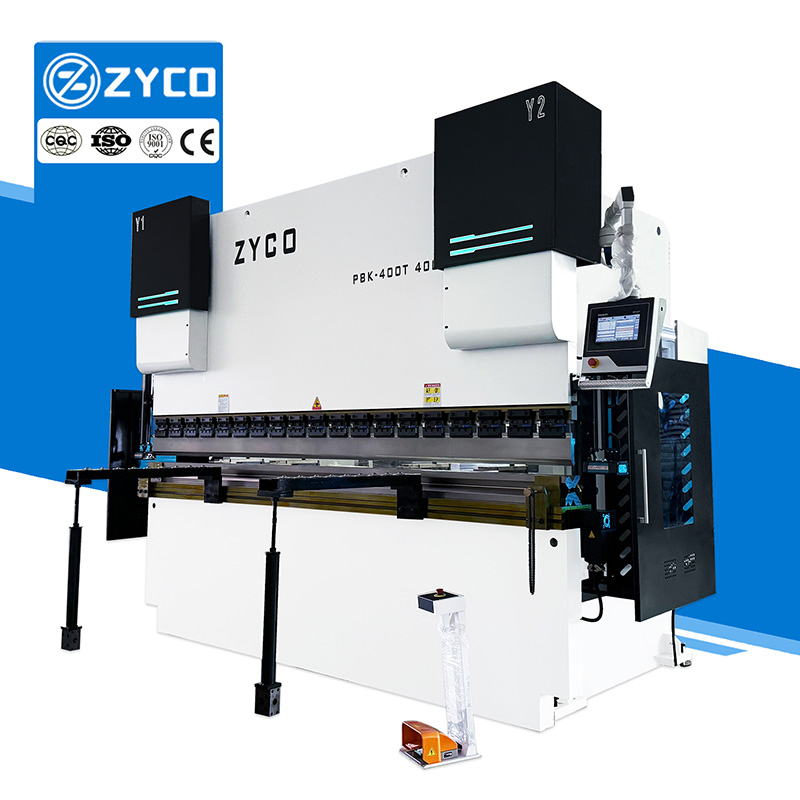

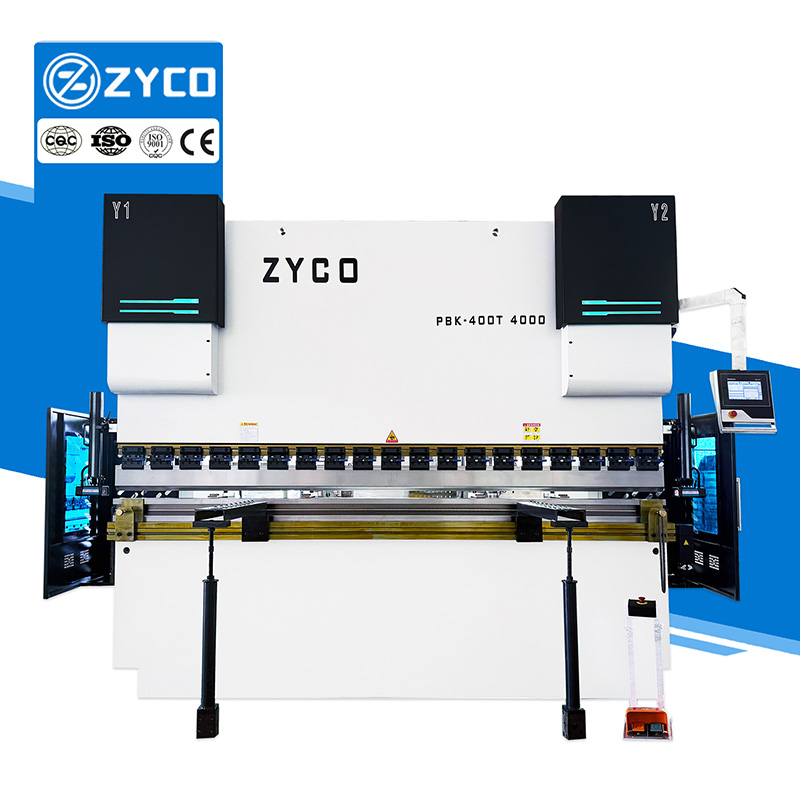

ZYCO DA63T 400T4000mm CNC Servo Press Brake Hydraulic Metal Sheet Plate Bending Machine

ZYCO DA63T 400T4000mm CNC Servo Press Brake Hydraulic Metal Sheet Plate Bending Machine

The DA53T electro-hydraulic servo press brake is a high-performance CNC machine designed specifically for metalworking. Its responsiveness and high speeds effectively improve processing efficiency. Its built-in closed-loop control system monitors bending data in real time and dynamically corrects errors during operation, maintaining high angular and positioning accuracy throughout the entire process. Leveraging advanced control technology, the machine delivers stable and reliable performance in industrial applications.

Order(MOQ) :
1
Product Origin :
Nanjing,Jiangsu,China
Weight :
7500kg
Warranty time :
2 years
Automation :
Automatic
Key selling points :
Competitive Price

Inquire Now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

ZYCO

1. Precision Engineering: The DA53T electro-hydraulic press brake is equipped with a high-precision CNC system, providing exceptional control of bending angles and positioning, ensuring precise and reliable operation every time, resulting in consistently high-quality workpieces.

2. Versatile Bending Performance: With its powerful bending force and wide processing range, the machine can efficiently process sheet metal of varying thicknesses, providing stable and reliable performance in a variety of applications.

3. Intelligent Design: A smart light strip that changes color according to the bending state helps operators quickly identify the current operating mode and enhances safety.

Control system

An integrated advanced Y-axis intelligent algorithm precisely coordinates the control of open-loop and closed-loop valves.

Equipped with a 10.1-inch high-definition, full-color touchscreen display, it offers clear and intuitive display.

It features a comprehensive database of molds, materials, and products, and is fully compatible with servo and variable frequency drive systems.

View More +

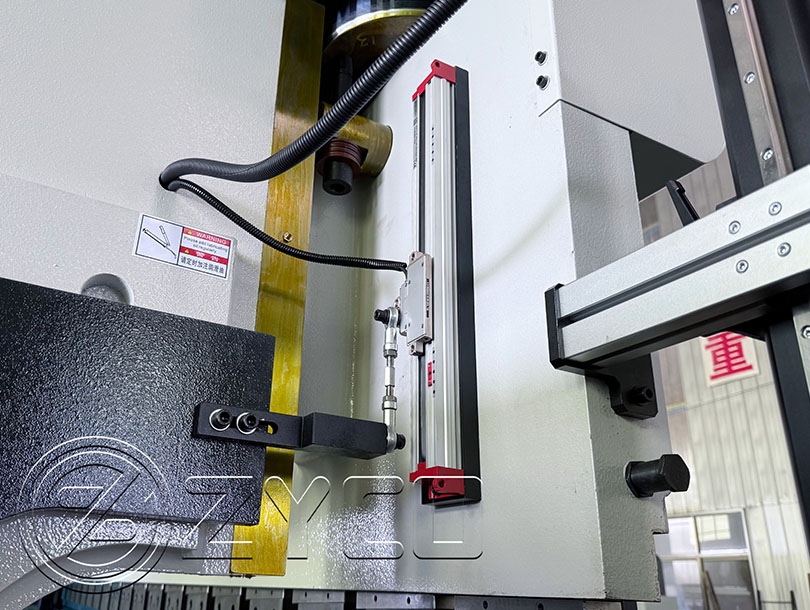

Scale

Guaranteed brand, using imported Italian GIVI scales.

Precise positioning and fast response.

Reliable quality and durability.

View More +

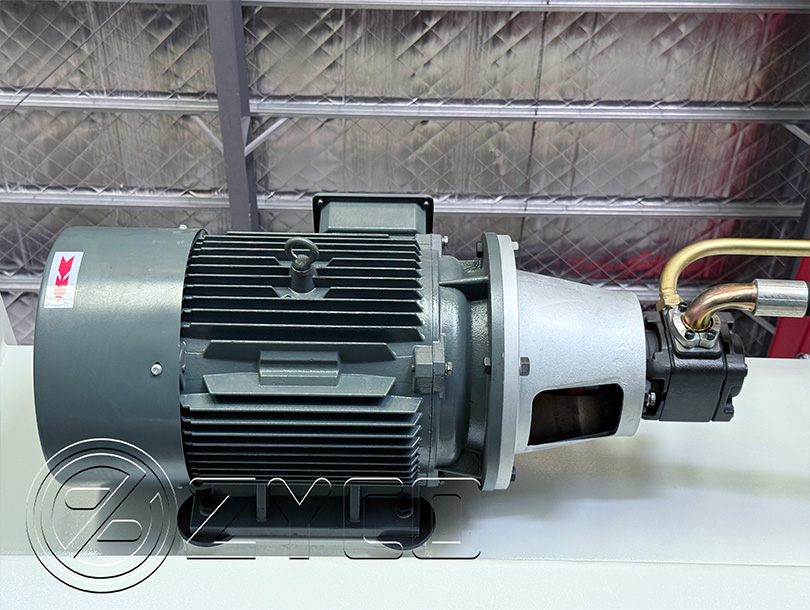

Main Motor

Original Siemens motor, solid quality, ensures long-term stable operation.

Low noise, energy-saving and high efficiency.

Full after-sales support is provided to ensure your every step of the way.

View More +

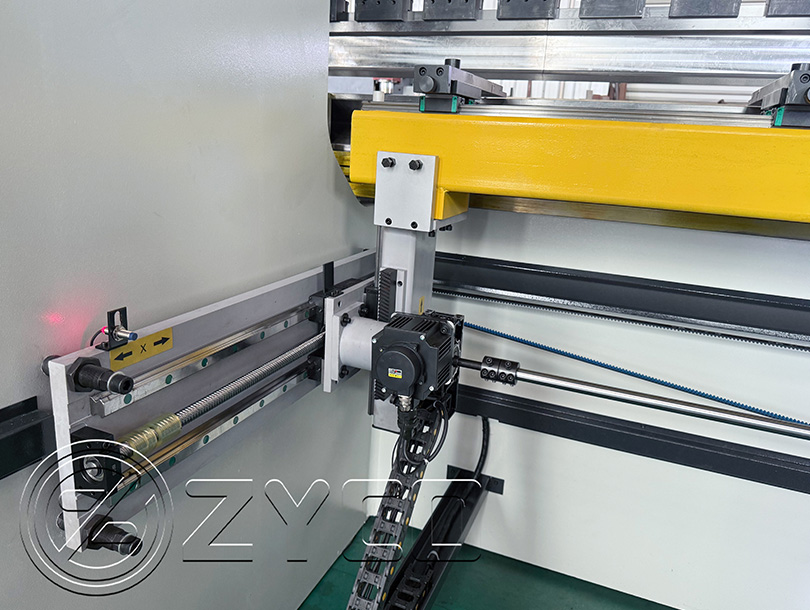

Back gauge

Imported high-precision ball screws and linear guides provide a solid foundation for long-term stable positioning accuracy.

The entire machine undergoes high-temperature tempering to completely eliminate internal stress, enhance material properties, and effectively prevent accuracy deviations caused by structural deformation.

View More +

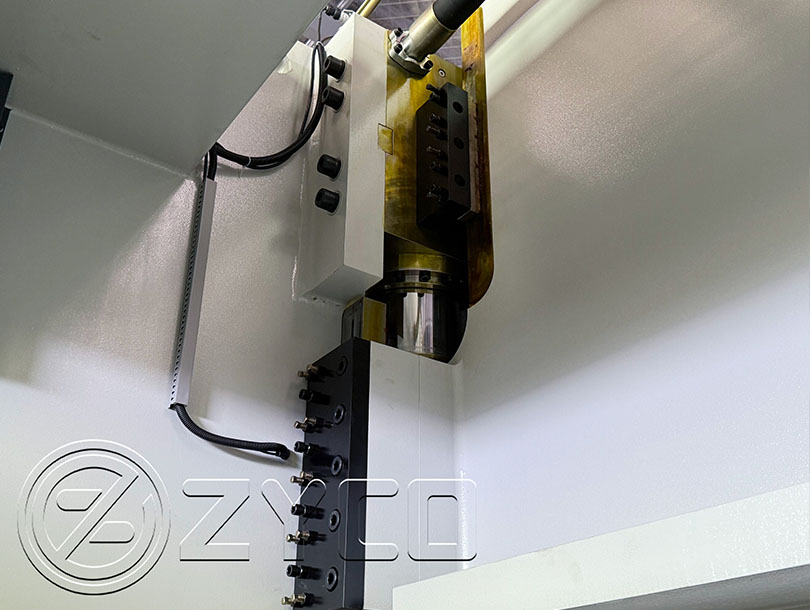

Auxiliary Guide Rails

The symmetrically designed auxiliary guide rails work in conjunction with the main guide rails to form a rigid, torsion-resistant structure, ensuring smooth operation of the slide even under uneven loads.

This effectively resists off-center load moments and prevents slide tilt, ensuring consistent workpiece bending angles and exceptionally high machining accuracy.

By offsetting abnormal stresses, it protects the core structure of the machine (such as the frame and main rails) from deformation or damage, extending the service life of the equipment.

View More +

Internal Structure Display

For more detailed specifications, please don't hesitate to contact us.

Hydraulic bending machine structure diagram

1.Oil tank 2.Main motor 3.Limit swich 4.Electerical box 5.Stopping finger

6.Back gauge 7.Wall panel 8.Hydraulic oil cylinder 9.Slider 10.CNC system

11.Quick Clamping 12.Upper mold 13.Lower mold 14.Workbench support plate

Processing Workpiece Drawing

Sample display

This page doesn't support show parameter one by one. If other model, pls consult us.
Parameter		Unit	Value
Common Model			63Tx2500	100TX3200	160Tx3200	200Tx4000
Pressure		KN	630	1000	1600	2000
Bending Length		mm	2500	3200	3200	3200
Column Distance		mm	2030	2600	2600	2600
Max Opening Height		mm	E=440	E=480	E=500	E=520
Throat Depth		mm	D=250	D=320	D=320	D=320
Slide Stroke(Y-axis)		mm	170	200	200	220
Slide Moving Speed	No Loading	mm/s	200
	Pressing		12
	Returning		170
Main Motor Power		KW	5.5	7.5	11	15
Machine accuracy	Y slider repeat	mm	≤±0.02
	Y slider positioning	mm	≤±0.02
	X, R back gauge repeat positioning	mm	≤±0.05
Size (LWH)		m	3 × 1.8 × 2.5	3.8 × 1.85 x 2.6	3.8 × 1.85 × 2.65	3.8 × 1.9 × 2.65
Weigth		KG	5500	7500	9500	12000

Partners

Customer photos

Certificate of Honor

FAQ

Q: How to get a accurate quotation from us?

A: Please provide us the details of material, max thickness and max width.

Q: Can you do OEM service?

A: Yes, we can. your design is accepted , your own logo can be used on the machine.

Q: What's the shipping cost from china to your country?

A: We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.

Q: Do you accept LC payment?

A: Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable.

Q: How to operate this machine?

A: Video line of our factory or we send you the video directly.

Q: What about commissioning service?

A: We can offer commissioning service, the buyer need to afford plane tickets.

Q: Do you offer teaching & training?

A: Training at supplier's plant.
