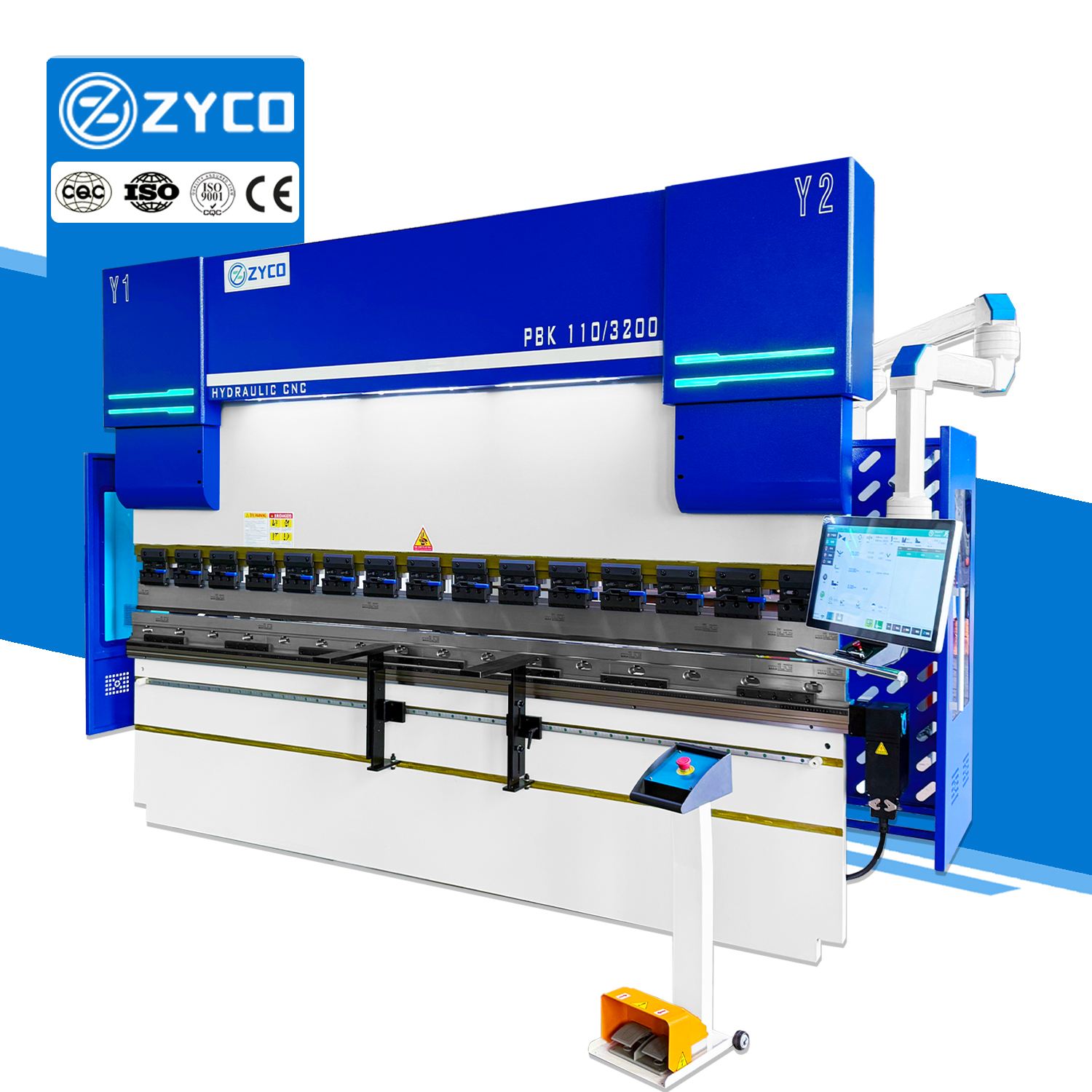

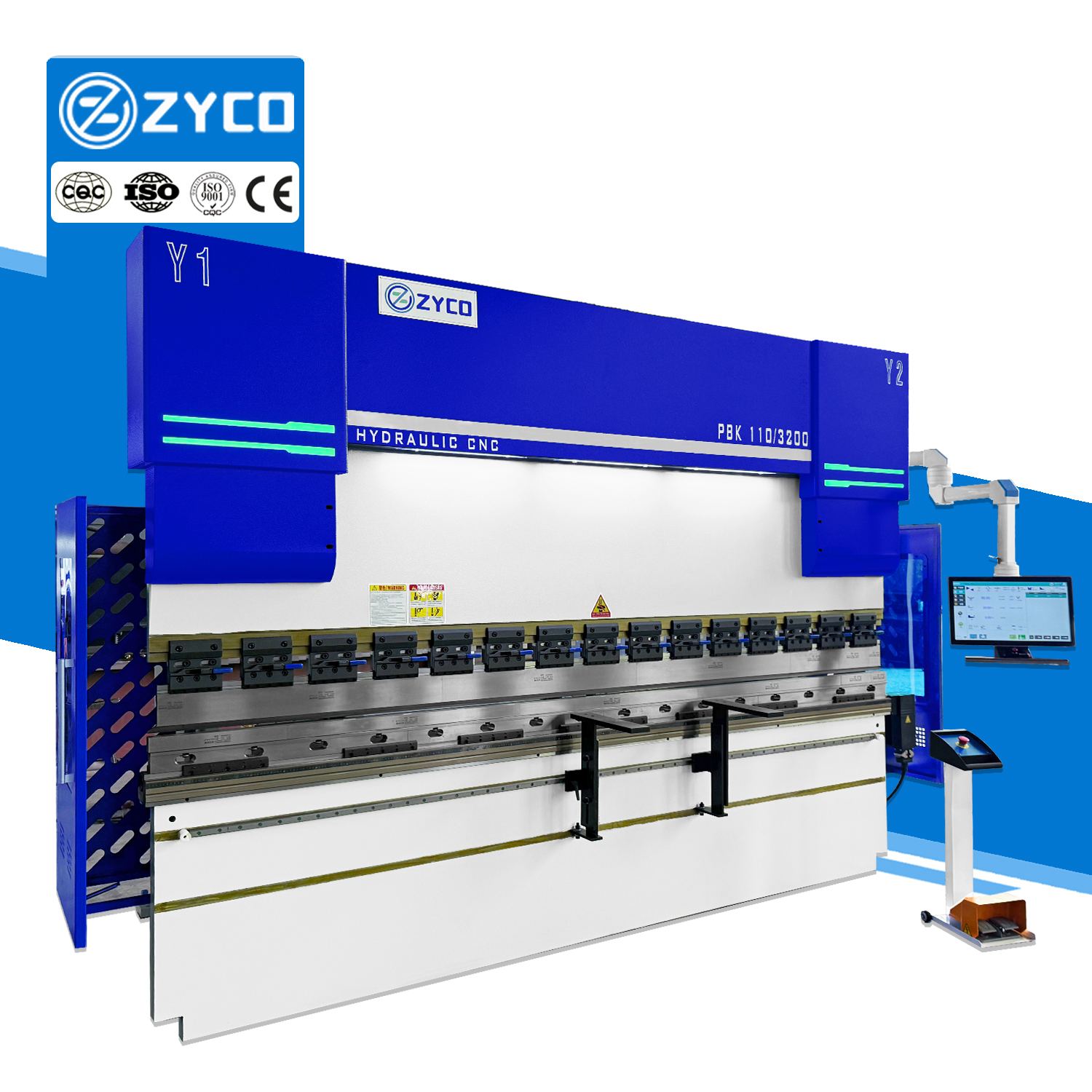

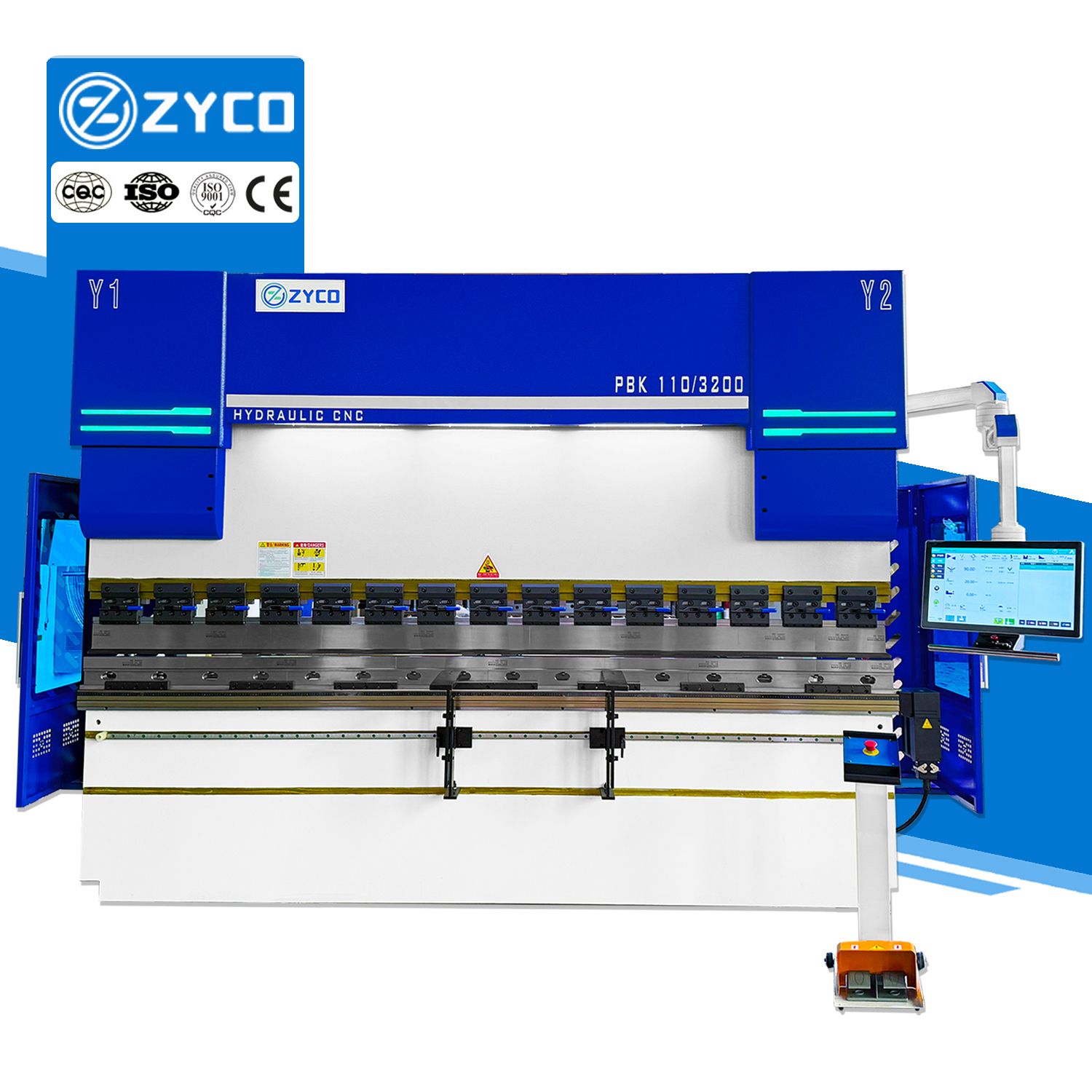

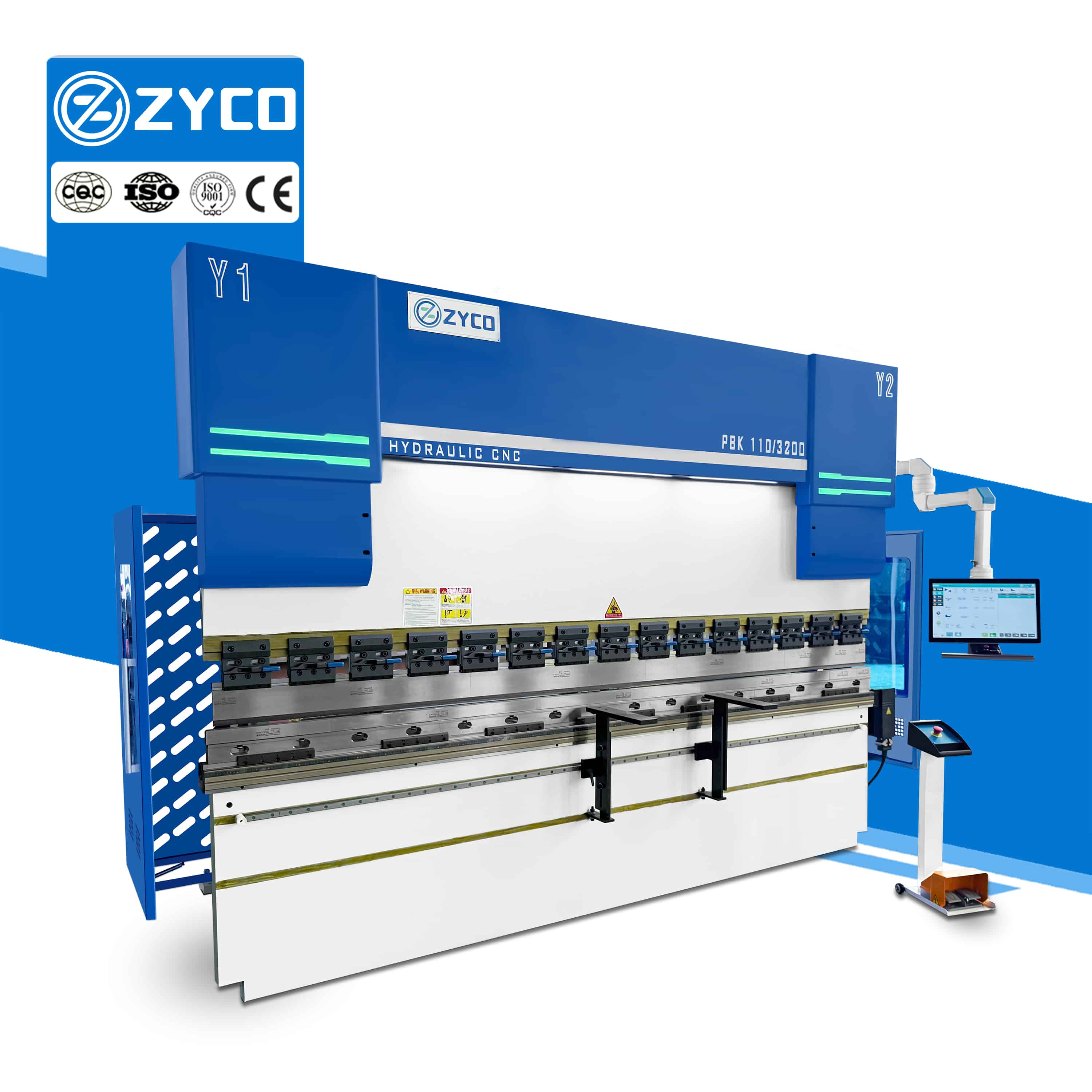

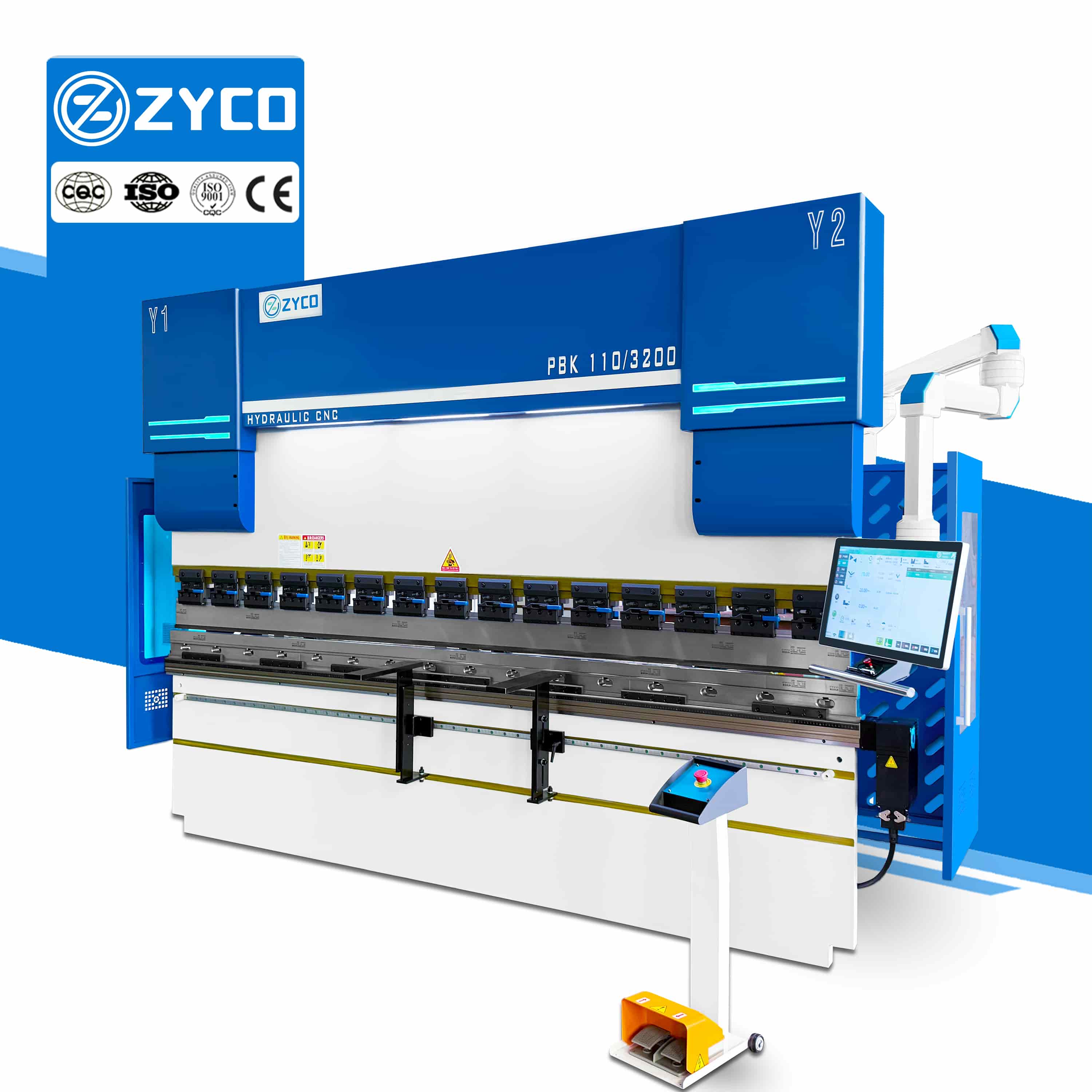

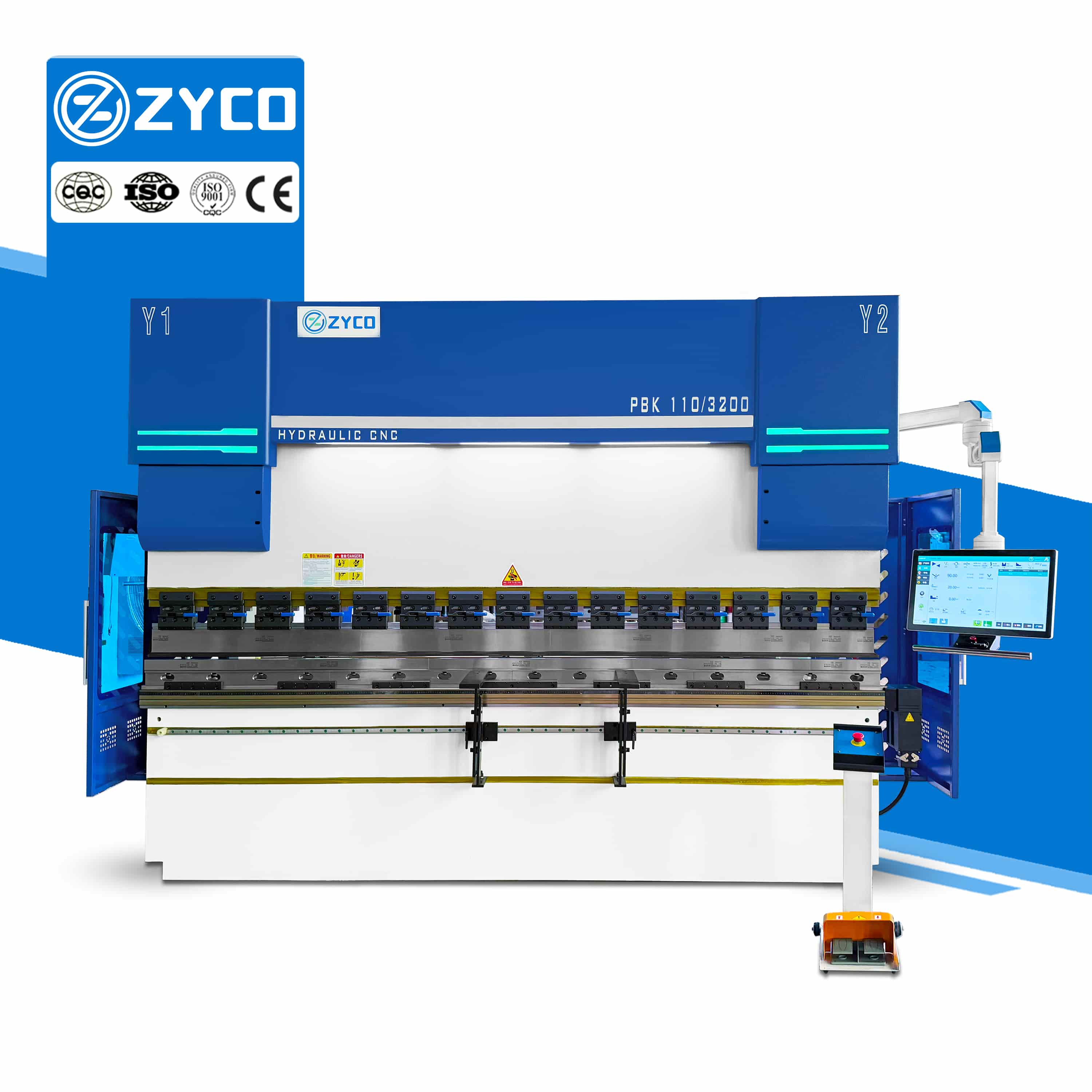

Factory Direct Sale Cnc Press Brake Metal Processing Hydraulic Press Brake Machine with ET18 System

Factory Direct Sale Cnc Press Brake Metal Processing Hydraulic Press Brake Machine with ET18 System

The E-Touch 18 CNC system is designed specifically for electro-hydraulic synchronous press brakes, integrating electrical control and hydraulic drive technology. Through numerous technological innovations, it significantly improves bending precision, productivity, and user experience.

Order(MOQ) :
1
Product Origin :
Nanjing,Jiangsu,China
Weight :
7500kg
Warranty time :
2 years
Automation :
Automatic
Key selling points :
Competitive Price

Inquire Now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

ZYCO

1. The next-generation E-Touch electro-hydraulic control system features an intuitive touchscreen interface with large-size buttons and icons, greatly simplifying CNC programming.

2. The basic configuration includes 4+1 axis control (Y1/Y2/X/R axes with deflection compensation), with optional expansion options such as Z1/Z2/X2/R2.

3. Built-in intelligent diagnostic and maintenance modules allow users to monitor system status in real time, quickly troubleshoot faults, and perform maintenance.

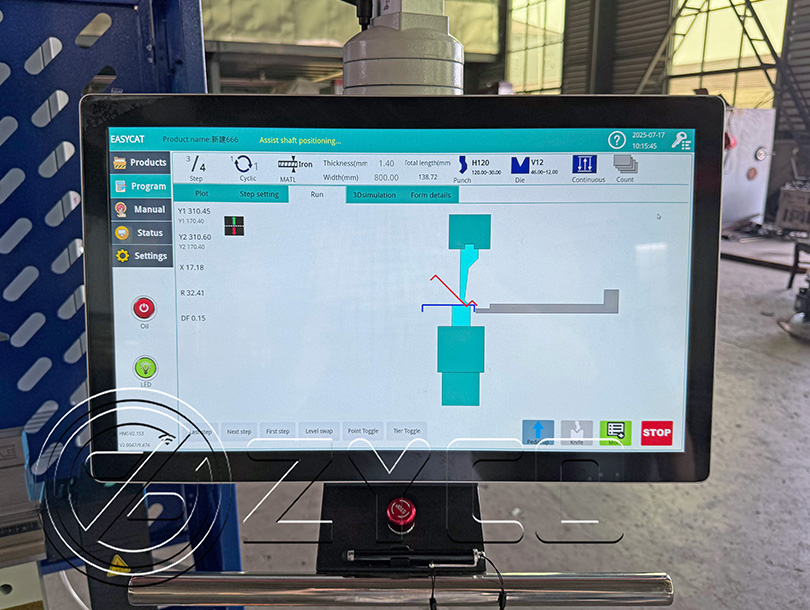

Control system

The user-friendly interface utilizes an icon-based design, simplifying programming for multi-step batch bending and significantly improving processing efficiency.

Equipped with a 21.5-inch, full-color, high-precision touchscreen imported from Taiwan, it supports multi-touch and a variety of gestures for clear and detailed display.

Intelligent graphical programming automatically generates bending process plans and performs interference verification, supporting pre-production process simulations.

View More +

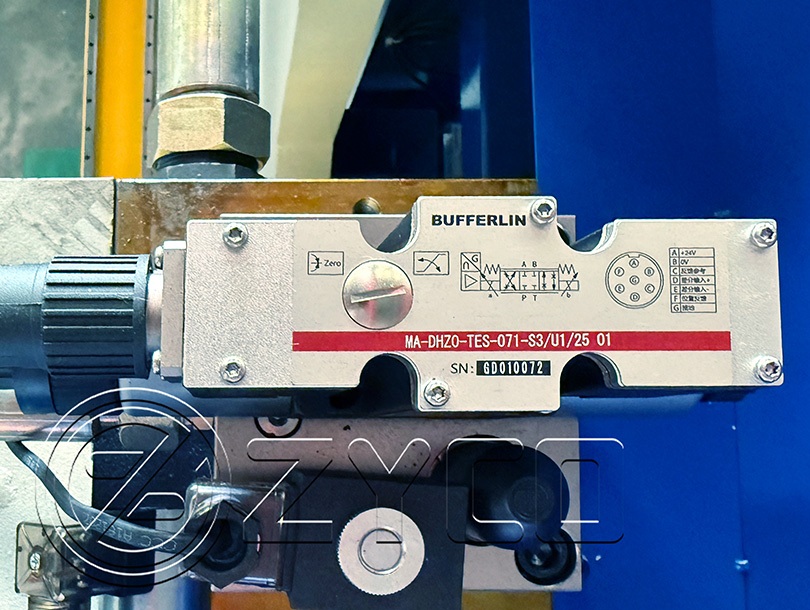

Hydraulic system

The core valve assembly utilizes BFL brand products, ensuring long-term, stable, and high-precision performance.

Hydraulic pressure can be precisely adjusted to perfectly match the bending force requirements of different materials.

The electro-hydraulic servo synchronous control system features a compact design, optimized hydraulic cylinder spacing, and excellent load tolerance.

View More +

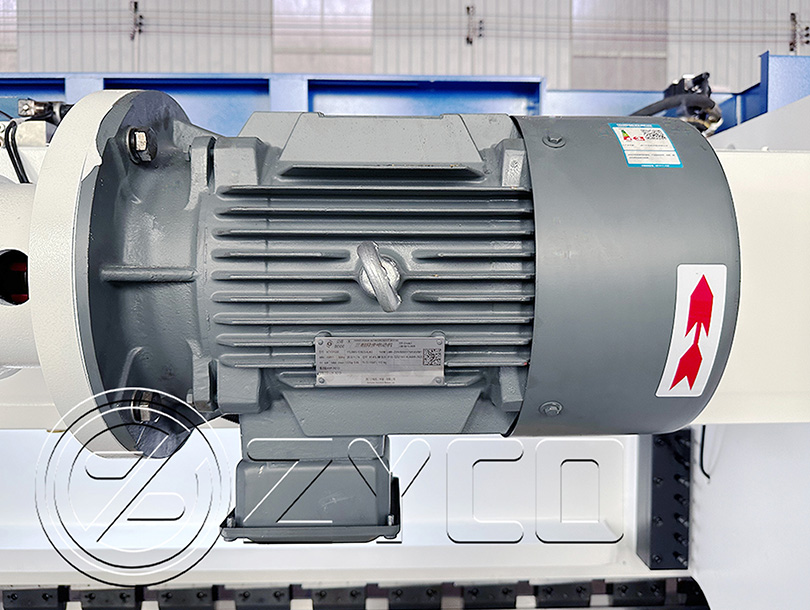

Main Motor

Original Siemens motor for reliable quality and durability.

Low operating noise and excellent energy efficiency.

Comprehensive after-sales service system.

View More +

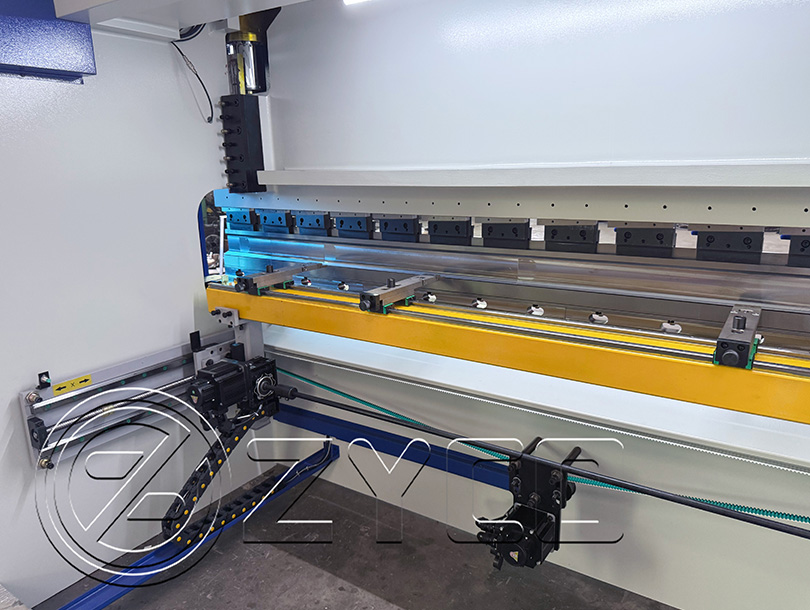

Back gauge

Imported high-precision ball screws and linear guides replace traditional transmission mechanisms, ensuring long-term, stable positioning accuracy.

The entire system undergoes a high-temperature tempering process to effectively eliminate internal stress, enhance material properties, and prevent accuracy deviations caused by structural deformation.

View More +

Scale

The core measuring element utilizes a BFL brand scale.

Ultra-high measurement accuracy and fast response.

Durable and long service life.

View More +

Internal Structure Display

For more detailed specifications, please don't hesitate to contact us.

Hydraulic bending machine structure diagram

1.Oil tank 2.Main motor 3.Limit swich 4.Electerical box 5.Stopping finger

6.Back gauge 7.Wall panel 8.Hydraulic oil cylinder 9.Slider 10.CNC system

11.Quick Clamping 12.Upper mold 13.Lower mold 14.Workbench support plate

Processing Workpiece Drawing

Sample display

This page doesn't support show parameter one by one. If other model, pls consult us.
Parameter		Unit	Value
Common Model			63Tx2500	100TX3200	160Tx3200	200Tx4000
Pressure		KN	630	1000	1600	2000
Bending Length		mm	2500	3200	3200	3200
Column Distance		mm	2030	2600	2600	2600
Max Opening Height		mm	E=440	E=480	E=500	E=520
Throat Depth		mm	D=250	D=320	D=320	D=320
Slide Stroke(Y-axis)		mm	170	200	200	220
Slide Moving Speed	No Loading	mm/s	200
	Pressing		12
	Returning		170
Main Motor Power		KW	5.5	7.5	11	15
Machine accuracy	Y slider repeat	mm	≤±0.02
	Y slider positioning	mm	≤±0.02
	X, R back gauge repeat positioning	mm	≤±0.05
Size (LWH)		m	3 × 1.8 × 2.5	3.8 × 1.85 x 2.6	3.8 × 1.85 × 2.65	3.8 × 1.9 × 2.65
Weigth		KG	5500	7500	9500	12000

Partners

Customer photos

Certificate of Honor

FAQ

Q: How to get a accurate quotation from us?

A: Please provide us the details of material, max thickness and max width.

Q: Can you do OEM service?

A: Yes, we can. your design is accepted , your own logo can be used on the machine.

Q: What's the shipping cost from china to your country?

A: We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.

Q: Do you accept LC payment?

A: Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable.

Q: How to operate this machine?

A: Video line of our factory or we send you the video directly.

Q: What about commissioning service?

A: We can offer commissioning service, the buyer need to afford plane tickets.

Q: Do you offer teaching & training?

A: Training at supplier's plant.
