Yes, a W12 4-roll plate rolling machine can roll conical shapes when equipped with the appropriate mechanical configuration and rolling process parameters. In modern metal fabrication, W12 machines are widely used not only for cylindrical rolling but also for manufacturing cones, tapered sections, and transition components.

However, conical rolling is significantly more complex than cylindrical rolling because it requires controlled differential deformation across the plate width. Achieving accurate cone geometry depends on machine structure, roll movement coordination, friction control, and operator programming.

This article explains the technical principles behind conical rolling using a W12 machine and the key factors that affect rolling quality.

What Is Conical Rolling?

Conical rolling is the process of forming a flat metal plate into a cone or tapered cylindrical shape.

Unlike cylindrical rolling, where the bending radius is constant across the plate width, cone rolling requires:

• Different rolling speeds across the plate
• Variable deformation along the plate edges
• Controlled material flow during forming

Typical products include:

• Pressure vessel reducers
• Hopper sections
• Wind tower transitions
• Exhaust and duct systems
• Industrial funnel components

Why Cone Rolling Is More Difficult Than Cylindrical Rolling

In cylindrical rolling:

• Both sides of the plate travel the same distance
• The bending radius remains constant

In conical rolling:

• One side of the plate travels a larger circumference
• The two sides require different rolling conditions
• Material experiences non-uniform deformation

This creates several technical challenges:

• Plate slipping
• Geometric distortion
• Uneven stress distribution
• Loss of roundness

Therefore, cone rolling requires more advanced machine control and operator expertise.

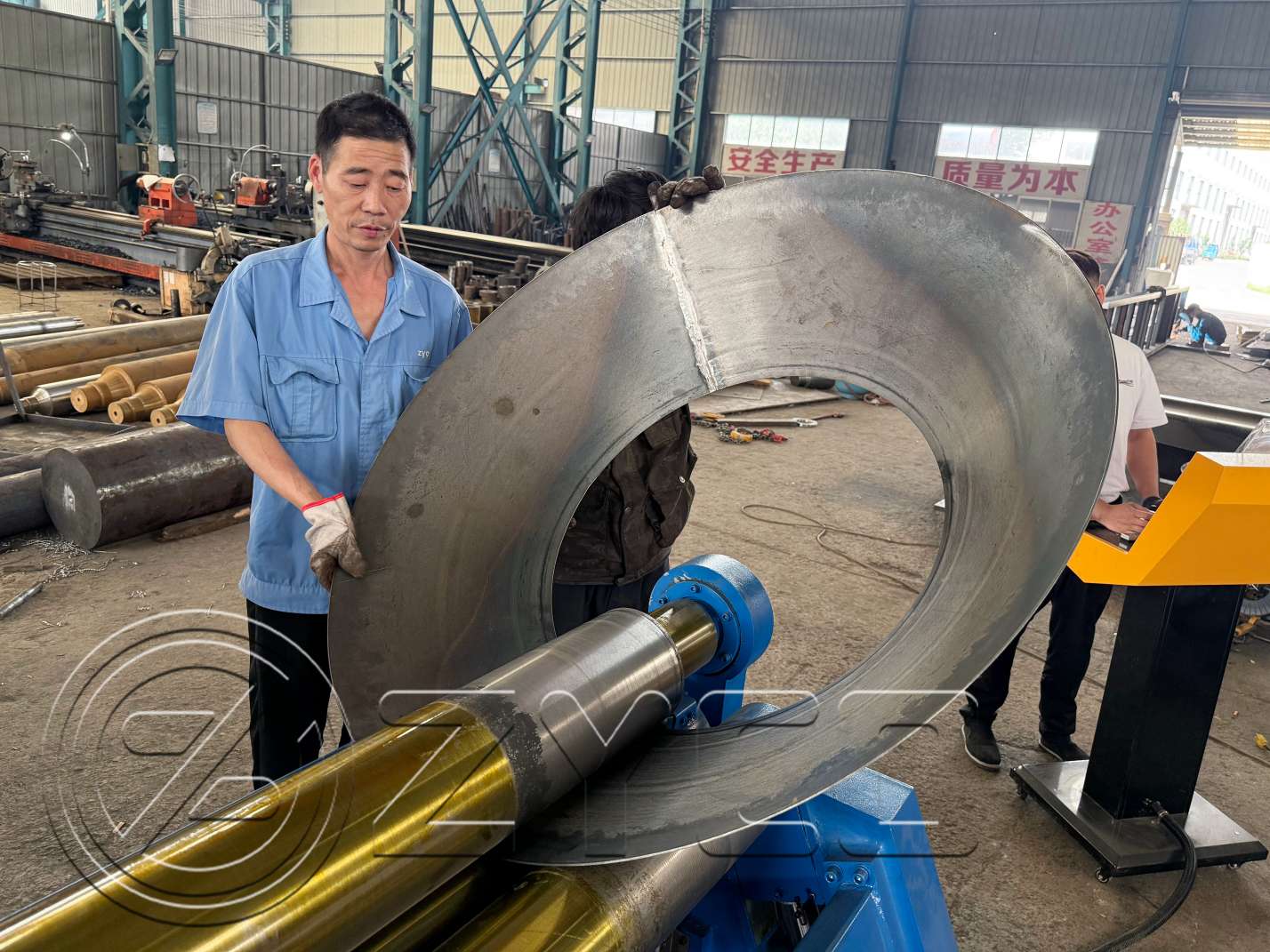

How a W12 4-Roll Machine Rolls Conical Shapes

A W12 4-roll machine can perform conical rolling by creating asymmetrical rolling conditions between the two sides of the plate.

1. Differential Feeding Principle

The key principle is:

One side of the plate must move faster or travel farther than the other side.

This is achieved by:

• Tilting the side rolls
• Adjusting roll pressure asymmetrically
• Creating controlled friction differences

As a result, the plate gradually forms a tapered geometry.

2. Side Roll Inclination

Modern W12 machines often include:

• Hydraulic side roll adjustment
• Inclined side roll movement
• Independent positioning systems

The side roll on one end applies a different bending force compared to the opposite side.

This creates:

• Larger rolling radius on one side
• Smaller rolling radius on the other side

Which ultimately forms the conical shape.

3. Controlled Plate Alignment

During cone rolling, proper plate alignment is critical.

The machine must maintain:

• Stable clamping force
• Accurate feeding direction
• Controlled edge movement

W12 4-roll machines provide advantages here because the plate remains continuously clamped between the top and bottom rolls.

This minimizes:

• Slippage
• Misalignment
• Positioning errors

4. Multi-Pass Progressive Forming

Conical rolling is typically performed gradually.

The process usually includes:

1.Initial pre-bending

2.Progressive rolling passes

3.Incremental side roll adjustments

4.Final geometric calibration

For thick plates, multiple rolling cycles may be required to reduce internal stress concentration.

CNC Technology in Conical Rolling

Modern CNC-controlled W12 rolling machines significantly improve cone rolling capability.

Advanced CNC systems allow:

• Programmable roll positioning
• Automatic movement synchronization
• Real-time geometric correction
• Repeatable cone production

This improves:

• Dimensional consistency
• Production efficiency
• Operator accuracy

Key Factors Affecting Conical Rolling Capacity

1. Plate Thickness

Thicker materials require:

• Higher rolling force
• Greater machine rigidity
• More rolling passes

Cone rolling capacity is usually lower than cylindrical rolling capacity.

2. Material Yield Strength

High-strength materials increase forming resistance.

Examples:

3. Cone Angle

Larger cone angles require:

• Greater differential deformation
• More aggressive side roll adjustment

This increases rolling difficulty.

4. Minimum Cone Diameter

Smaller diameters create:

• Higher localized stress
• Greater risk of deformation defects

Machine capability becomes more critical in these applications.

Advantages of W12 Machines for Conical Rolling

Compared with traditional 3-roll systems, W12 4-roll machines offer major advantages:

Continuous Plate Clamping

The plate remains securely clamped throughout the process, improving stability.

Higher Precision

Independent roll control enables more accurate cone geometry.

Better Repeatability

CNC systems allow repeatable production for batch manufacturing.

Reduced Operator Dependency

Automation simplifies complex rolling operations.

Improved Productivity

Pre-bending and rolling can often be completed in a single setup.

Typical Industries Using Conical Rolling

W12 cone rolling machines are widely used in:

• Pressure vessel manufacturing
• Petrochemical equipment
• Wind energy towers
• Industrial ventilation systems
• Mining and cement equipment
• Heavy steel fabrication

Common Challenges in Cone Rolling

Even with advanced machines, cone rolling still requires careful process control.

Typical issues include:

Proper machine calibration and CNC programming are essential.

Why Choose ZYCO W12 4-Roll Rolling Machines?

Modern ZYCO W12 4-roll plate rolling machines are engineered for demanding rolling applications, including conical forming.

Key technical advantages include:

• High-rigidity frame structure
• Precision hydraulic synchronization
• Advanced CNC control systems
• Independent side roll adjustment
• Excellent forming repeatability

These features enable manufacturers to achieve high-precision cone rolling with improved efficiency and reduced setup time.

Conclusion

A W12 4-roll plate rolling machine is fully capable of rolling conical shapes when equipped with proper control systems and rolling configurations.

Compared with traditional rolling systems, W12 machines provide:

• Better stability
• Higher precision
• Improved automation
• Greater efficiency in cone forming applications

For manufacturers involved in advanced metal fabrication, investing in a CNC-controlled W12 rolling machine offers significant advantages in both productivity and product quality.
