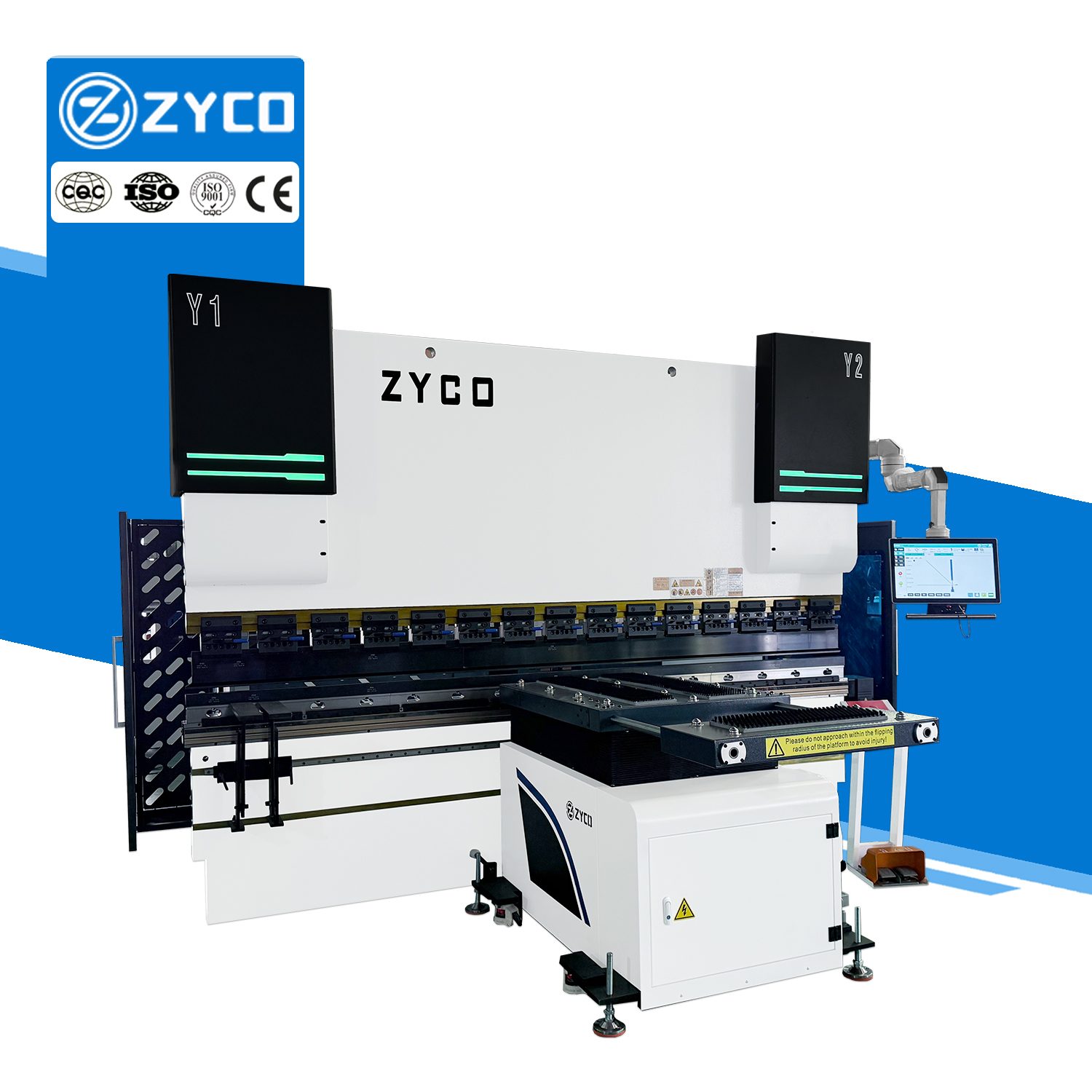

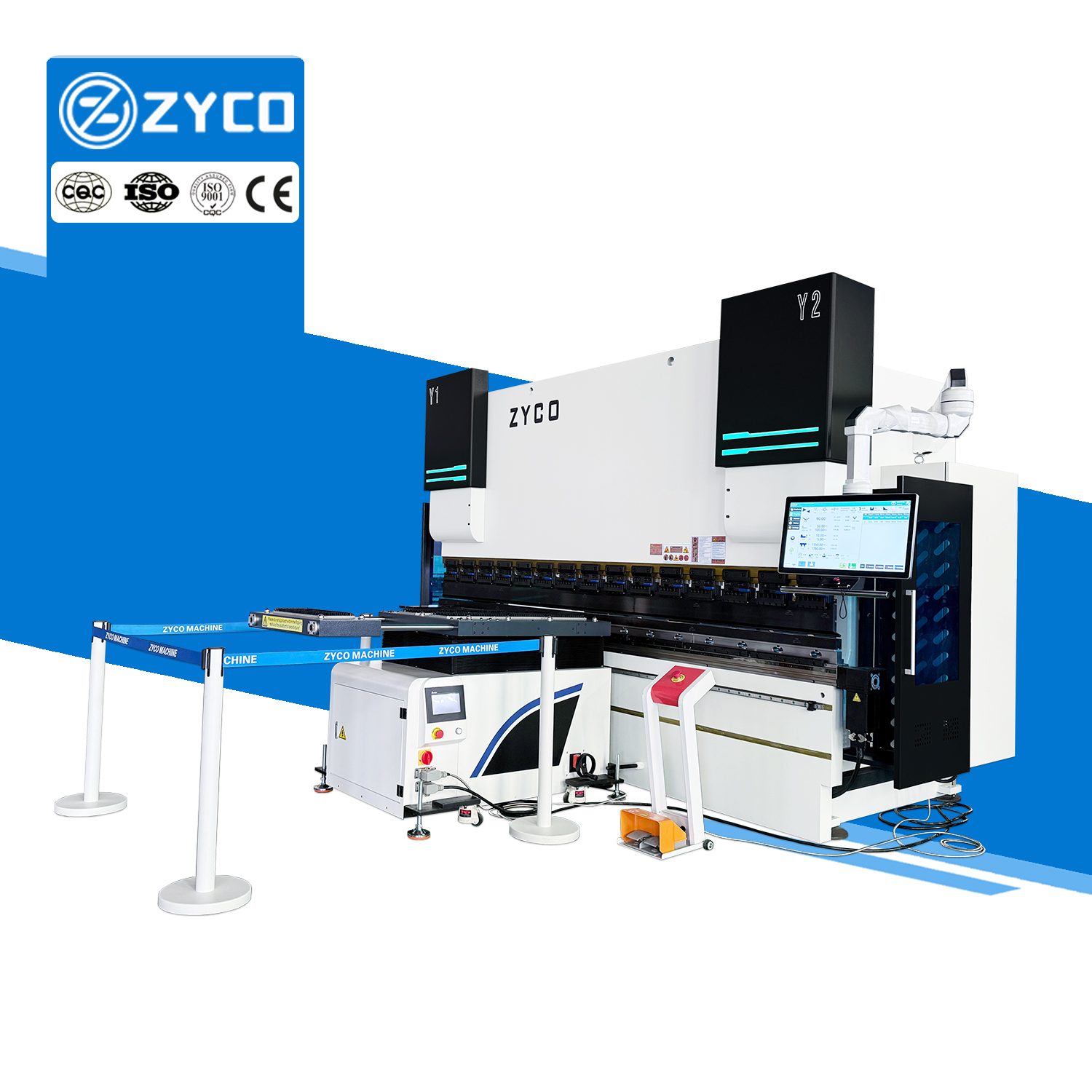

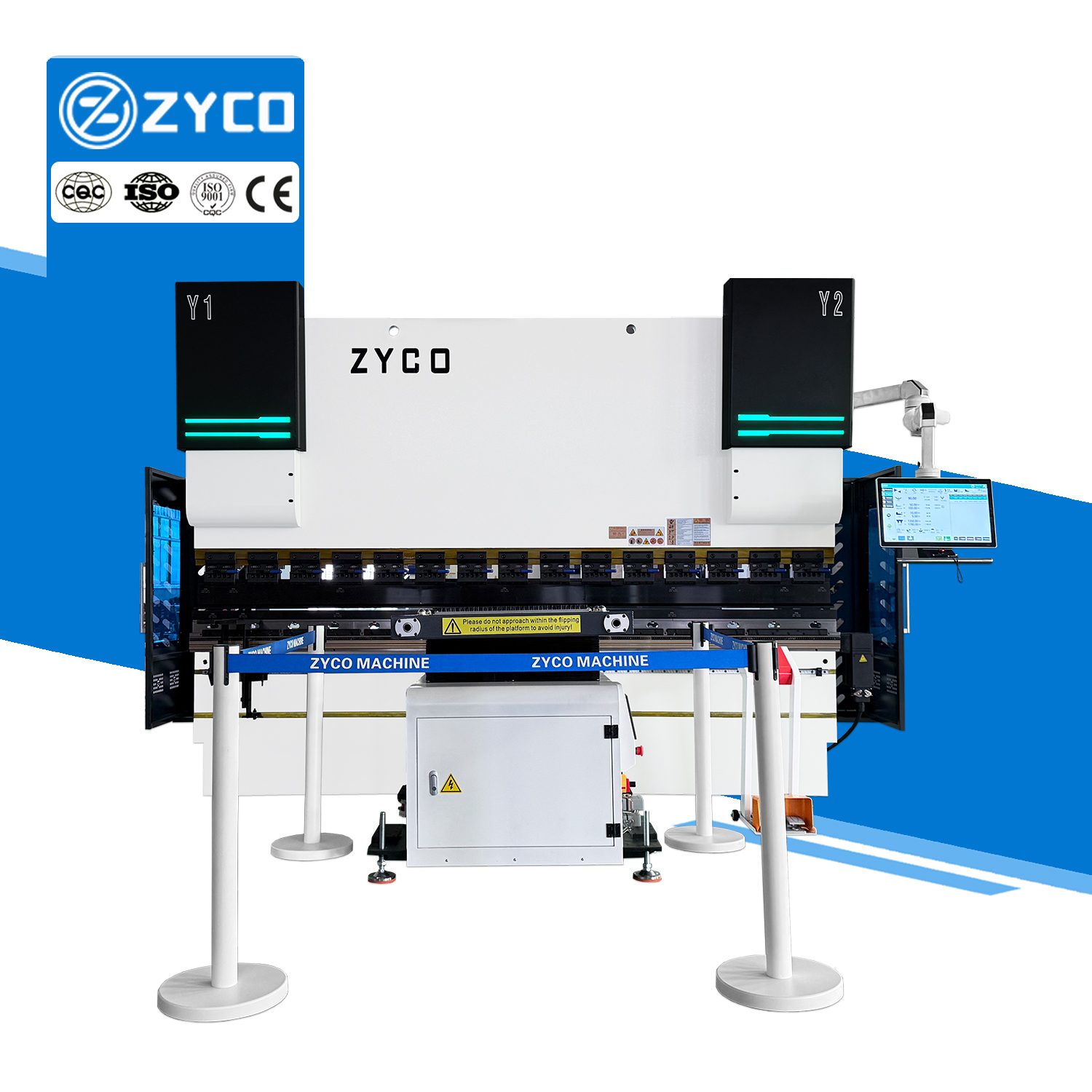

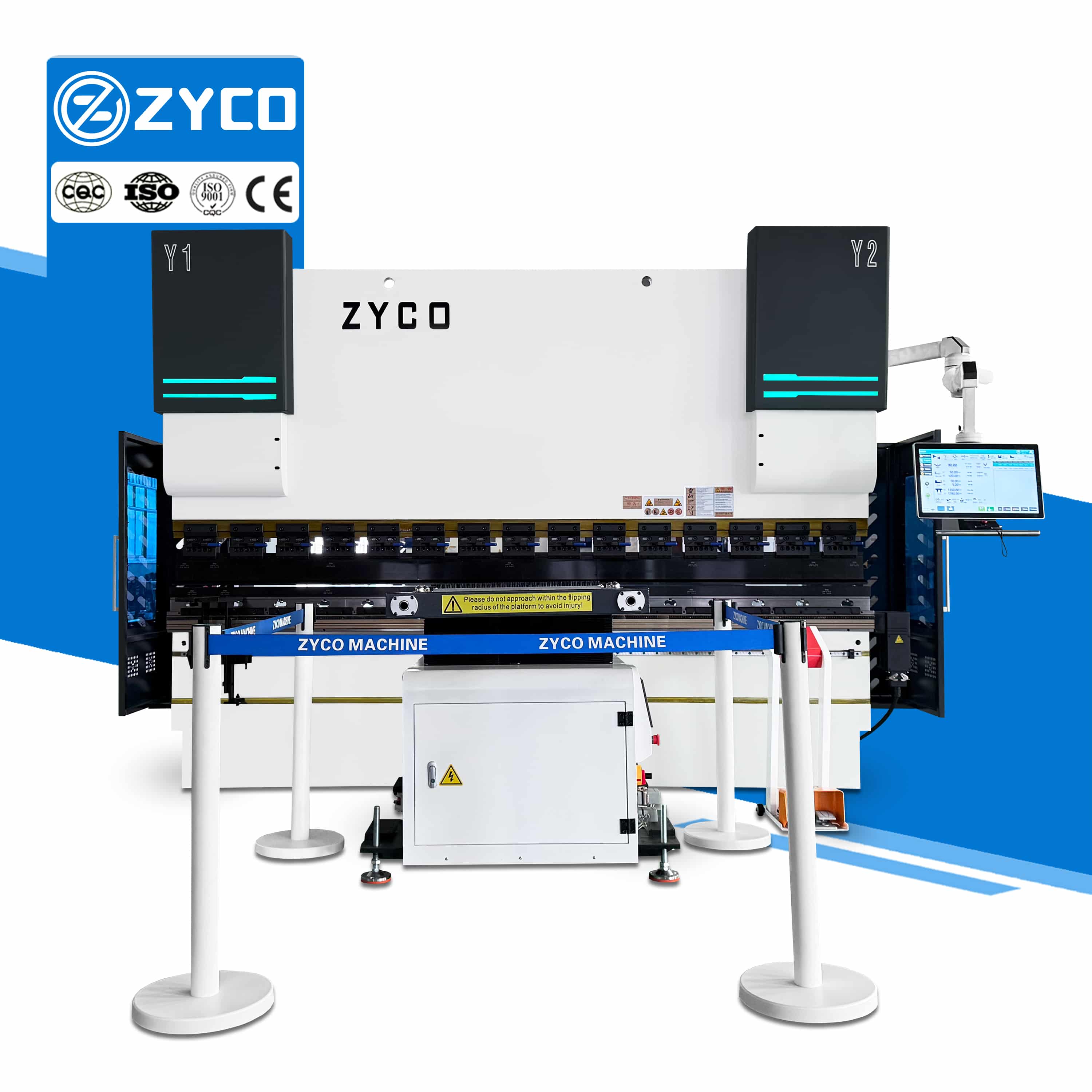

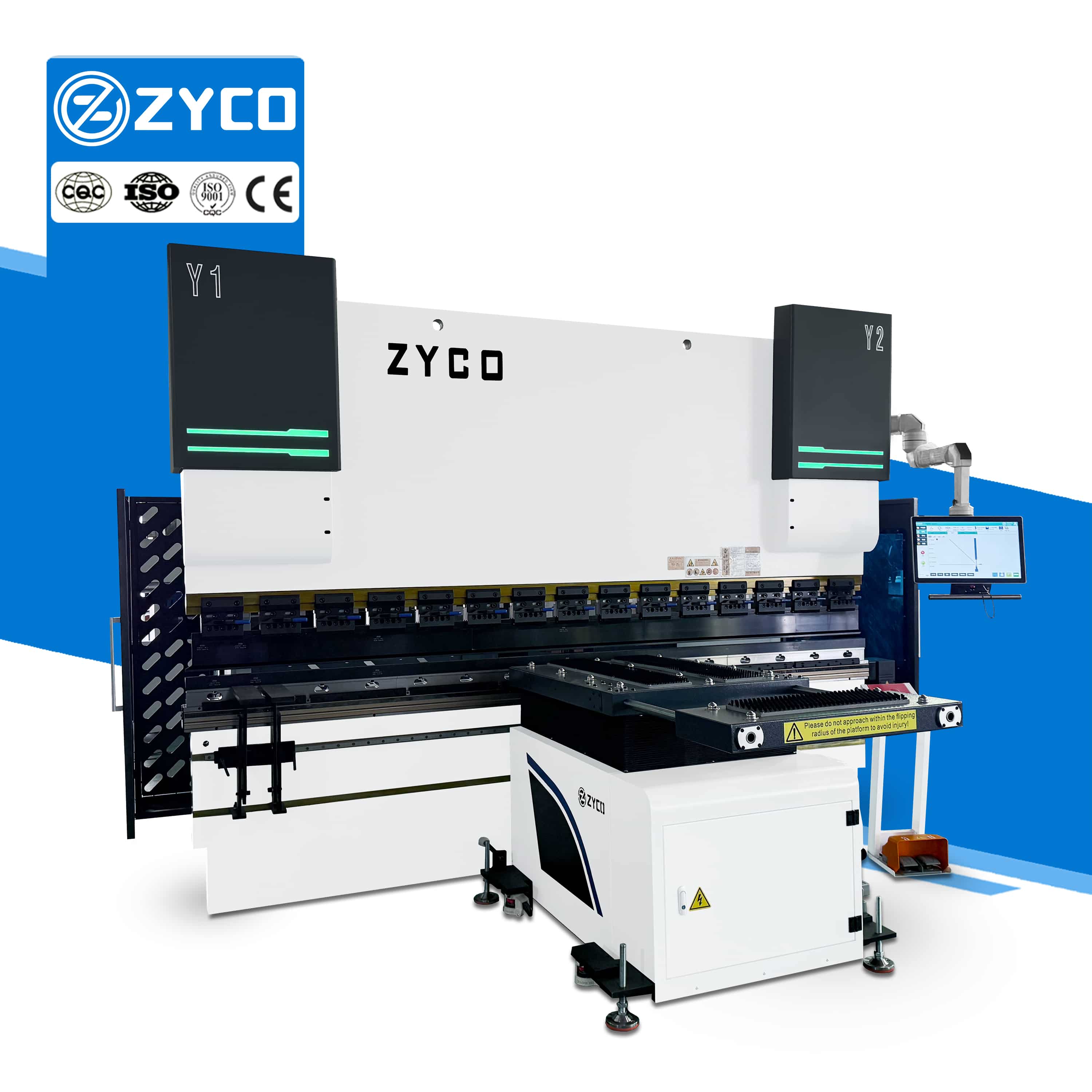

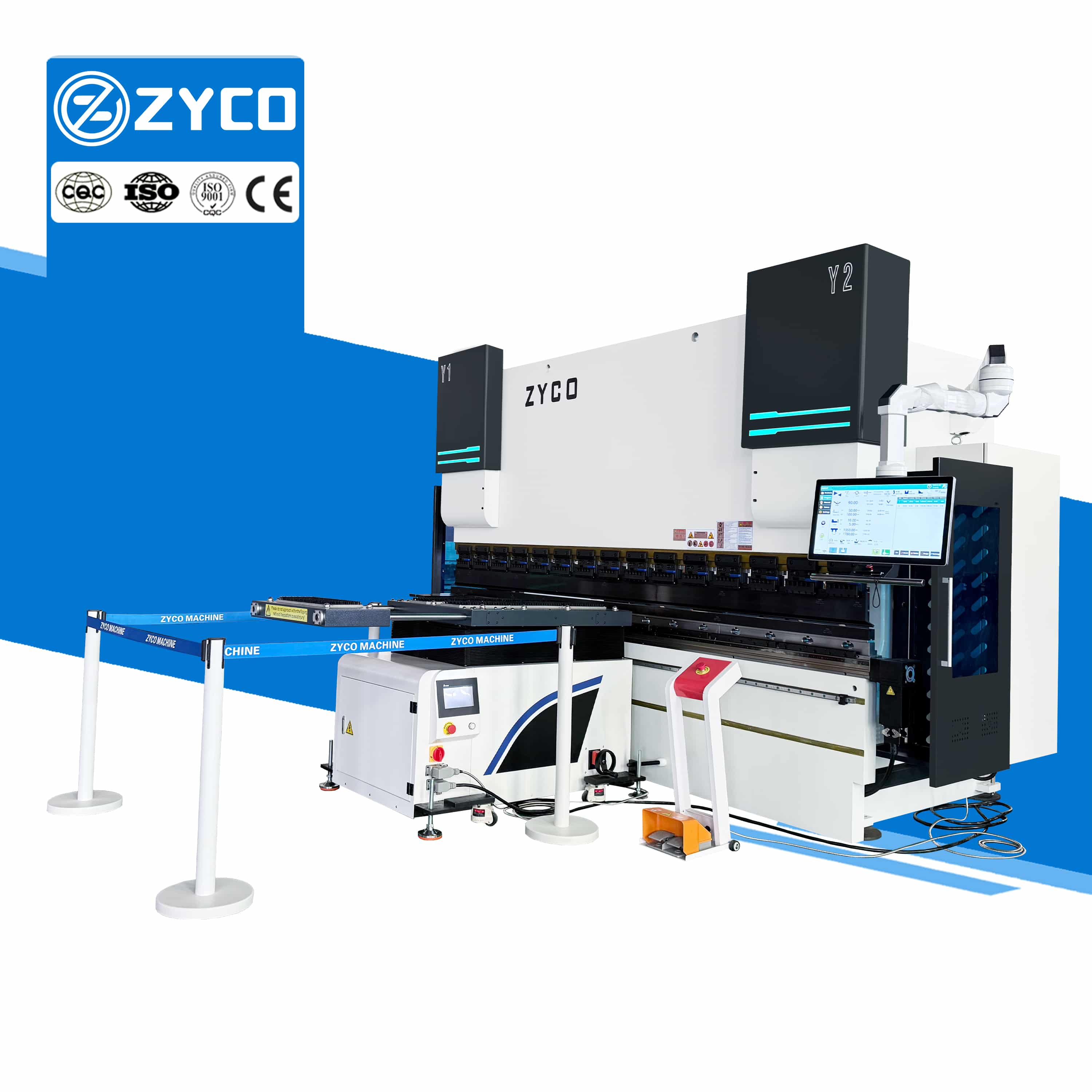

ZYCO High-quality ET18 Electro-hydraulic bending machine High Precision 8+1 8+1 Axis Metal Press Brake For Sell

The E-Touch 18 is a high-performance CNC solution specifically designed for electro-hydraulic synchronous bending machines. This system deeply integrates precision electrical control technology with powerful hydraulic drive advantages. Through modular design, it achieves precise and coordinated management of equipment movements, significantly improving bending accuracy while optimizing production efficiency and simplifying the human-machine interface.

Order(MOQ) :
1
Product Origin :
Nanjing,Jiangsu,China
Weight :
7500kg
Warranty time :
2 years
Automation :
Automatic
Key selling points :
Competitive Price

Inquire Now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

ZYCO

1. The new generation E-Touch electro-hydraulic control system features a clear and intuitive touch-screen control panel. Large function buttons combined with graphical icons make the programming process more convenient and efficient.

2. Standard configuration supports 8+1 axis linkage control (including Y1, Y2, X1, X2, R1, R2, Z1, Z2 axes and automatic deflection compensation).

3. The system integrates an intelligent monitoring and maintenance module, which can provide real-time feedback on equipment operating status, assisting operators in quickly identifying faults and performing maintenance operations, thus improving equipment operational stability.

Control system

The operating interface uses an intuitive graphical icon layout, significantly reducing the programming complexity of multi-process bending and effectively shortening production support time.

Equipped with a 21.5-inch Taiwan-made full-color high-sensitivity touchscreen, supporting multi-touch and swipe operation with a clear display.

The intelligent programming system automatically calculates the optimal bending path and provides interference checking, supporting process simulation before processing.

View More +

Hydraulic system

The core hydraulic valve group uses high-quality BFL brand components, ensuring excellent repeatability and stability during long-term operation.

The hydraulic output pressure is steplessly adjustable according to the workpiece, ensuring ideal bending results for different specifications of sheet metal.

The electro-hydraulic servo synchronous control system has a compact layout, optimized hydraulic cylinder spacing, and excellent anti-eccentric load capacity.

View More +

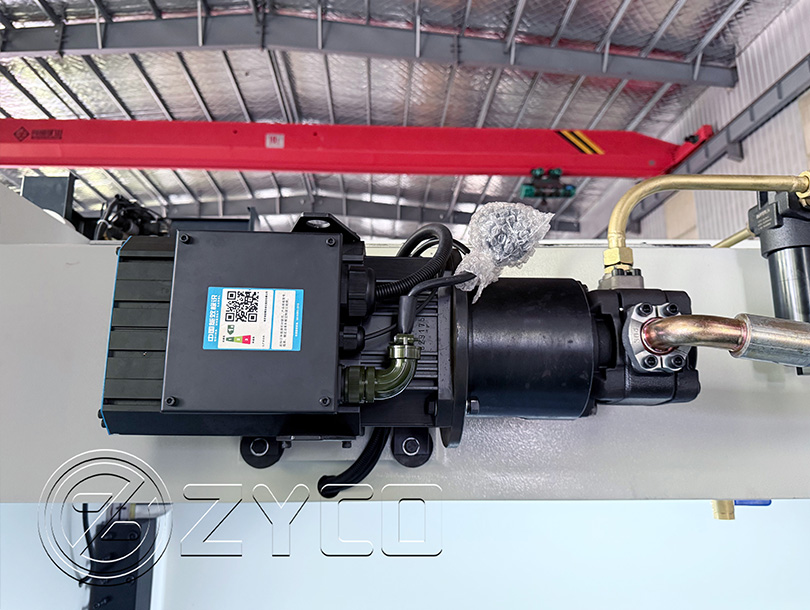

Servo Motor

Uses a Siemens motor, offering stable performance and meeting the requirements of long-term continuous operation.

The equipment operates with low noise and high energy efficiency.

Comprehensive after-sales support is provided to ensure users receive timely and professional technical service during use.

View More +

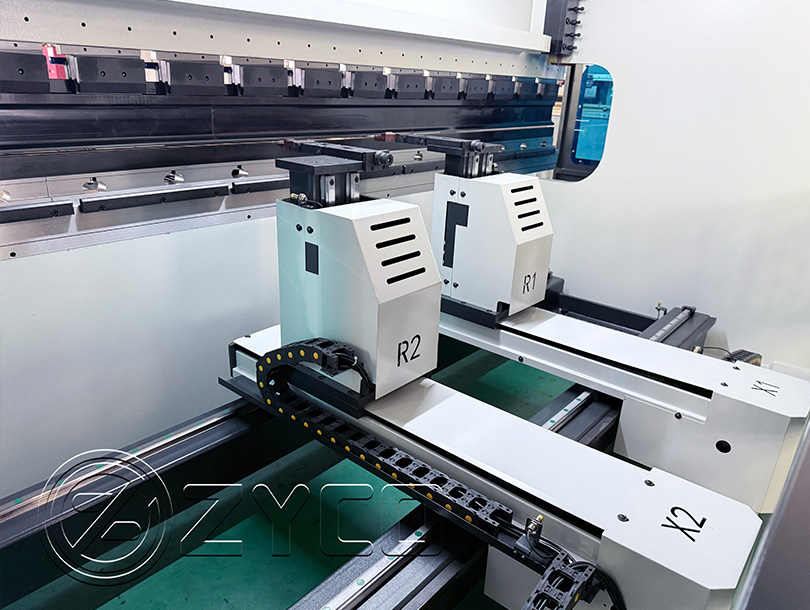

Back gauge

The transmission system uses imported high-precision ball screws and linear guides instead of traditional transmission methods, ensuring long-term stable slider operation.

The machine body structure undergoes high-temperature tempering and aging treatment to effectively release processing stress and prevent accuracy degradation due to deformation after long-term use.

View More +

Scale

The position detection system uses a high-precision BFL brand grating ruler, providing sensitive feedback and accurate data.

High measurement accuracy and rapid response.

The core detection element has excellent anti-interference capabilities and an ultra-long service life.

View More +

Internal Structure Display

For more detailed specifications, please don't hesitate to contact us.

Hydraulic bending machine structure diagram

1.Oil tank 2.Main motor 3.Limit swich 4.Electerical box 5.Stopping finger

6.Back gauge 7.Wall panel 8.Hydraulic oil cylinder 9.Slider 10.CNC system

11.Quick Clamping 12.Upper mold 13.Lower mold 14.Workbench support plate

Processing Workpiece Drawing

Sample display

This page doesn't support show parameter one by one. If other model, pls consult us.
Parameter		Unit	Value
Common Model			63Tx2500	100TX3200	160Tx3200	200Tx4000
Pressure		KN	630	1000	1600	2000
Bending Length		mm	2500	3200	3200	3200
Column Distance		mm	2030	2600	2600	2600
Max Opening Height		mm	E=440	E=480	E=500	E=520
Throat Depth		mm	D=250	D=320	D=320	D=320
Slide Stroke(Y-axis)		mm	170	200	200	220
Slide Moving Speed	No Loading	mm/s	200
	Pressing		12
	Returning		170
Main Motor Power		KW	5.5	7.5	11	15
Machine accuracy	Y slider repeat	mm	≤±0.02
	Y slider positioning	mm	≤±0.02
	X, R back gauge repeat positioning	mm	≤±0.05
Size (LWH)		m	3 × 1.8 × 2.5	3.8 × 1.85 x 2.6	3.8 × 1.85 × 2.65	3.8 × 1.9 × 2.65
Weigth		KG	5500	7500	9500	12000

Partners

Customer photos

Certificate of Honor

FAQ

Q: How to get a accurate quotation from us?

A: Please provide us the details of material, max thickness and max width.

Q: Can you do OEM service?

A: Yes, we can. your design is accepted , your own logo can be used on the machine.

Q: What's the shipping cost from china to your country?

A: We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.

Q: Do you accept LC payment?

A: Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable.

Q: How to operate this machine?

A: Video line of our factory or we send you the video directly.

Q: What about commissioning service?

A: We can offer commissioning service, the buyer need to afford plane tickets.

Q: Do you offer teaching & training?

A: Training at supplier's plant.
