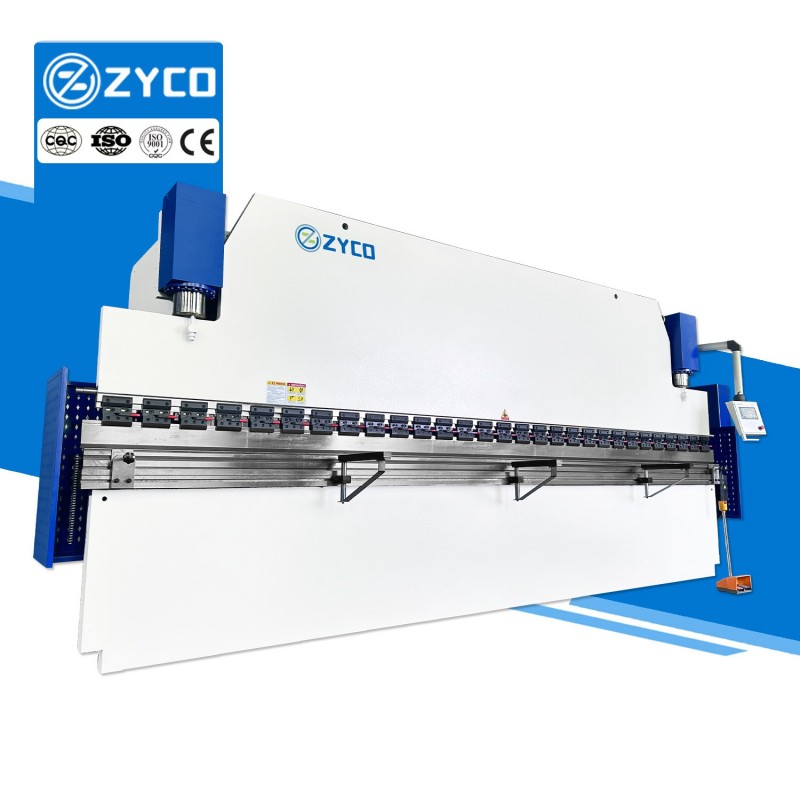

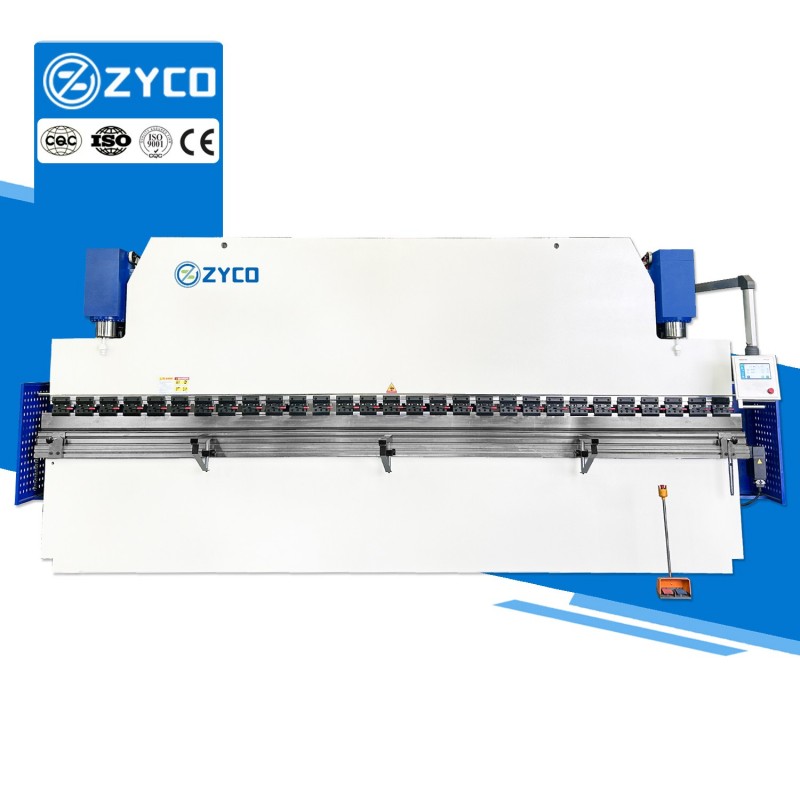

1. Bidirectional high-precision positioning, automatic compensation of lead screw gap, equipped with anti-collision and material withdrawal protection function, which can extend the service life.
2. 10-inch touch screen, support parameter preset and process library call.
3. Support "multi-step programming" to achieve complex shapes such as Z-shaped and U-shaped.
Control system
- Equipped with a high-performance CNC system, it provides powerful computing processing capabilities to ensure millimeter-level precise positioning of each bending action.
- The system supports one-click backup and instant recovery of parameters, which greatly reduces the equipment debugging time and ensures production continuity.
- The device has built-in massive storage space, which can save 500+ independent processing programs, and each program supports flexible settings of up to 40 processes, which can easily cope with diverse production tasks.
View More +
Hydraulic system
- The high-performance hydraulic valve group of Rexroth from Germany is adopted to ensure the system's quick response and precise control, while greatly improving the service life of key components.
- Its intelligent hydraulic system can dynamically adjust the working pressure and easily adapt to the processing requirements of plates of different thicknesses and materials.
View More +
Mechanical compensation
- The high-strength alloy steel compensation module is adopted, and the compensation accuracy of ±0.01mm is achieved through precision CNC machining, which effectively eliminates the deformation of the plate during the bending process and ensures uniform bending angles over the entire length.
- The workbench adopts a multi-stage independent compensation design, which can adjust the local pressure distribution in a targeted manner according to the bending length, plate thickness and material differences.
View More +

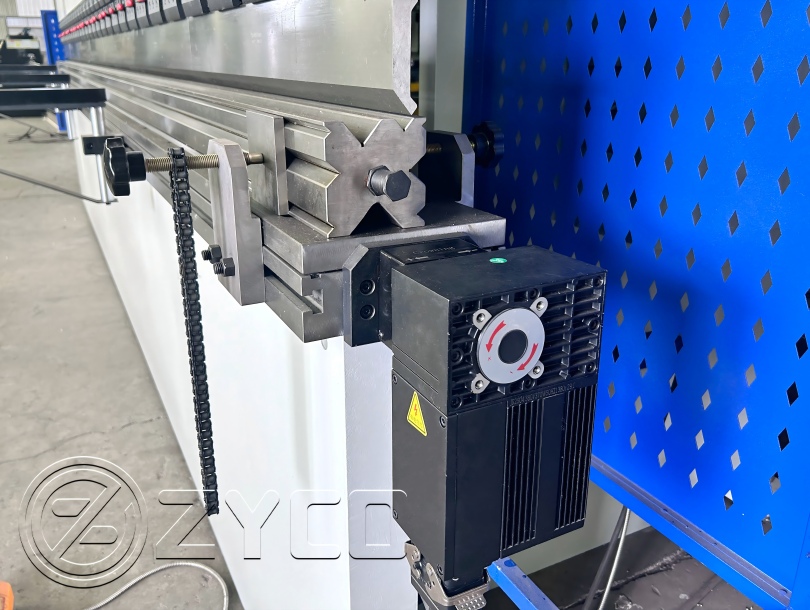

Back gauge
- The imported high-precision ball screw and linear guide are used to replace the traditional transmission structure, so that the positioning accuracy and repetitive consistency of the back gauge can achieve a qualitative leap.
- To ensure long-term stability, we carry out an overall high-temperature tempering process on the back gauge system to significantly eliminate internal stress and enhance the plasticity and structural toughness of the material.
View More +
Oil pump
- The oil pump is cast with high-strength cast iron material, combined with an innovative low-noise structural design, which has excellent tolerance to oil impurities and significantly improves the durability of the equipment.
- The oil pump adopts an optimized gear pump structure based on high-strength cast iron to adapt to complex working conditions, reduce maintenance frequency, and ensure long-term stable operation.
View More +
Internal Structure Display
For more detailed specifications, please don't hesitate to contact us.

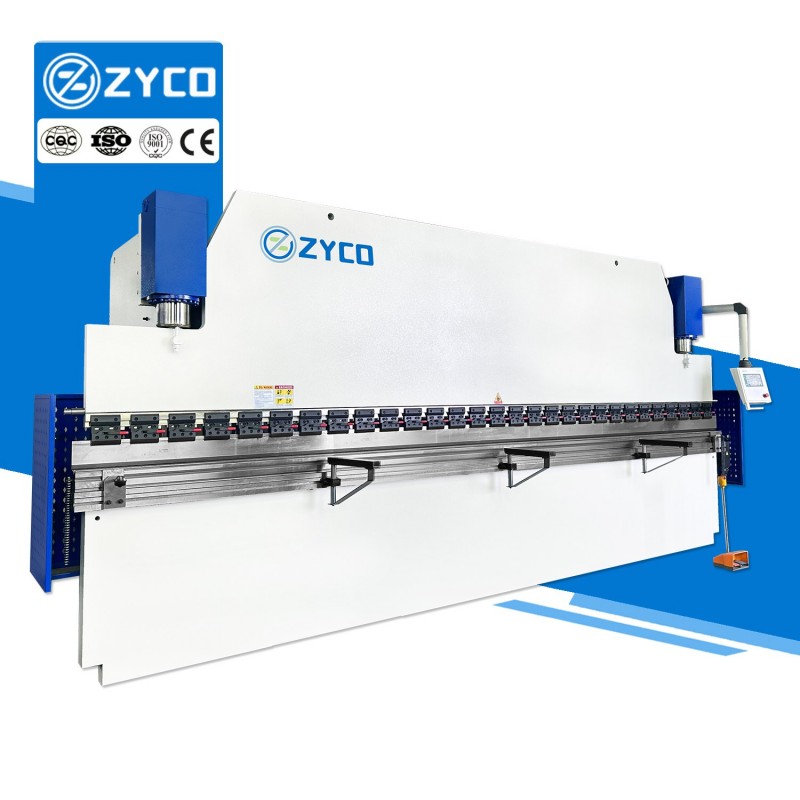

Hydraulic bending machine structure diagram
1.Oil tank 2.Main motor 3.Limit swich 4.Electerical box 5.Stopping finger
6.Back gauge 7.Wall panel 8.Hydraulic oil cylinder 9.Slider 10.CNC system
11.Quick Clamping 12.Upper mold 13.Lower mold 14.Workbench support plate
Processing Workpiece Drawing
Sample display
|
This page doesn't support show parameter one by one. If other model, pls consult us.
|
|
Parameter
|
Unit
|
Value
|
|
Common Model
|
|
63Tx2500
|
100TX3200
|
160Tx3200
|
200Tx4000
|
|
Pressure
|
KN
|
630
|
1000
|
1600
|
2000
|
|
Bending Length
|
mm
|
2500
|
3200
|
3200
|
3200
|
|
Column Distance
|
mm
|
2030
|
2600
|
2600
|
2600
|
|
Max Opening Height
|
mm
|
E=440
|
E=480
|
E=500
|
E=520
|
|
Throat Depth
|
mm
|
D=250
|
D=320
|
D=320
|
D=320
|
|
Slide Stroke(Y-axis)
|
mm
|
170
|
200
|
200
|
220
|
|
Slide Moving Speed
|
No Loading
|
mm/s
|
200
|
|
Pressing
|
12
|
|
Returning
|
170
|
|
Main Motor Power
|
KW
|
5.5
|
7.5
|
11
|
15
|
|
Machine accuracy
|
Y slider repeat
|
mm
|
≤±0.02
|
|
Y slider positioning
|
mm
|
≤±0.02
|
|
X, R back gauge repeat positioning
|
mm
|
≤±0.05
|
|
Size (L*W*H)
|
m
|
3 × 1.8 × 2.5
|
3.8 × 1.85 x 2.6
|
3.8 × 1.85 × 2.65
|
3.8 × 1.9 × 2.65
|
|
Weigth
|
KG
|
5500
|
7500
|
9500
|
12000
|
Partners
Customer photos
Certificate of Honor
Q: How to get a accurate quotation from us?
A: Please provide us the details of material, max thickness and max width.
Q: Can you do OEM service?
A: Yes, we can. your design is accepted , your own logo can be used on the machine.
Q: What's the shipping cost from china to your country?
A: We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.
Q: Do you accept LC payment?
A: Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable.
Q: How to operate this machine?
A: Video line of our factory or we send you the video directly.
Q: What about commissioning service?
A: We can offer commissioning service, the buyer need to afford plane tickets.
Q: Do you offer teaching & training?
A: Training at supplier's plant.
