ZYCO CNC 3-roll plate rolling machine with broad application prospects in the field of metal processing

ZYCO CNC 3-roll plate rolling machine with broad application prospects in the field of metal processing

W11 three-roller plate rolling machine is an NC series plate rolling machine, which is widely used in shipbuilding, boiler, aviation, hydropower, chemical industry, metal structure and machinery manufacturing industries. This machine is suitable for bending and deforming metal plates, and can roll round, arc and conical workpieces within a certain range. The two lower rollers of this model are active rollers that can move horizontally, and the upper roller is a driven roller that can move up and down. The transmission shafts are connected by universal couplings.

Order(MOQ) :
1
Product Origin :
Nanjing,Jiangsu,China
Weight :
6500kg
Warranty time :
2 years
Automation :
Automatic
Key selling points :
High Safety Level

Inquire Now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

ZYCO

1. Compact structure, easy operation and maintenance.

2. Plate rolling machine is suitable for bending and deforming metal plates, and can roll round, arc and conical workpieces within a certain range.

3. Economical and practical, high cost performance.

Electrical cabinet

Adopt Schneider electrical components, superior quality and long life.

Control voltage and frequency, the machine responds quickly and sensitively when running.

The electrical cabinet is equipped with protective devices such as fuses, circuit breakers and fuses to prevent circuit overload or short circuit failure.

View More +

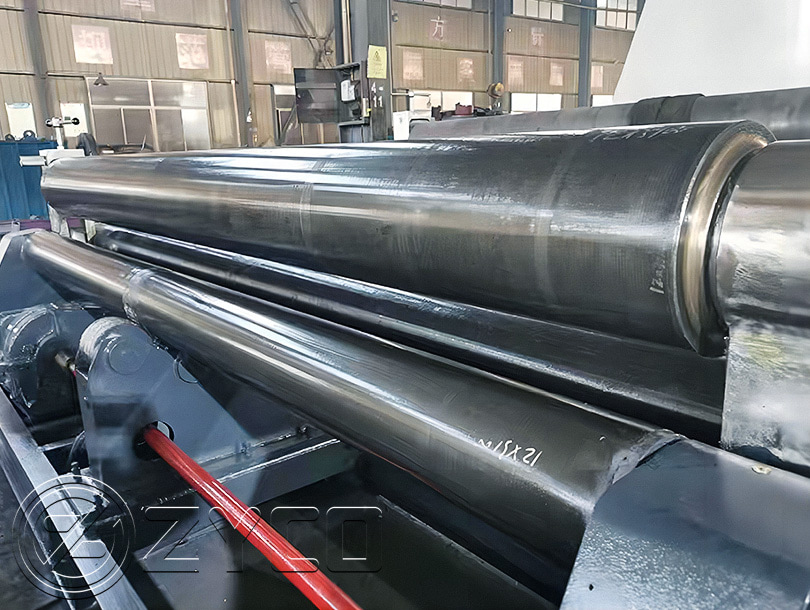

Roller

Special steel has undergone heat treatment process, with extremely high hardness and not easy to deform.

Fine processing to ensure high precision.

Chrome plating can be selected to increase aesthetics and wear resistance.

View More +

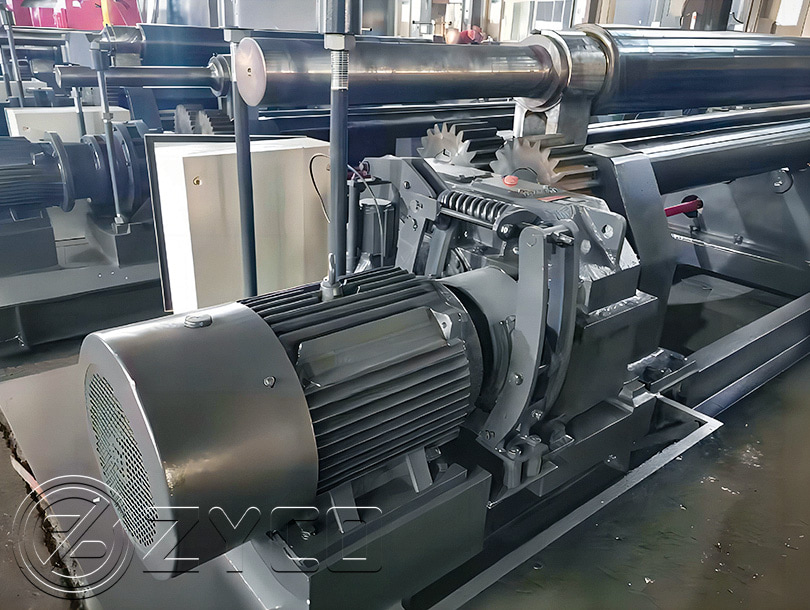

Main motor

Low noise, high energy efficiency, environmental protection and energy saving.

High reliability, low maintenance cost and wide application range.

Simple structure and easy operation.

View More +

Frame

Made of high-strength cast steel or welded structure, it undergoes precision machining and heat treatment to ensure structural strength and long-term durability.

The frame can withstand huge working pressure without deformation, ensuring the stability and durability of the rolling operation.

View More +

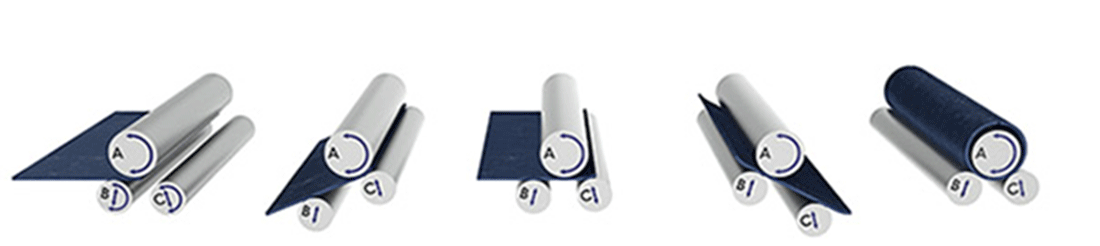

Metal plate rolling machine precision bending

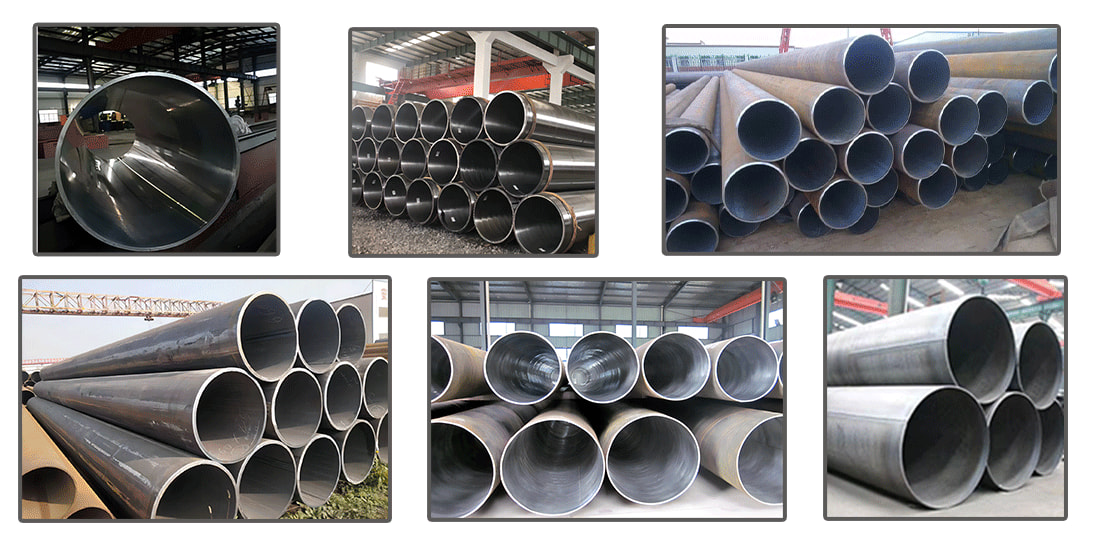

Sample Display

For more detailed specifications, please don't hesitate to contact us.

Model	Max -Bending thickness	Max-bending width	Yield limit	Colling Speed	Top roller diameter	Bottom roller diameter	Central distance	Main power
	(mm)	(mm)	(Mpa)	(m/min)	(mm)	(mm)	(mm)	(Kw)
W11-4*1500	4	1500	245	5	150	140	200	4
W11-4*2000	4	2000	245	5	160	150	220	4
W11-6*1500	6	1500	245	5	160	150	220	4
W11-6*2000	6	2000	245	5	170	160	220	5.5
W11-6*2500	6	2500	245	4.5	180	170	250	5.5
W11-8*1500	8	1500	245	5	170	160	220	5.5
W11-8*2000	8	2000	245	4.5	180	170	250	5.5
W11-8*2500	8	2500	245	4.5	240	180	280	7.5
W11-12*2000	12	2000	245	4.5	240	180	280	7.5
W11-12*2500	12	2500	245	4.5	260	220	320	11
W11-12*3000	12	3000	245	4	280	240	360	11
W11-16*2000	16	2000	245	4.5	260	220	320	11
W11-16*2500	16	2500	245	4	280	240	360	11
W11-16*3000	16	3000	245	4	340	270	440	15
W11-20*2000	20	2000	245	4	280	240	360	11
W11-20*2500	20	2500	245	4	340	270	440	15
W11-25*2000	25	2000	245	4	340	270	440	15
W11-25*2500	25	2500	245	4	370	280	480	22
W11-30*2000	30	2000	245	4	370	280	480	22
W11-30*2500	30	2500	245	4	420	360	550	30
W11-30*3000	30	3000	245	4	450	390	600	30
W11-40*2500	40	2500	245	4	500	400	600	37

Partners

Customer photos

Certificate of Honor

FAQ

Q:Is this CNC plate rolling machine easy to operate?

A: Yes. Compared with traditional manual rolling equipment, this CNC plate rolling machine provides easier operation through automated control of roller movement and positioning.

The CNC system helps reduce manual adjustment errors, improve production efficiency, and achieve more consistent rolling results.

For customers upgrading their existing equipment, we can also provide technical guidance to help ensure smooth operation.

Q: How accurate is this plate rolling machine?

A: This plate rolling machine provides stable forming accuracy through precise roller control, hydraulic operation, and advanced control technology.

The actual accuracy depends on factors such as material characteristics, plate preparation, machine settings, and operating conditions.

For projects with strict requirements on roundness or forming quality, you can share your technical requirements with us, and our engineers will help evaluate the best solution.

Q: What industries use this type of plate rolling machine?

A: This type of plate rolling machine is widely used in industries such as:

Pressure vessel manufacturing

Storage tank production

Shipbuilding

Aviation

Chemical equipment manufacturing

Steel structure fabrication

Energy equipment production

It is suitable for manufacturers who require reliable metal forming performance and stable production efficiency.

If you would like to know whether this machine fits your industry, our professional team can provide suggestions based on your products.

Q: What information should I provide when requesting a quotation?

A: To recommend the correct plate rolling machine and provide an accurate quotation, customers usually need to provide:

Plate thickness

Plate width

Material type

Minimum rolling diameter

Product drawings (if available)

Production requirements

With this information, we can recommend the most suitable machine configuration instead of providing a general solution.

Q: How should I maintain this hydraulic plate rolling machine?

Regular maintenance includes checking hydraulic oil levels, inspecting hydraulic components, lubricating moving parts, checking roller alignment, and maintaining the electrical control system.

Proper maintenance helps extend machine service life, reduce downtime, and maintain stable rolling performance.

If you need more detailed maintenance guidance, our technical team can provide professional support.

Q: Why choose a CNC hydraulic plate rolling machine instead of a traditional rolling machine?

A: A CNC hydraulic plate rolling machine provides higher efficiency, better repeatability, and more stable forming quality compared with traditional manual equipment.

It is especially suitable for manufacturers who require consistent production results, reduced manual operation, and improved processing efficiency.

If you are planning to upgrade your production line, we can help recommend a suitable machine based on your current manufacturing process.
